Removal (Front)

  1. Disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic Adjuster .
  2. Remove the park brake pedal. See PARK BRAKE PEDAL ASSEMBLY . Roll the carpet back to access cable grommet. See Fig 1.
  3. Raise and support the vehicle. Disengage the grommet and the cable from the floor pan. See Fig 2. Disconnect the front cable from the rear cable. Remove the cable from the body mount by depressing the retaining tabs. Remove the cable.
Fig 1: Locating Cable Grommet (Front)
G00303339Courtesy of GENERAL MOTORS CORP.

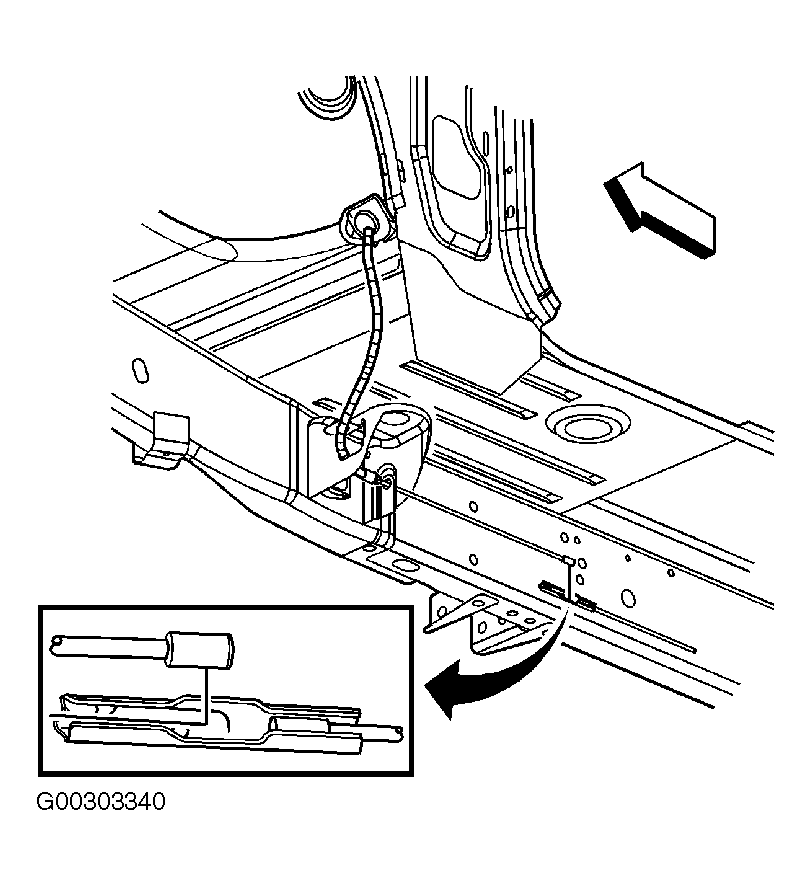

Fig 2: Disengaging/Engaging Grommet & Cable (Front)
G00303340Courtesy of GENERAL MOTORS CORP.
