Removal (Front)
- Inspect the fluid level in the brake master cylinder reservoir. If the brake fluid level is midway between the maximum-full point and the minimum allowable level, no brake fluid needs to be removed from the reservoir before proceeding.
- If the brake fluid level is higher than midway between the maximum-full point and the minimum allowable level, remove brake fluid to the midway point before proceeding. Raise and support the vehicle. Remove the tire and wheel assembly.

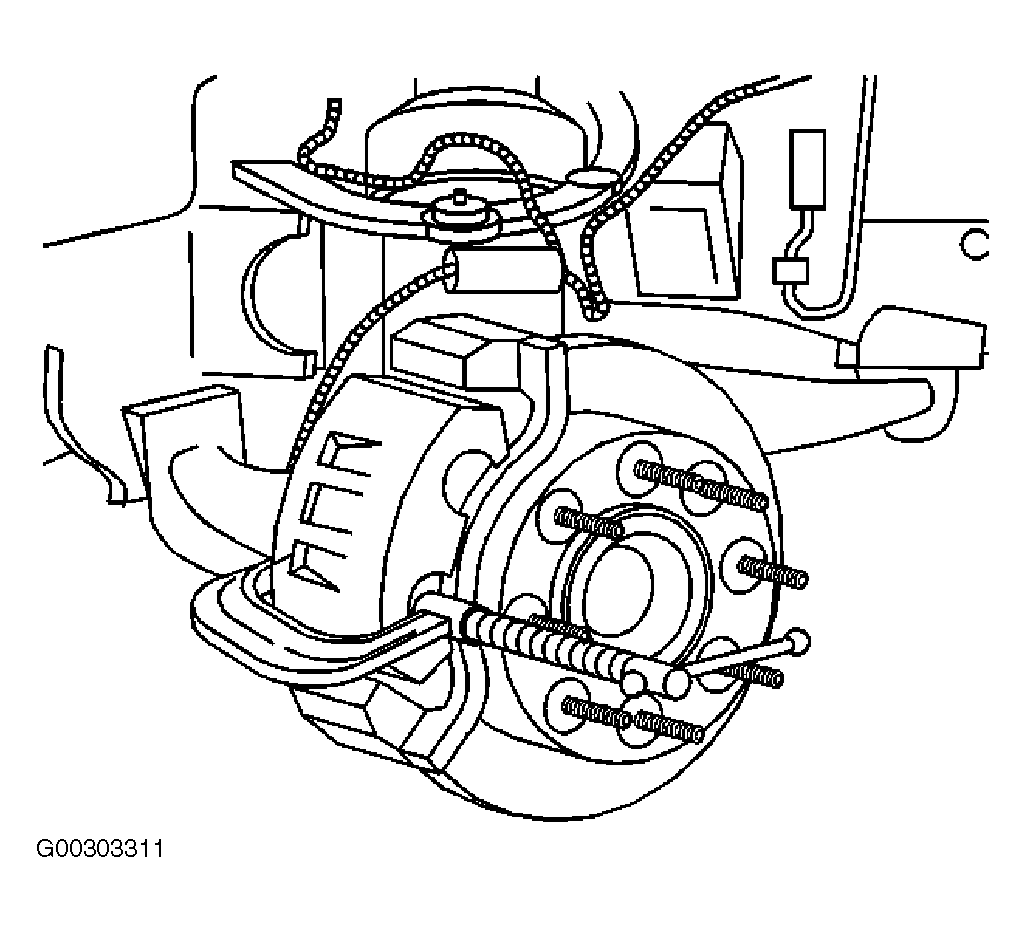

- Compress the brake caliper pistons. Install a large C-clamp over the top of the caliper housing and against the back of the outboard pad. See Fig 1. Slowly tighten the C-clamp until the pistons are pushed completely into the caliper bores. Remove the C-clamp from the caliper.

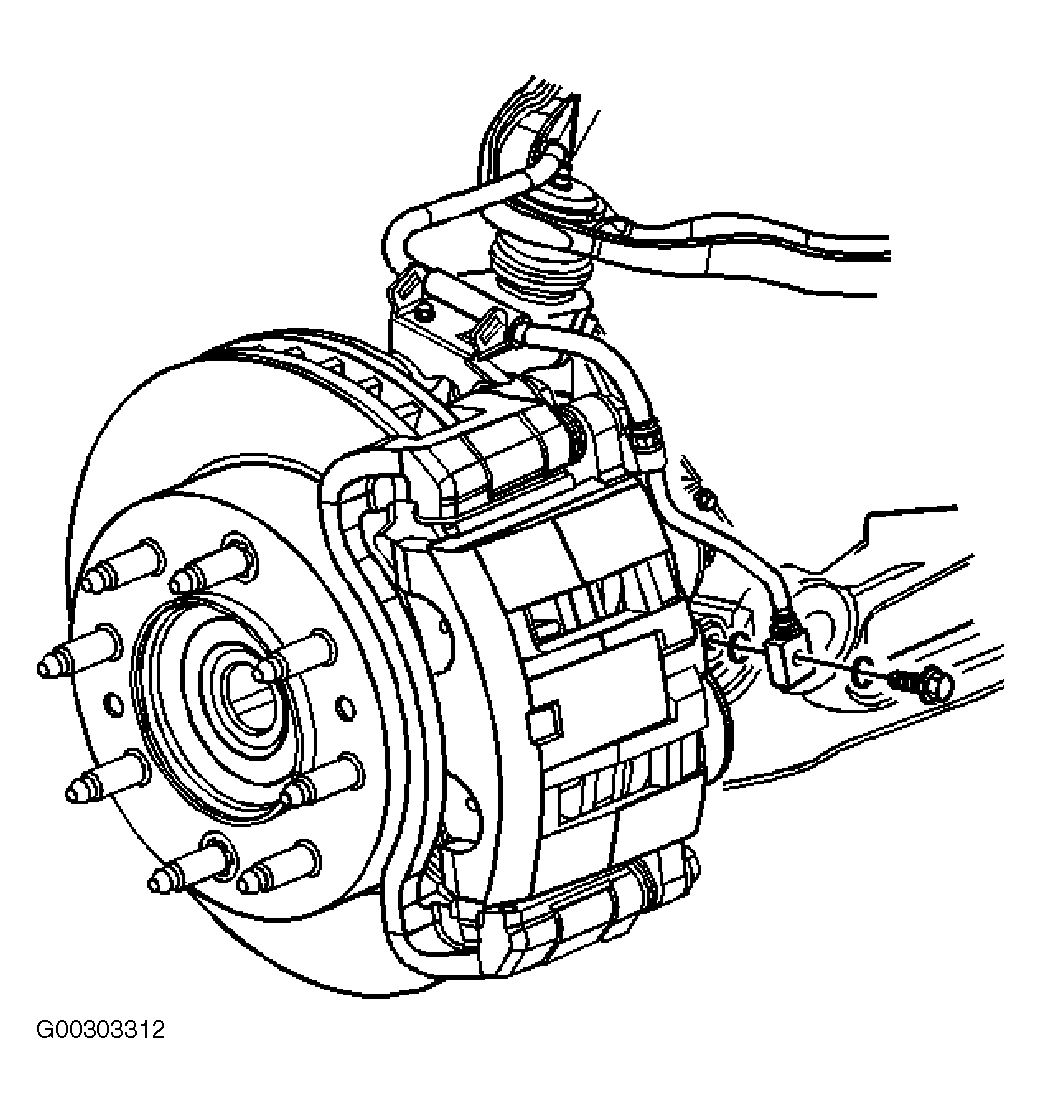

- Clean all dirt and foreign material from the brake hose end. Remove the brake hose to caliper bolt from the brake caliper. See Fig 2. Remove and discard the 2 copper brake hose gaskets. These gaskets may be stuck to the brake caliper housing or the brake hose end. Remove the brake hose from the caliper.

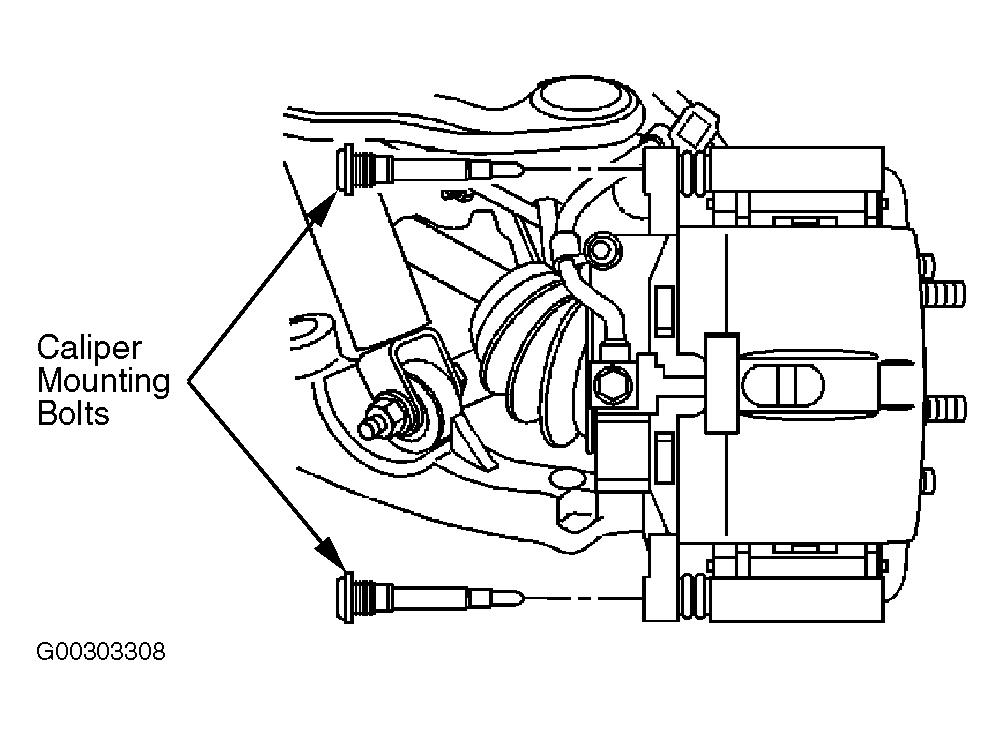

- Remove the 2 brake caliper mounting bolts. See Figure. Remove the brake caliper from the brake caliper mounting bracket.
NOTE:
Install a rubber cap or plug to the exposed brake pipe fitting end to prevent brake fluid loss and contamination.
CAUTION:
DO NOT depress the brake pedal with the brake rotors/calipers and/or the brake drums removed. Damage to the brake system may result. If brake system damage occurs and is not repaired, vehicle damage and/or personal injury or death may result.
