Removal (Front)

  1. Remove the caliper from the mounting bracket and support the caliper with heavy mechanic's wire or equivalent. DO NOT disconnect the hydraulic brake flexible hose from the caliper.
  2. Remove the brake pads. See BRAKE PADS . Remove the anti-rattle clips from the brake caliper bracket. Remove the brake caliper bracket mounting bolts. See Fig 1. Remove the brake caliper bracket.
  3. Remove any contaminants or foreign material from the inside ends of the brake caliper bracket. Clean the mounting surface and threads of the brake caliper bracket.

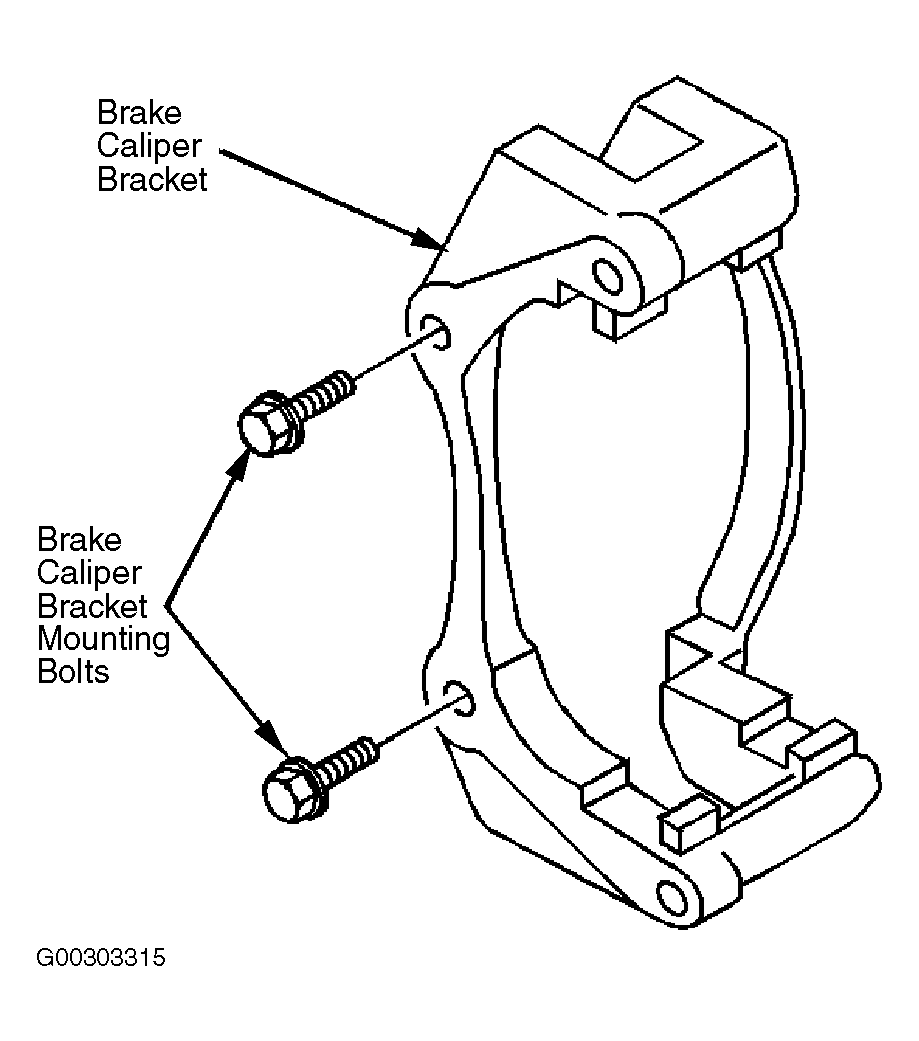

Fig 1: Removing/Installing Caliper Bracket Mounting Bolts (Front & Rear)
G00303315Courtesy of GENERAL MOTORS CORP.
