Shift Interlock Solenoid: Service and Repair

AUTOMATIC TRANSMISSION SHIFT LOCK ACTUATOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the console.

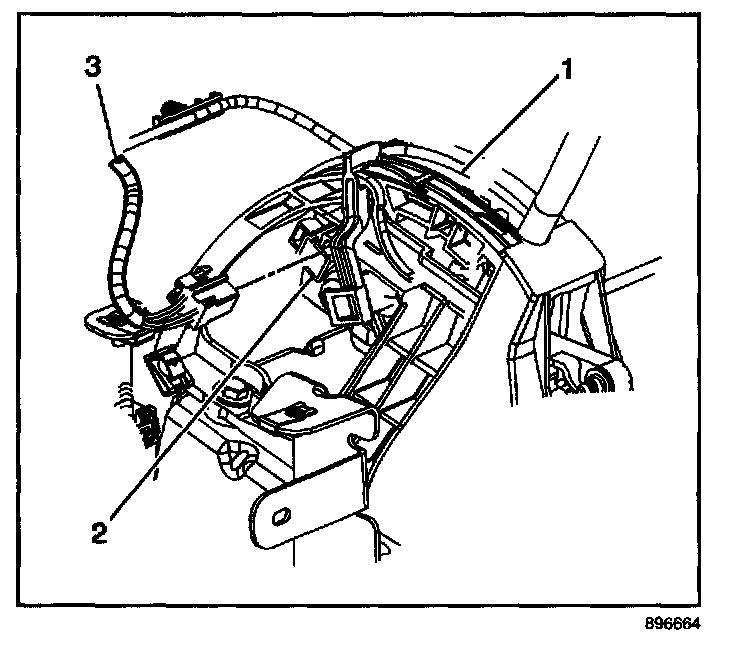

2. Disconnect the Shift Lock Actuator electrical connector (3).
3. Remove the Shift Lock Actuator fasteners and remove Actuator (2).

INSTALLATION PROCEDURE

NOTE: Refer to Fastener Notice in Service Precautions.

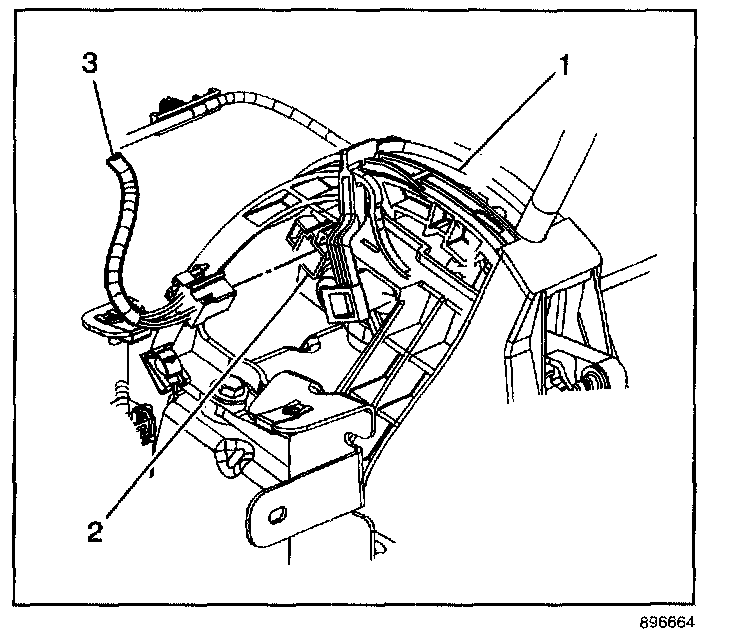

1. Install the Shift Lock Actuator onto the shift selector and install fasteners (2).

Tighten
Tighten the shift lock actuator fasteners to 2 N.m (18 lb in).

2. Connect the electrical connector (3).




3. Install the console.
