Electronic Suspension Switch Replacement

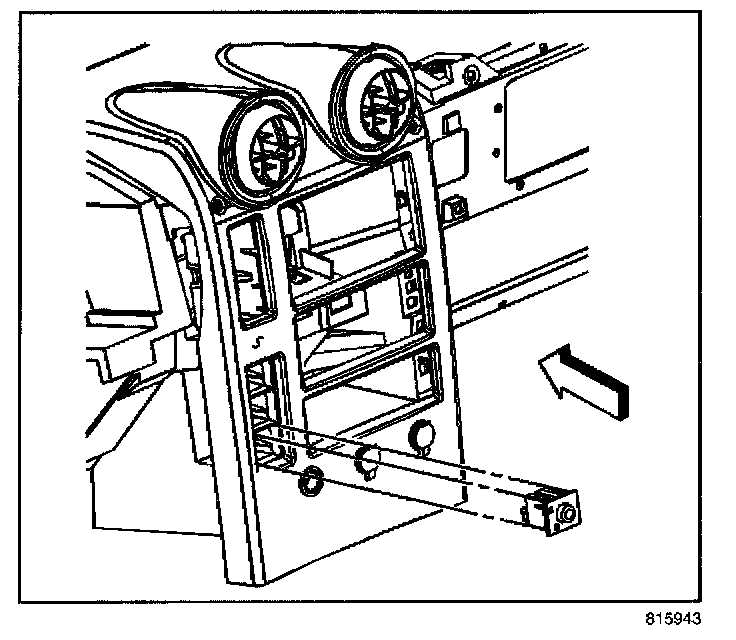

ELECTRONIC SUSPENSION SWITCH REPLACEMENTREMOVAL PROCEDURE
1. Remove the instrument panel trim plate bezel.
2. Remove the switch recepticle screws.
3. Pull the switch recepticle from the instrument panel and disconnect the electrical connectors from the switch.
4. Remove the switch from the recepticle.

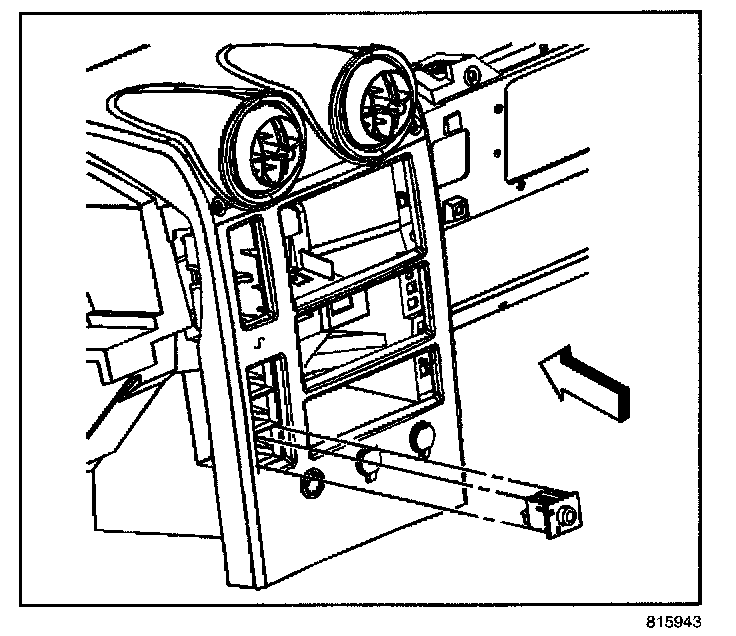

INSTALLATION PROCEDURE
1. Install the switch to the recepticle.
2. Connect the electrical connector to the switch. Install the switch recepticle to the instrument panel.
NOTE: Fastener Notice in Service Precautions.
3. Install the switch recepticle screws.
Tighten
Tighten the screws to 12 N.m (106 lb in).
4. Install the instrument panel trim plate bezel.
