Air Bag Deactivation Switch: Service and Repair

INFLATABLE RESTRAINT INSTRUMENT PANEL (LIP) MODULE DISABLE SWITCH REPLACEMENT

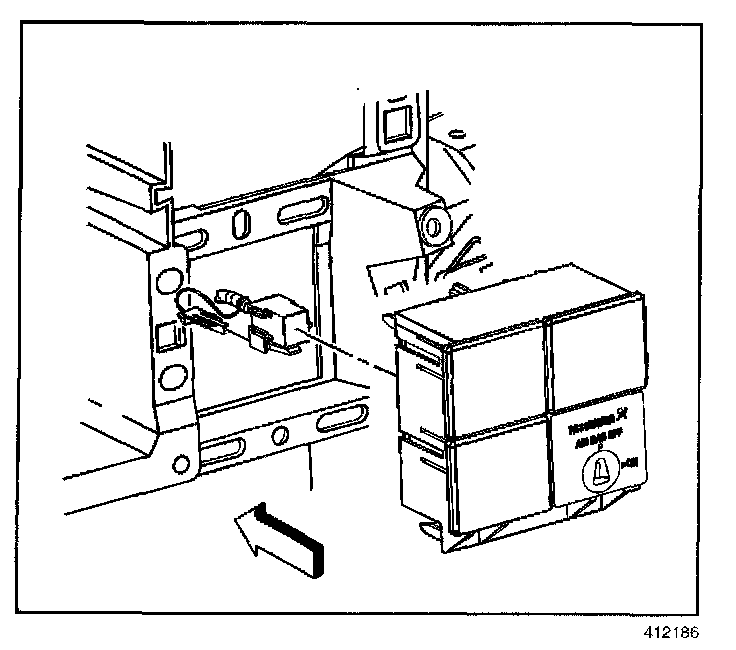

REMOVAL PROCEDURE

CAUTION: Refer to SIR Caution in Service Precautions.




1. Remove the instrument panel trim bezel.
2. Remove the I/P module switch from the lower right opening of the switch plate panel.
3. Disconnect the I/P module switch electrical connector.

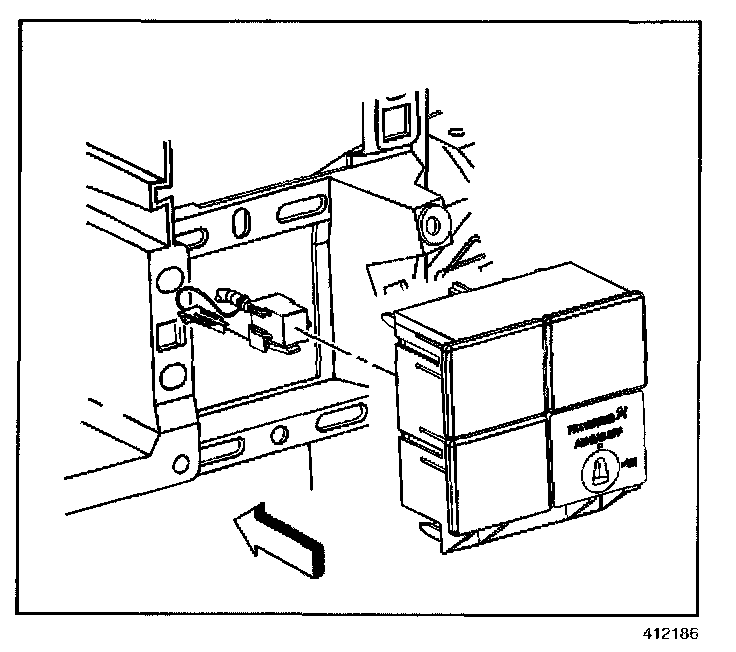

INSTALLATION PROCEDURE




1. Connect the I/P module switch electrical connector.
2. Install the I/P module switch into the lower right opening of the switch plate panel.
3. Install the instrument panel trim bezel.
