Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Dimmer Switch >> Diagrams

Dimmer Switch: Diagrams

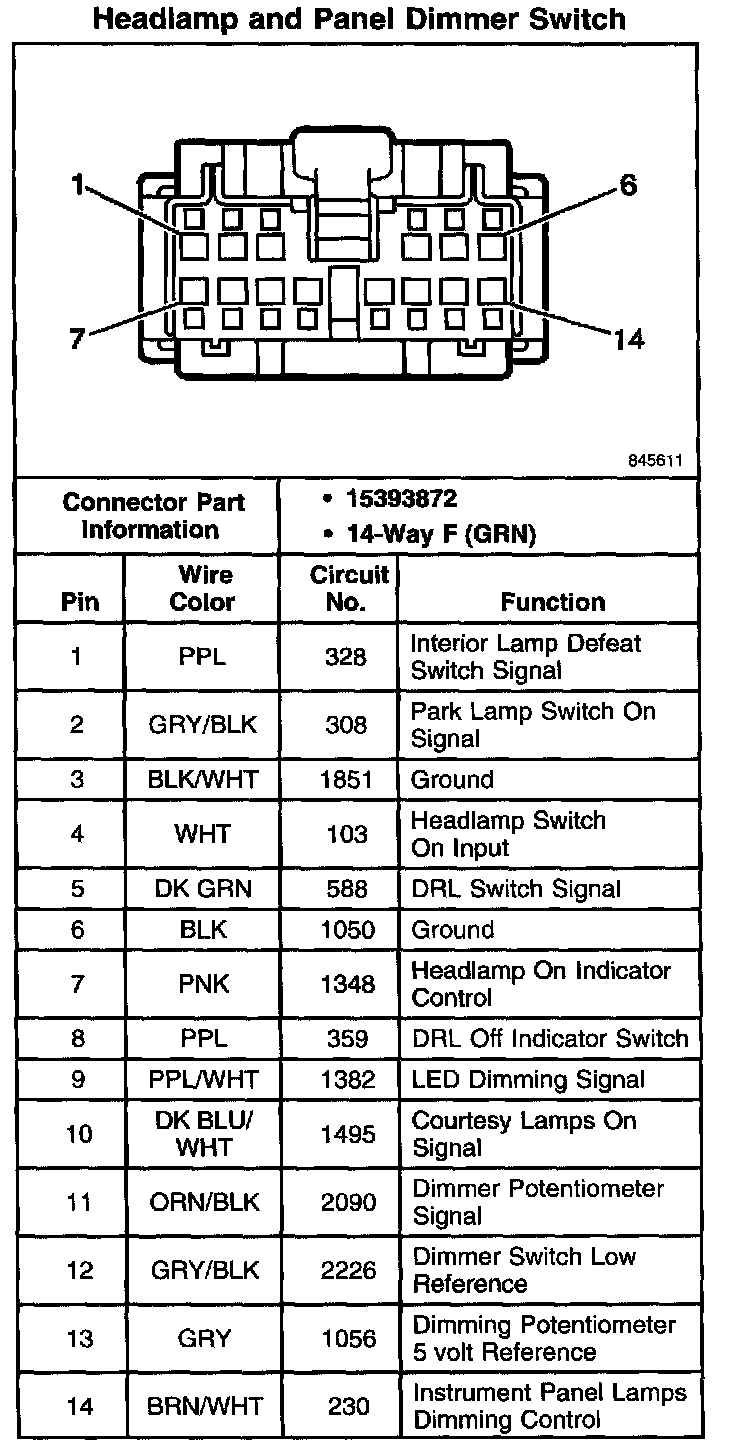

Headlamp And Panel Dimmer Switch:
