Seat Bolster/Lumbar Switch
Seat Bolster/Lumbar Switch

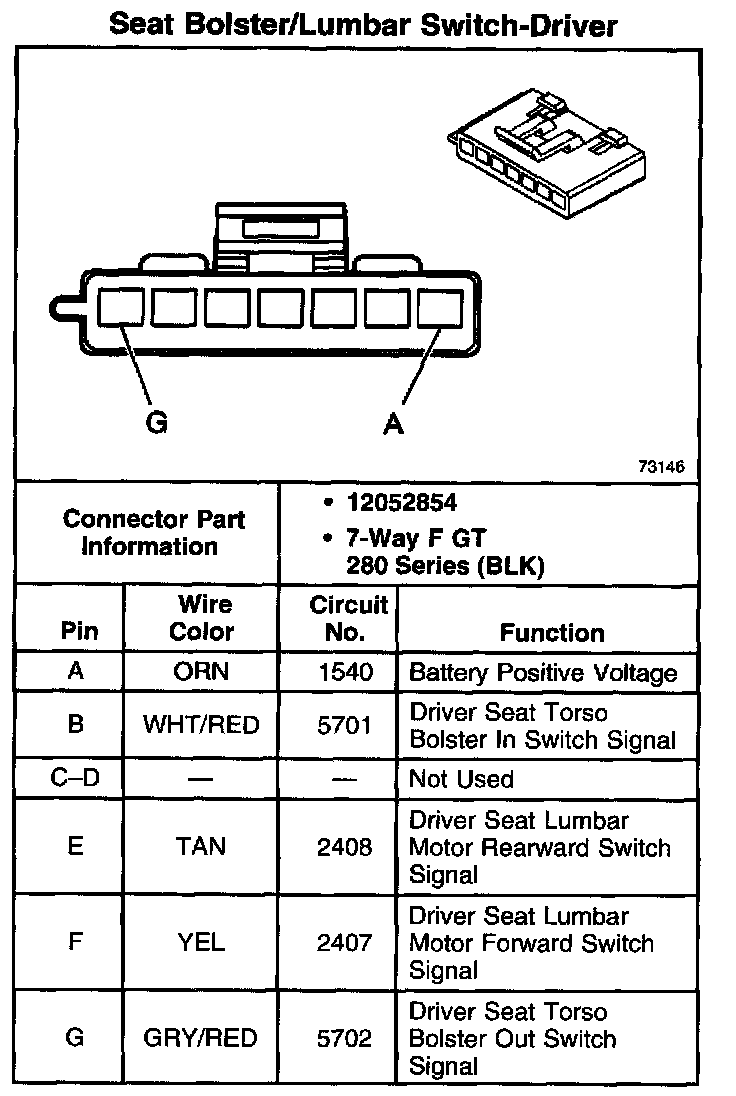

Seat Bolster/Lumbar Switch - Driver:

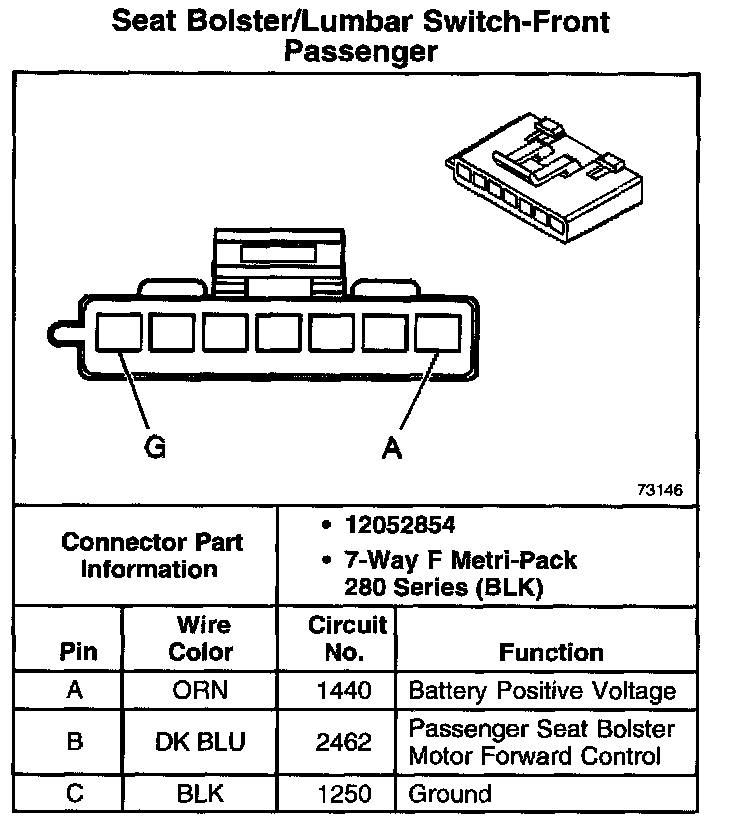

Seat Bolster/Lumbar Switch - Front Passenger Part 1:

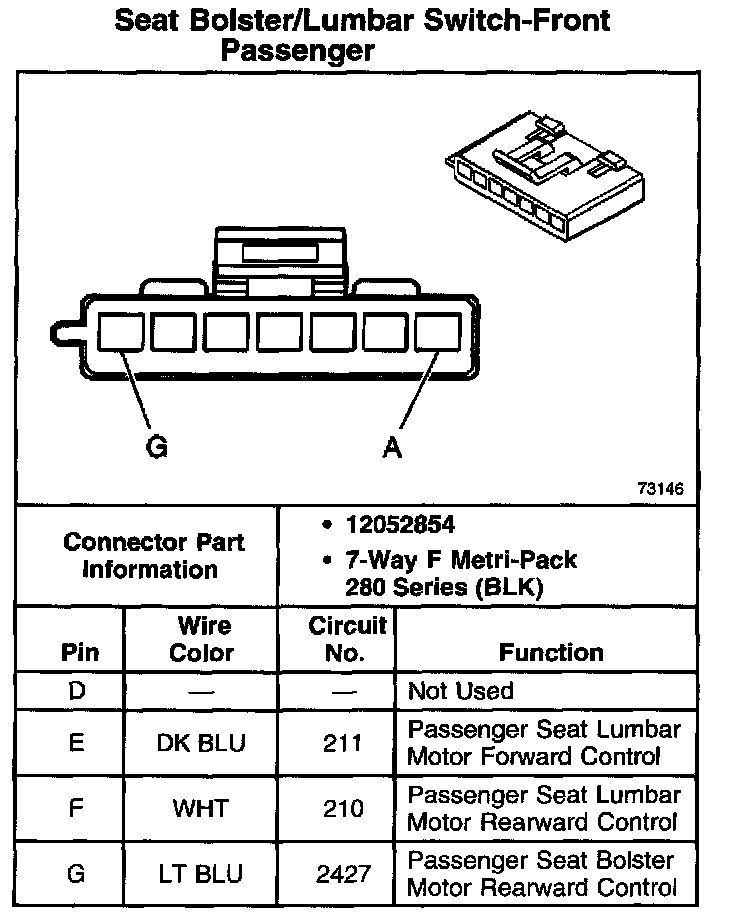

Seat Bolster/Lumbar Switch - Front Passenger Part 2:
