Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power and Ground Distribution >> Multiple Junction Connector >> C420 - C900 >> C420 Body Harness to Lift Gate Jumper Harness

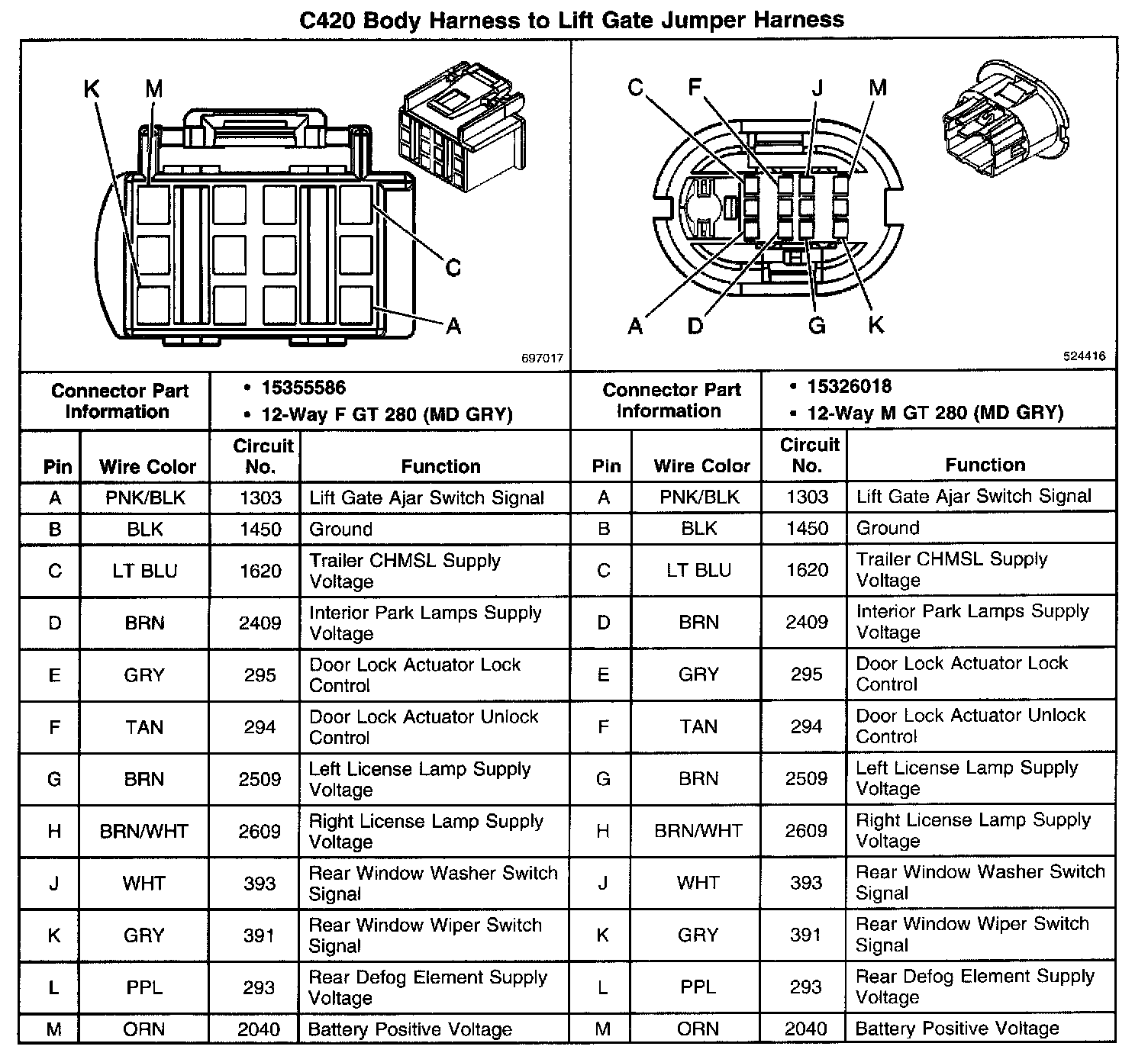

C420 Body Harness to Lift Gate Jumper Harness

C420 Body Harness To Lift Gate Jumper Harness:
