C376 Body Harness to Passenger Seat Harness
C376 Body Harness to Passenger Seat Harness

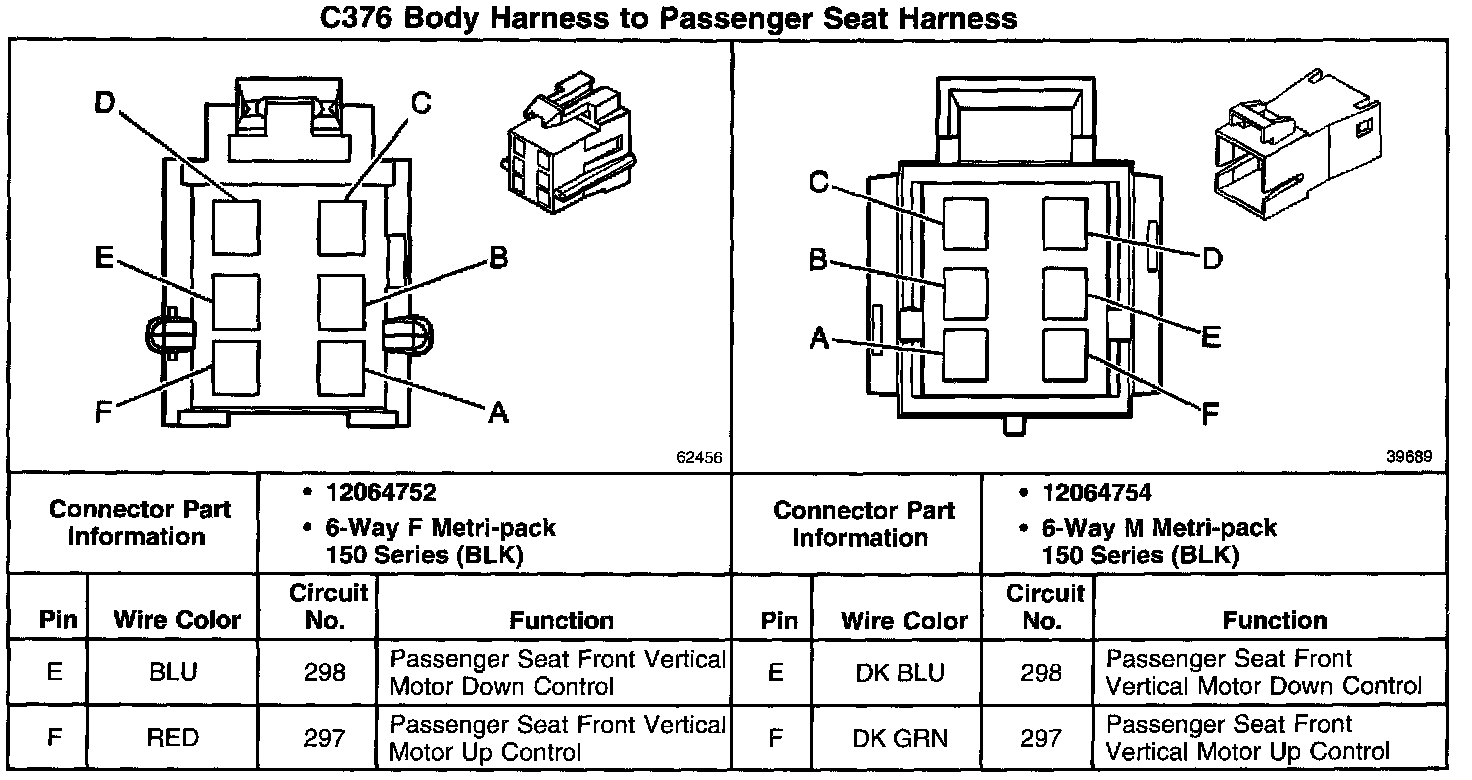

C376 Body Harness To Passenger Seat Harness Part 1:

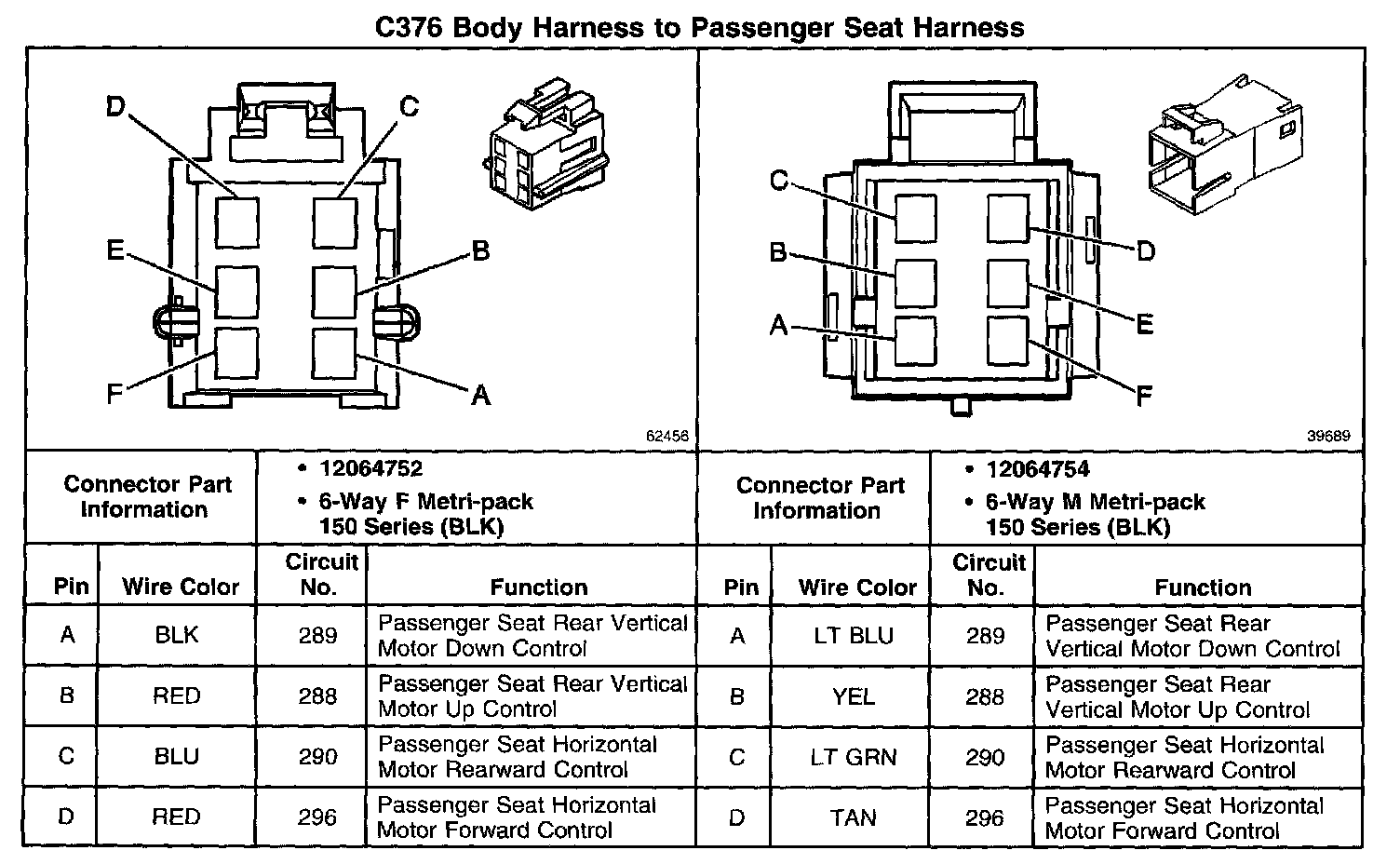

C376 Body Harness To Passenger Seat Harness Part 2:
