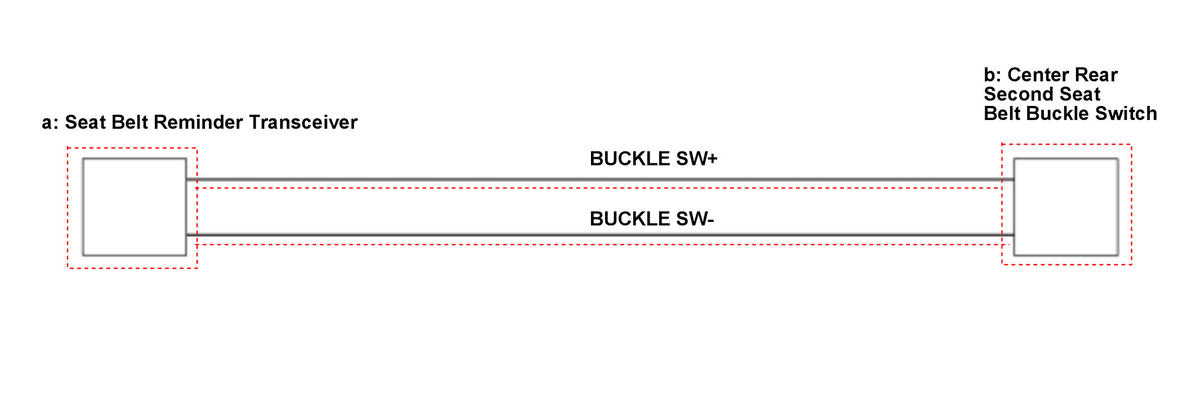

| a |
Seat Belt Reminder Transceiver |
Check the installation condition |
| Check the battery contact terminals for dirt, debris, or corrosion |
| Check the battery is not installed backwards |
| Replace the seat belt reminder transceiver battery |
| Replace the seat belt reminder transceiver |
| - |
Harness |
Check connector connection condition (soft-set or not set) |
| b |
Center Rear Second Seat Belt Buckle Switch |
Center Rear Second Seat Belt Buckle Switch Inspection |
| - |
Center Rear Second Seat |
Check irregular seat installed |
| If seat is installed from another vehicle, return the original seat or perform pairing |
