Climate Control System Component Location Index

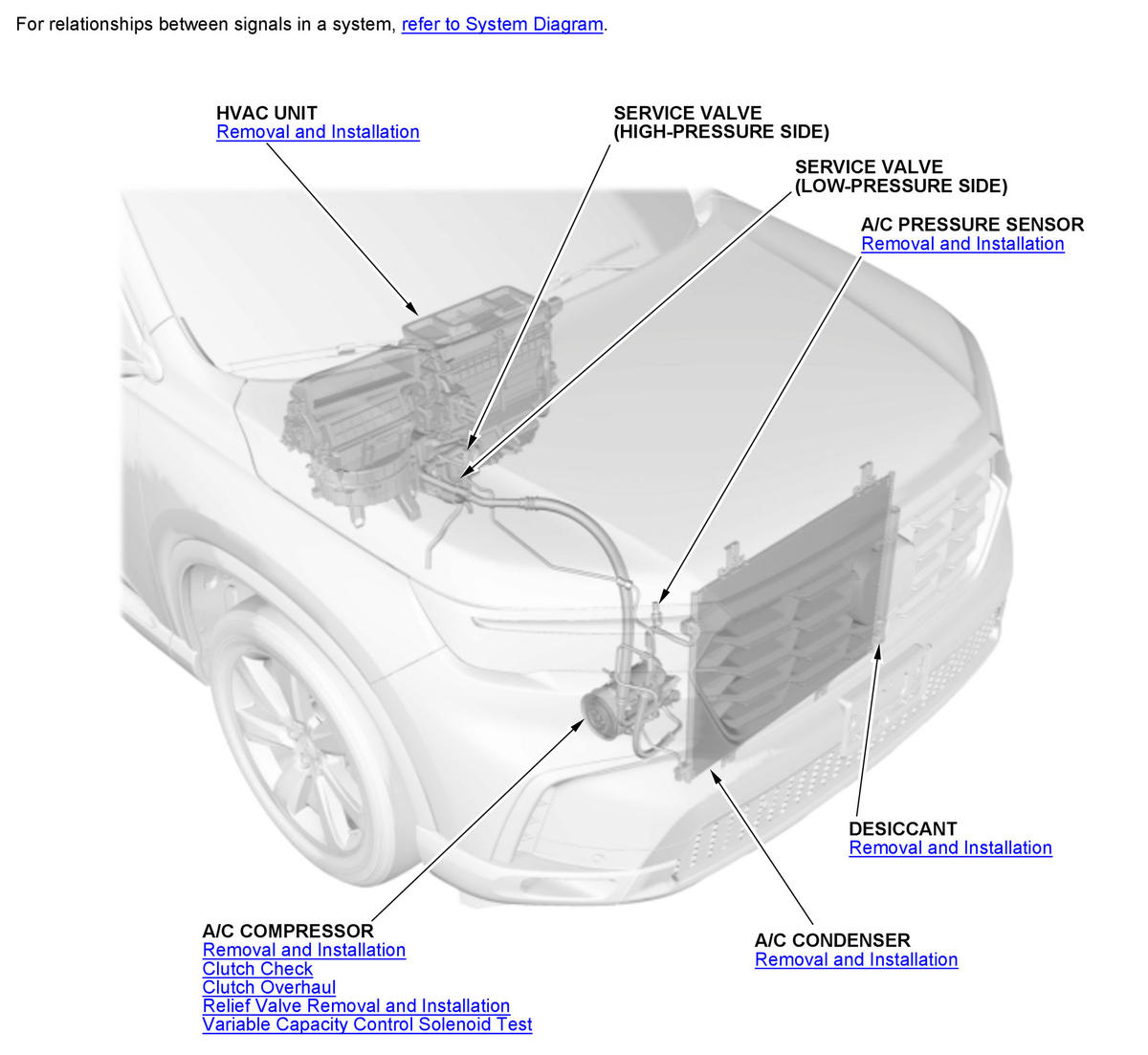

GHH579527

Courtesy of HONDA, U.S.A., INC.

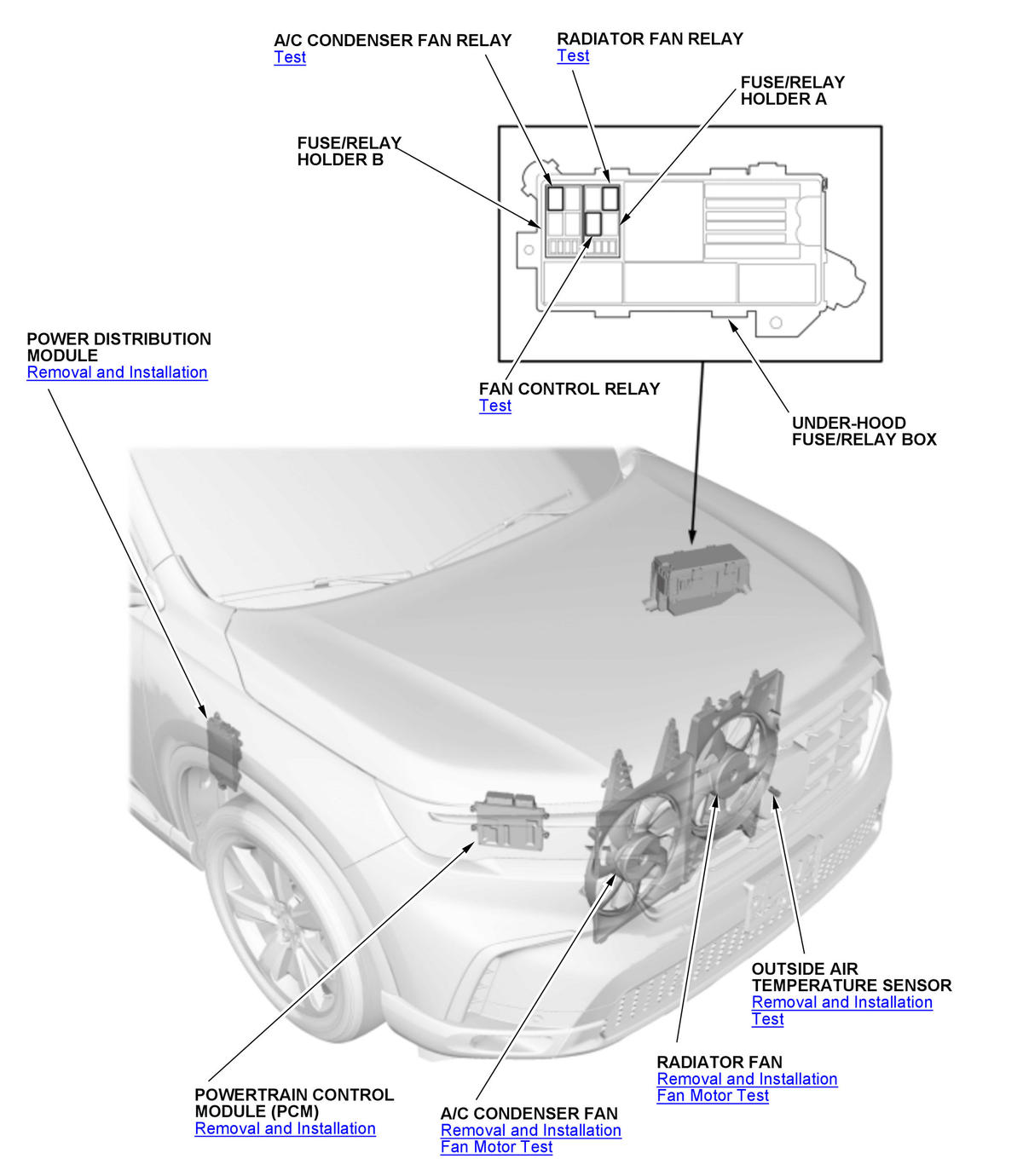

GHH579528

Courtesy of HONDA, U.S.A., INC.

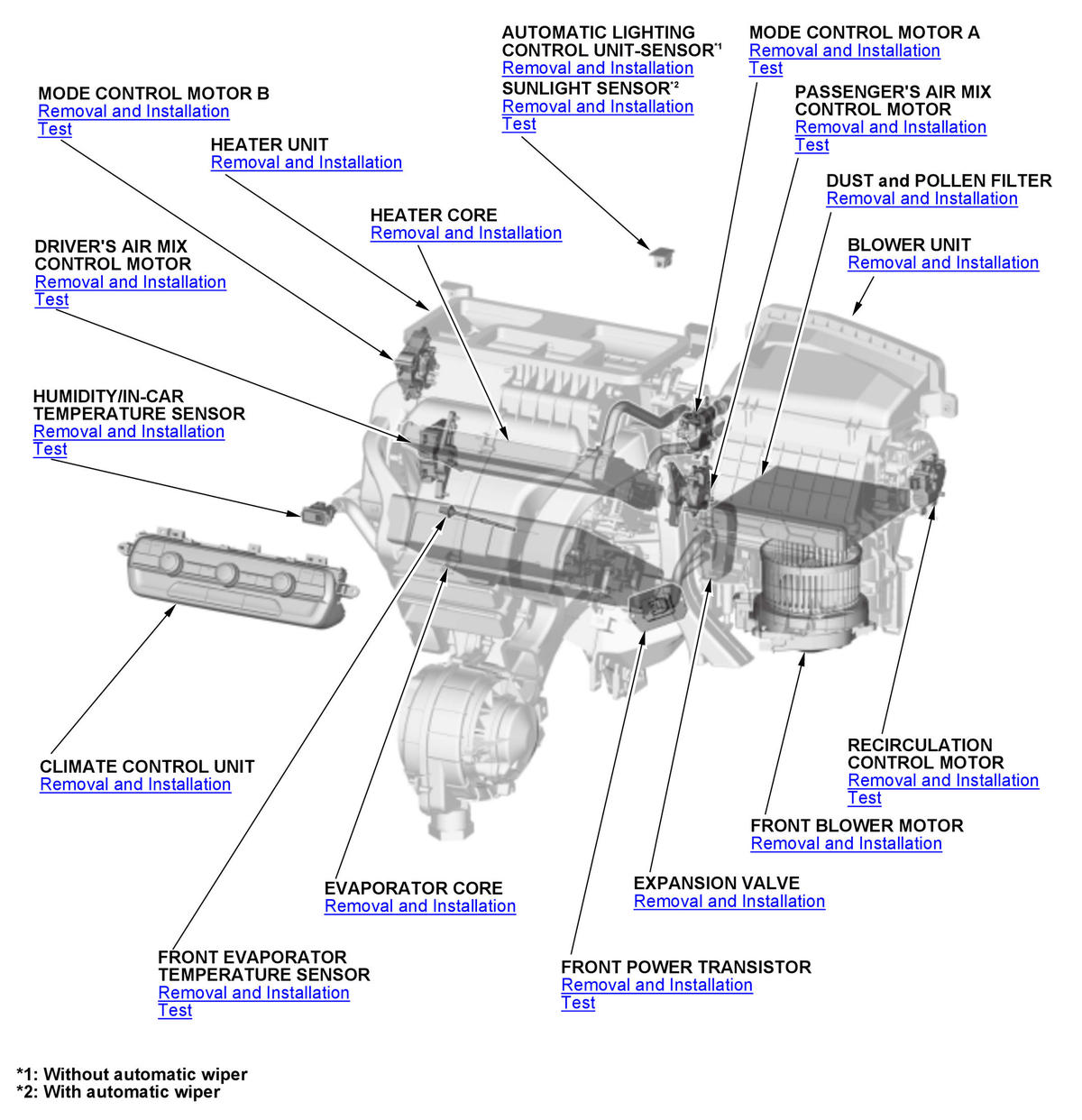

GHH579529

Courtesy of HONDA, U.S.A., INC.
