Audio and Visual System Component Location Index

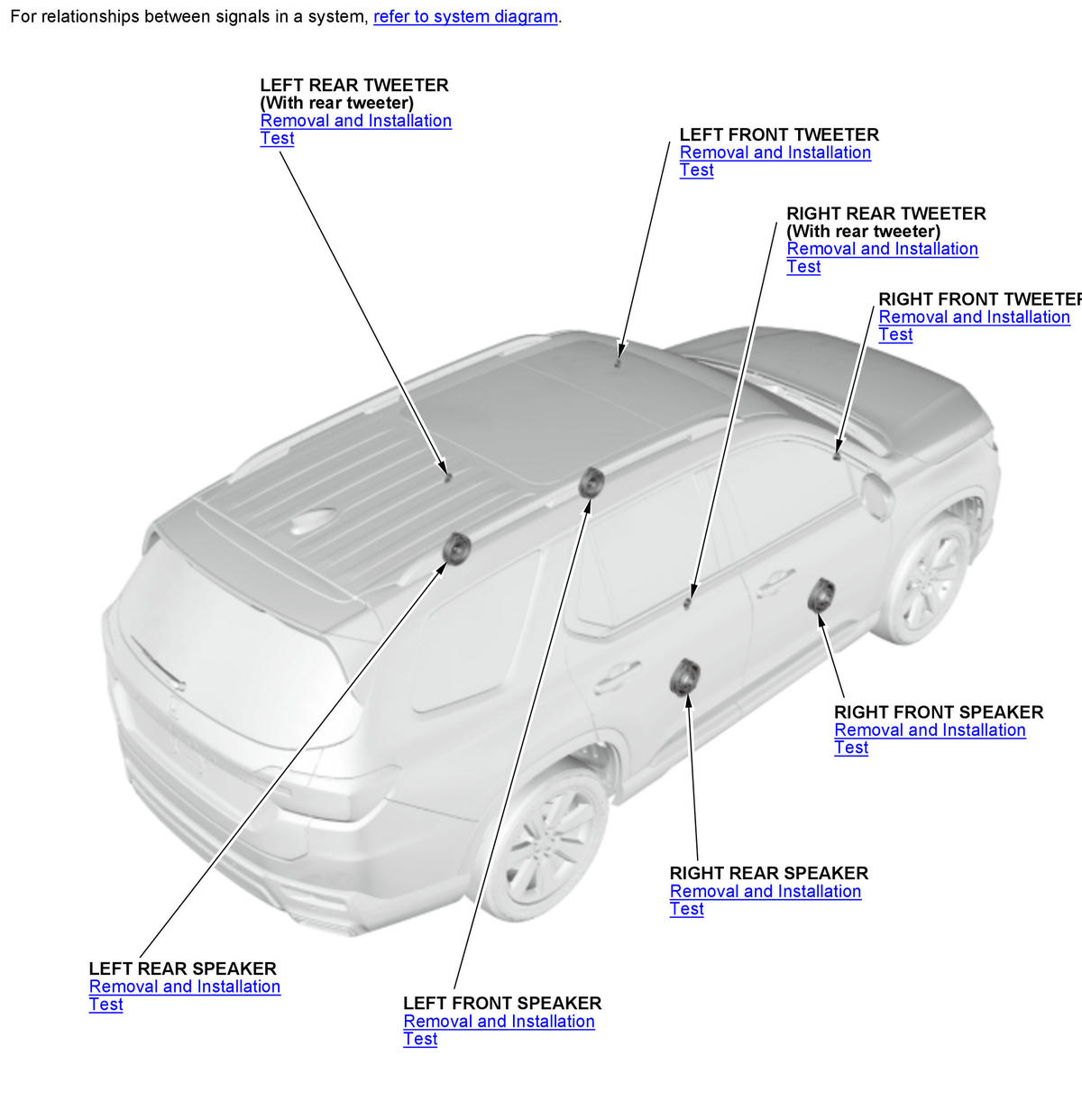

GHH574418

Courtesy of HONDA, U.S.A., INC.

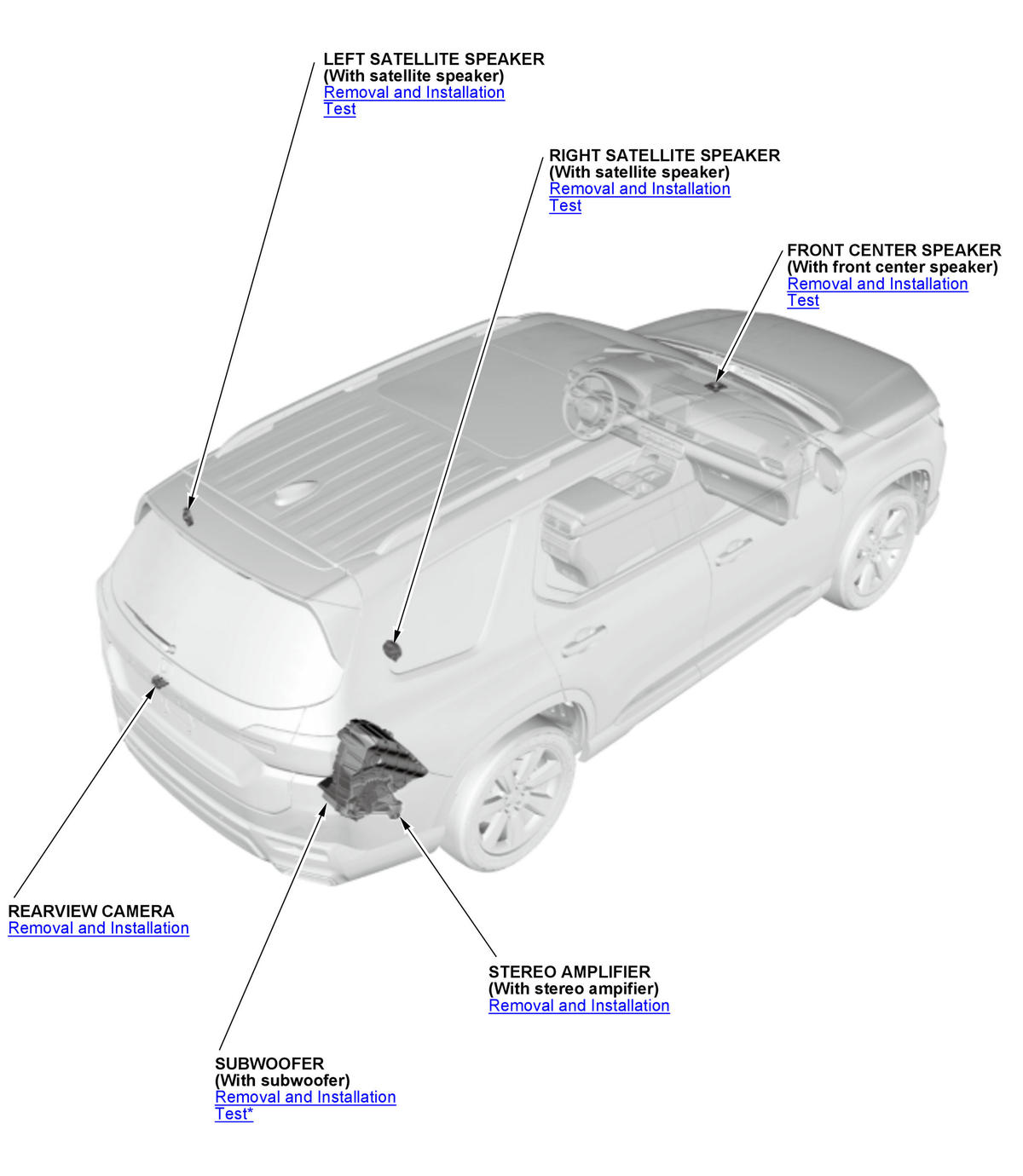

GHH574419

Courtesy of HONDA, U.S.A., INC.

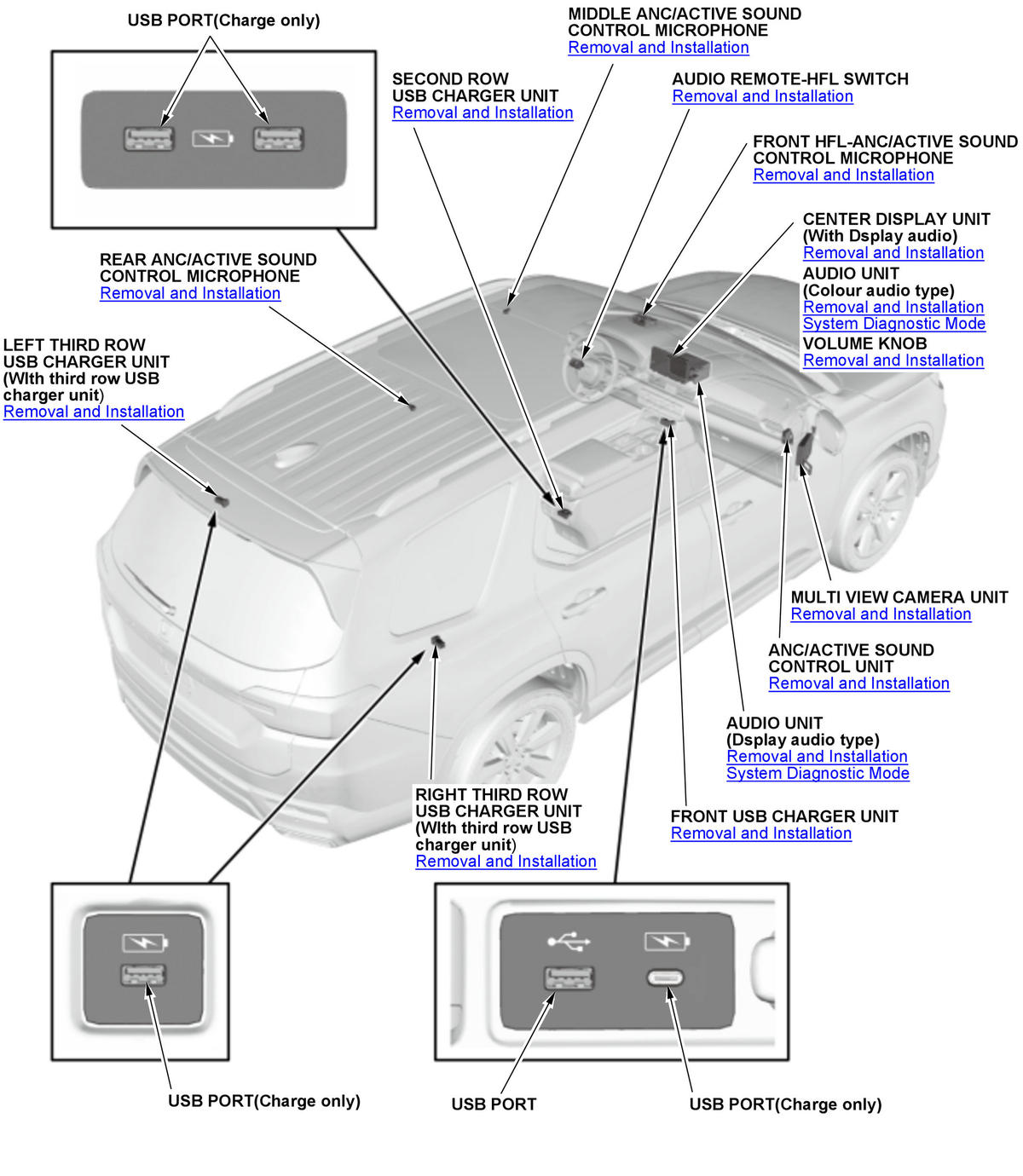

GHH574420

Courtesy of HONDA, U.S.A., INC.

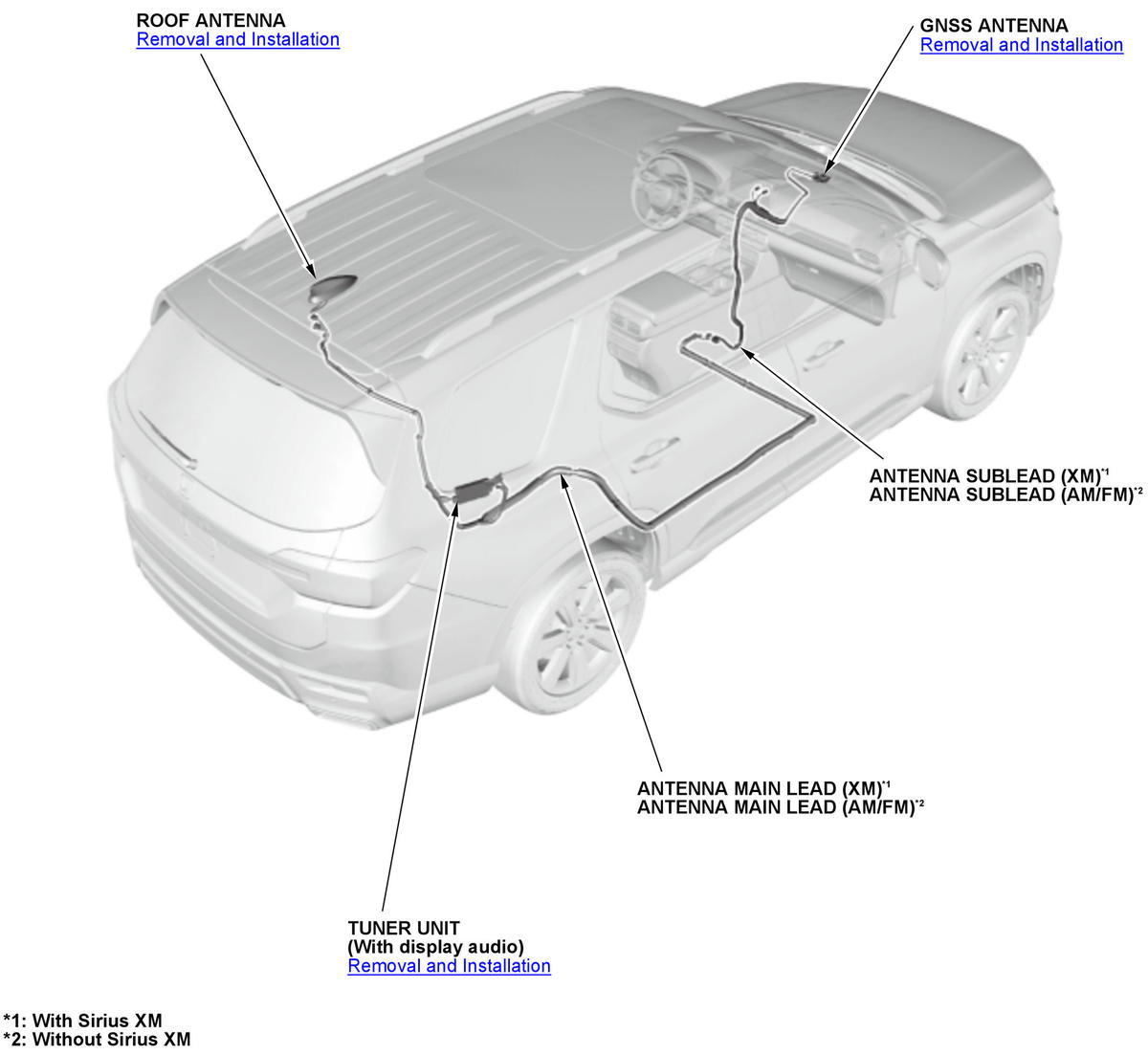

GHH574421

Courtesy of HONDA, U.S.A., INC.
