Honda
>>
2023
>>
Pilot EX-L, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Head Up Display - Diagnostics
>>
Troubleshooting
>>
DTC B1194 (Head Up Display)
>>

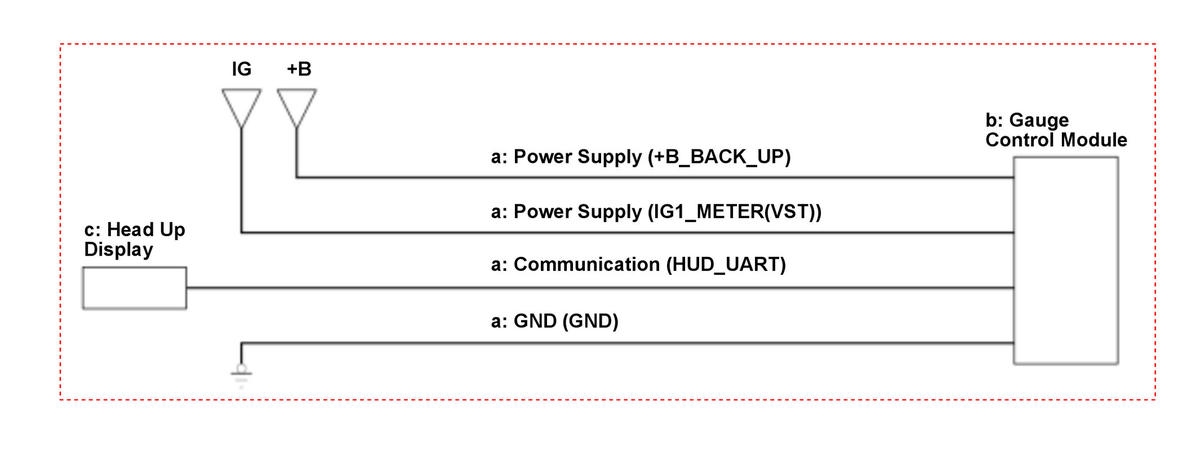

Inspection Outline
Inspection Outline
The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection items
Work Items
a
External Circuit
+B_BACK_UP, IG1_METER(VST), GND, HUD_UART Circuit Inspection
b
Gauge Control Module
Gauge Control Module Inspection
c
Head Up Display
Head Up Display Inspection
