Paddle Shifter Circuit Troubleshooting: Inspection

Audio Remote-HFL Switch Inspection

Test Procedure

• Preparation
  • Audio remote-HFL switch connector (16P): disconnected
• Procedure
  • Perform the inspection according to the following table.

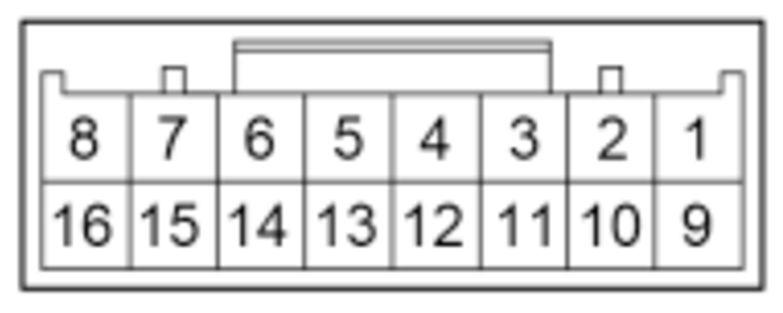

			(Disconnected) Audio remote-HFL switch connector (16P) male terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Switch internal circuit inspection	OFF		There is less than 1 Ohms

Results

• If it is abnormal, there is a problem with the audio remote-HFL switch.

ACC Combination Switch Inspection

Test Procedure

• Preparation
  • ACC combination switch connector (16P): disconnected
• Procedure
  • Perform the inspection according to the following table.

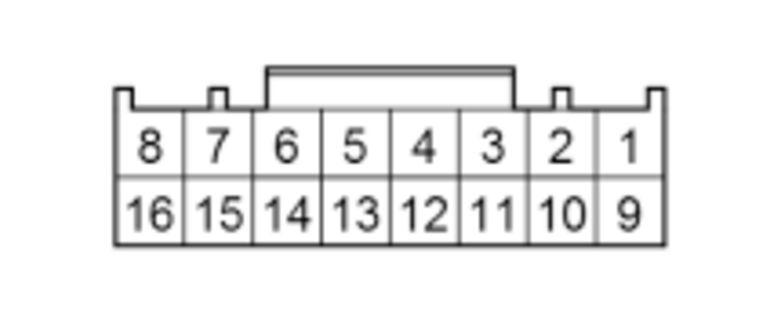

			(Disconnected) ACC combination switch connector (16P) male terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	Switch internal circuit inspection	OFF		There is less than 1 Ohms

Results

• If it is abnormal, there is a problem with the ACC combination switch.

SUPP [PADDLE_UP], SDNP [PADDLE_DOWN], GND [GND(C/REEL-PADDLE_DOWN)] Circuit Inspection

Test Procedure

• Preparation
  • TCM connector A (23P): disconnected
  • Paddle shifter connector (4P): disconnected
• Procedure
  • Perform the inspection according to the following table.

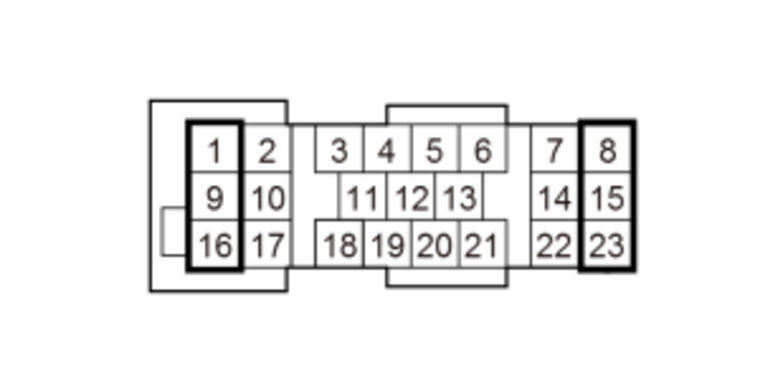

			(Disconnected) TCM connector A (23P) female terminals	(Disconnected) Paddle shifter connector (4P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	SUPP [PADDLE_UP] open wire inspection*1	OFF			There is less than 1 Ohms
	SDNP [PADDLE_DOWN] open wire inspection*2	OFF			There is less than 1 Ohms
	GND [GND(C/REEL-PADDLE_DOWN)] open wire inspection*2	OFF			There is less than 1 Ohms
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	SUPP [PADDLE_UP] shorted to ground inspection*1	OFF			Not shorted
	SDNP [PADDLE_DOWN] shorted to ground inspection*2	OFF			Not shorted

*1: Applies to the paddle shifter + (upshift switch) circuit

*2: Applies to the paddle shifter - (downshift switch) circuit

Results

• If abnormal, there is a problem in the circuit.

GND(AUDIO_CRUISE_or_PADDLE_UP), GND [GND(C/REEL-AUDIO)] Open Wire Inspection

Test Procedure

• Preparation
  • Audio remote-HFL switch connector (16P): disconnected
  • Paddle shifter + (upshift switch) connector (4P): disconnected
• Procedure
  • Perform the inspection according to the following table.

			(Disconnected) Audio remote-HFL switch connector (16P) female terminals	(Disconnected) Paddle shifter + (upshift switch) connector (4P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	GND(AUDIO_CRUISE_or_PADDLE_UP) open wire inspection	OFF			There is less than 1 Ohms
	GND [GND(C/REEL-AUDIO)] open wire inspection	OFF			There is less than 1 Ohms

Results

• If abnormal, there is a problem in the circuit.

GND(CRUISE-PADDLE_UP), GND(AUDIO_CRUISE_or_PADDLE_UP), GND [GND(C/REEL-AUDIO)] Open Wire Inspection

Test Procedure

• Preparation
  • ACC combination switch connector (16P): disconnected
  • Audio remote-HFL switch connector (16P): disconnected
  • Paddle shifter + (upshift switch) connector (4P): disconnected
• Procedure
  • Perform the inspection according to the following table.

			(Disconnected) ACC combination switch connector (16P) female terminals	(Disconnected) Paddle shifter + (upshift switch) connector (4P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	GND(CRUISE-PADDLE_UP) open wire inspection	OFF			There is less than 1 Ohms

			(Disconnected) ACC combination switch connector (16P) female terminals	(Disconnected) Audio remote-HFL switch connector (16P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	GND(AUDIO_CRUISE_or_PADDLE_UP) open wire inspection	OFF			There is less than 1 Ohms
	GND [GND(C/REEL-AUDIO)] open wire inspection	OFF			There is less than 1 Ohms

Results

• If abnormal, there is a problem in the circuit.

TCM Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining TCM is the cause.

Results

• There is a problem with the TCM.
