Inspection Outline
- The components to be tested are indicated by a dotted line.

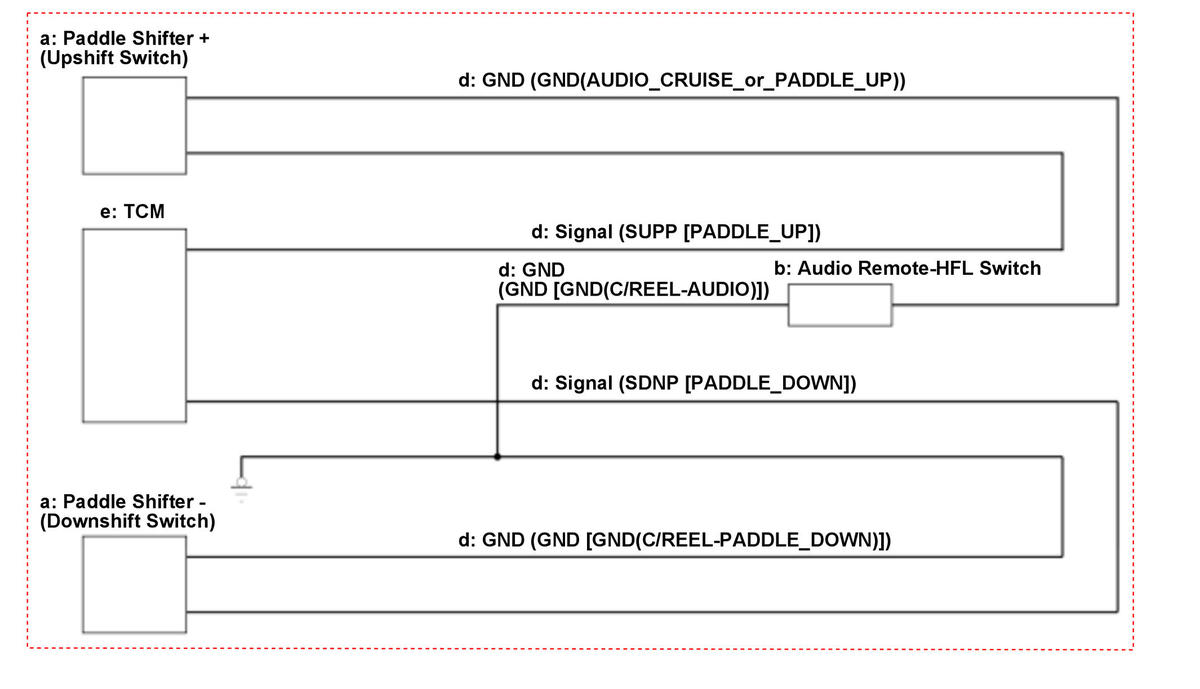

7 inch MID

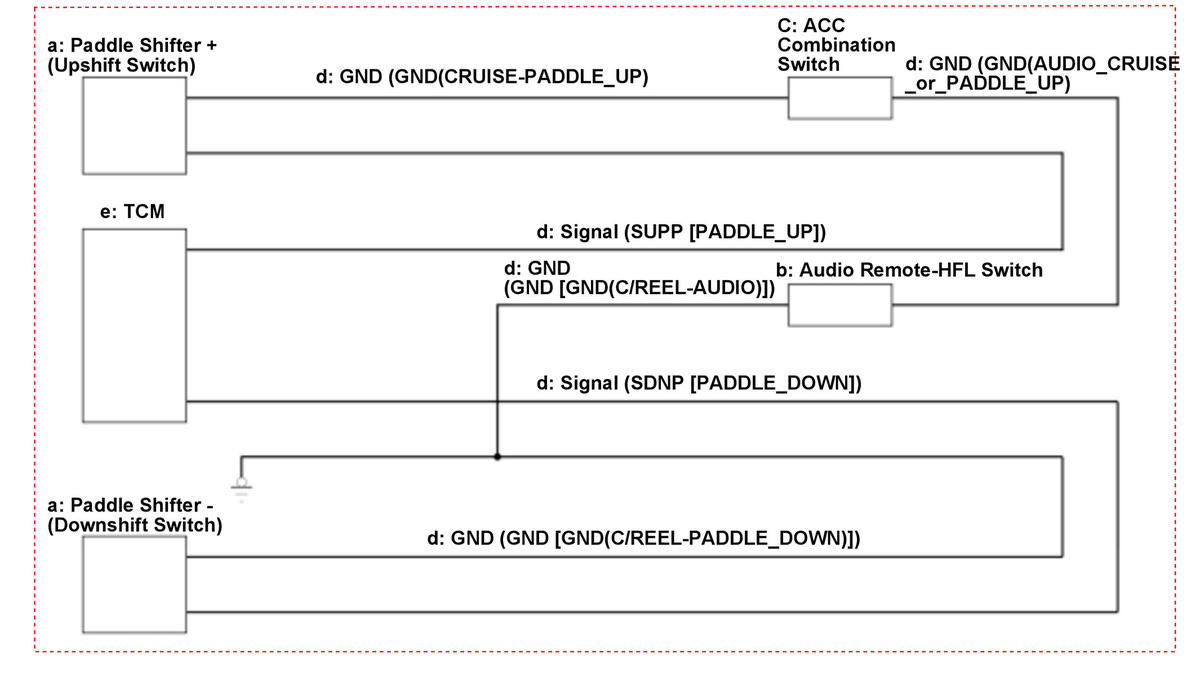

10 inch MID
| Inspection Items | Work Items | |
|---|---|---|
| a | Paddle Shifter | Do the Paddle Shifter Test . |
| b | Audio Remote-HFT Switch | Audio Remote-HFL Switch Inspection |
| c | ACC Combination Switch*2 | ACC Combination Switch Inspection |
| d | External Circuit | SUPP [PADDLE_UP], SDNP [PADDLE_DOWN], GND [GND(C/REEL-PADDLE_DOWN)] Circuit Inspection |
| GND(AUDIO_CRUISE_or_PADDLE_UP), GND [GND(C/REEL-AUDIO)] Open Wire Inspection*1 | ||
| GND(CRUISE-PADDLE_UP), GND(AUDIO_CRUISE_or_PADDLE_UP), GND [GND(C/REEL-AUDIO)] Open Wire Inspection*2 | ||
| e | TCM | TCM Inspection |
*1: 7 inch MID
*2: 10 inch MID
