Gauges Symptom Troubleshooting - Integrated drive-mode system mode does not change: Inspection

MODE_UP, MODE_DOWN, GND Circuit Inspection

Test Procedure

• Preparation
  • Integrated drive-mode system/hill descent control/idle stop off switch connector (8P): disconnected
  • Gauge control module connector A (32P): disconnected
• Procedure
  • Perform the inspection according to the following table.

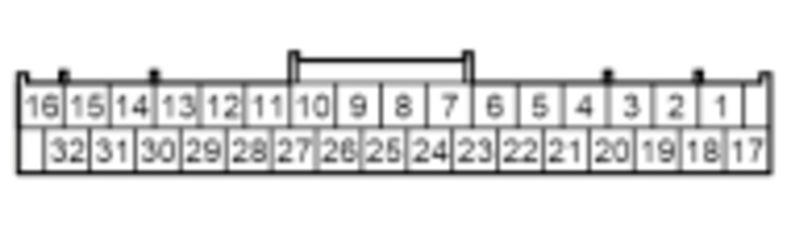

			(Disconnected) Integrated drive-mode system/hill descent control/idle stop off switch connector (8P) female terminals	(Disconnected) Gauge control module connector A (32P)  female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	MODE_UP open wire inspection	OFF			There is less than 1 Ohms
	MODE_DOWN open wire inspection	OFF			There is less than 1 Ohms
	GND open wire inspection	OFF			There is less than 1 Ohms
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	MODE_UP shorted to ground inspection	OFF			There is more than 1 MOhms
	MODE_DOWN shorted to ground inspection	OFF			There is more than 1 MOhms

Results

• If abnormal, there is a problem in the circuit.

Gauge Control Module Inspection

Test Procedure

• If the other inspection item(s) indicated a normal condition, then it is determined that the remaining gauge control module is the cause.

Results

• There is a problem with the gauge control module.
