Inspection Outline

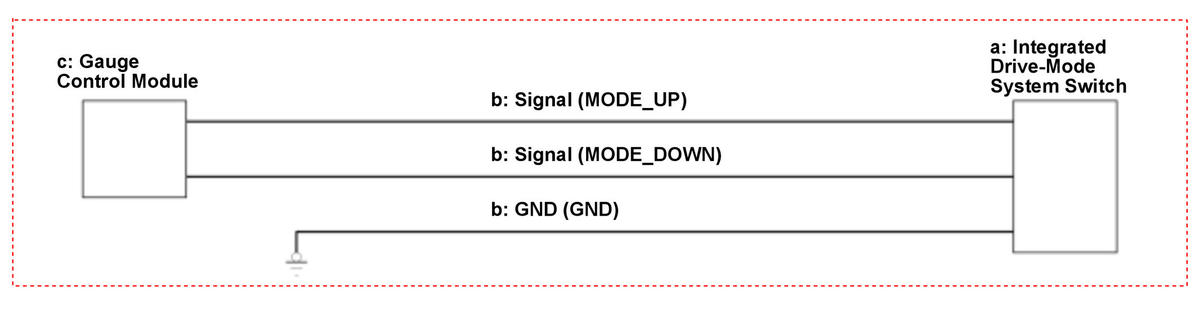

- The components to be tested are indicated by a dotted line.
- Troubleshoot any DTCs listed or indicated systems below first.
- Gauges [Gauge Control Module]: Go to the indicated DTC's troubleshooting .
| Inspection items | Work Items | |
|---|---|---|
| a | Integrated Drive-Mode System Switch | Do the Integrated Drive-Mode System Switch Test |
| b | External Circuit | MODE_UP, MODE_DOWN, GND Circuit Inspection |
| c | Gauge Control Module | Gauge Control Module Inspection |
