Outside Air Temperature Sensor Test: Test

How to use this manual .

NOTE:  Before testing the sensor, check for climate control DTCs .

1. Outside Air Temperature Sensor - Test

   Preconditions

   • Outside Air Temperature Sensor Removed

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

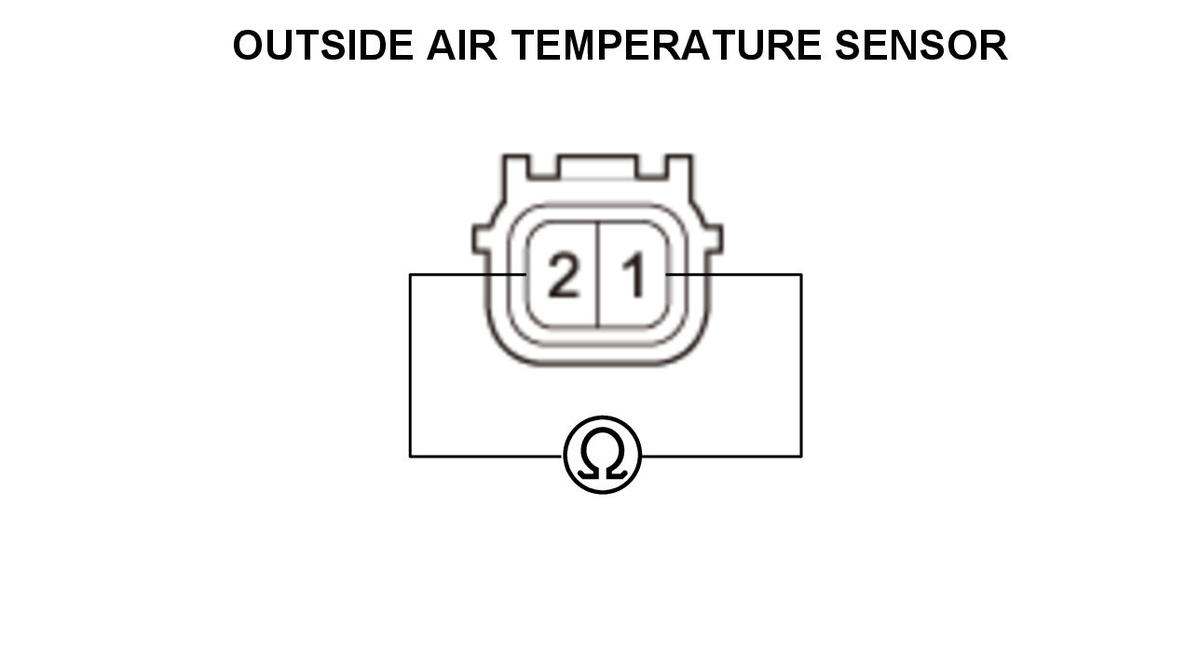

   1. Dip the sensor in ice water, and measure the resistance between terminals No. 1 and No. 2. (Figure 1)

   2. Then pour warm water on the sensor, and check for a change in resistance.

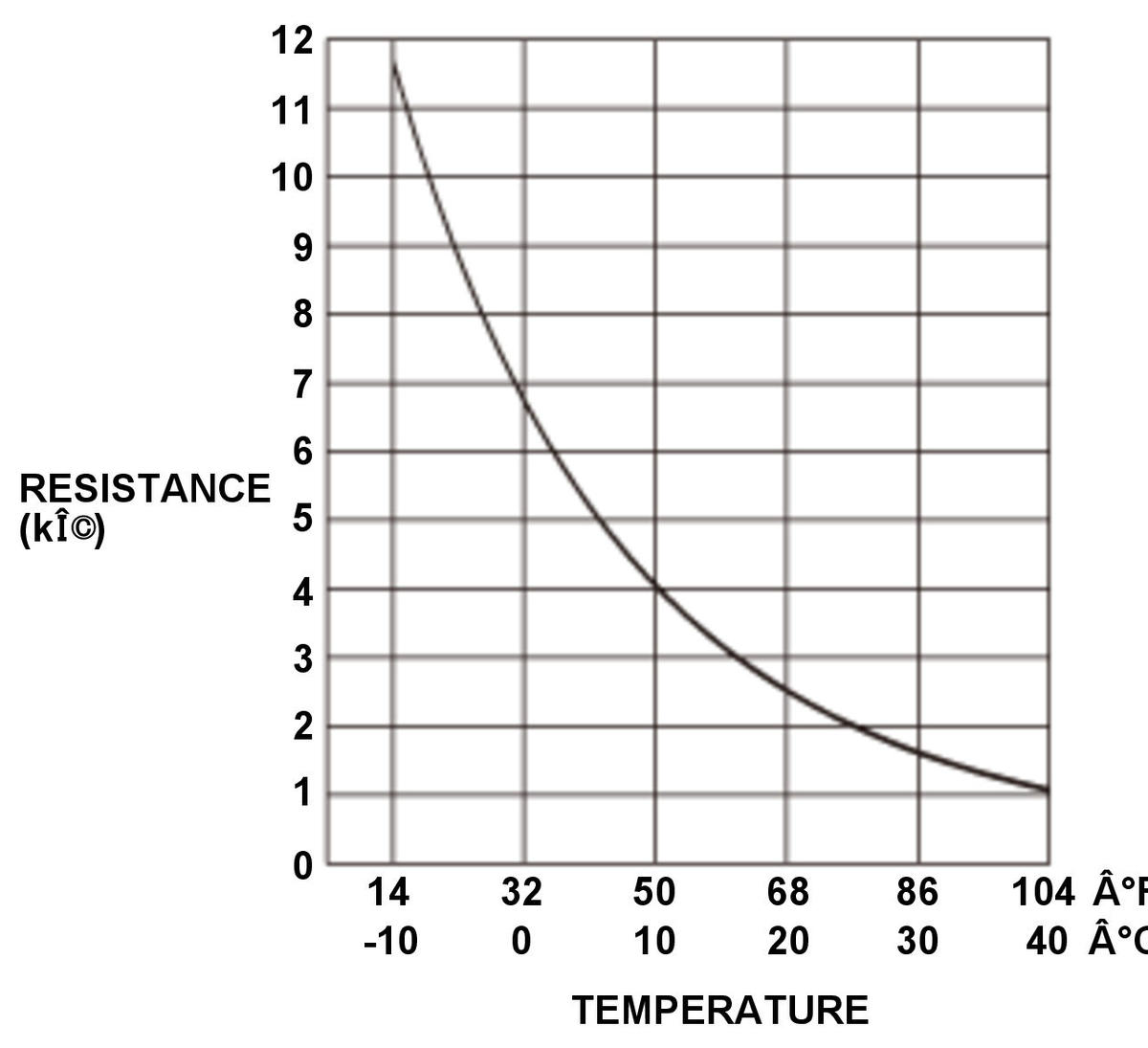

   3. Compare the resistance readings with the specifications shown in the graph, the resistance should be within the specifications. (Figure 2)

   Result

   • If the result is not as specified, replace the outside air temperature sensor .
