Wireless Seat Belt Reminder System Description - Components
Body Control Module
The body control module controls the system that receives/retrieves the information from the seat belt reminder transceiver and sends the seat belt information via CAN to the gauge control module.

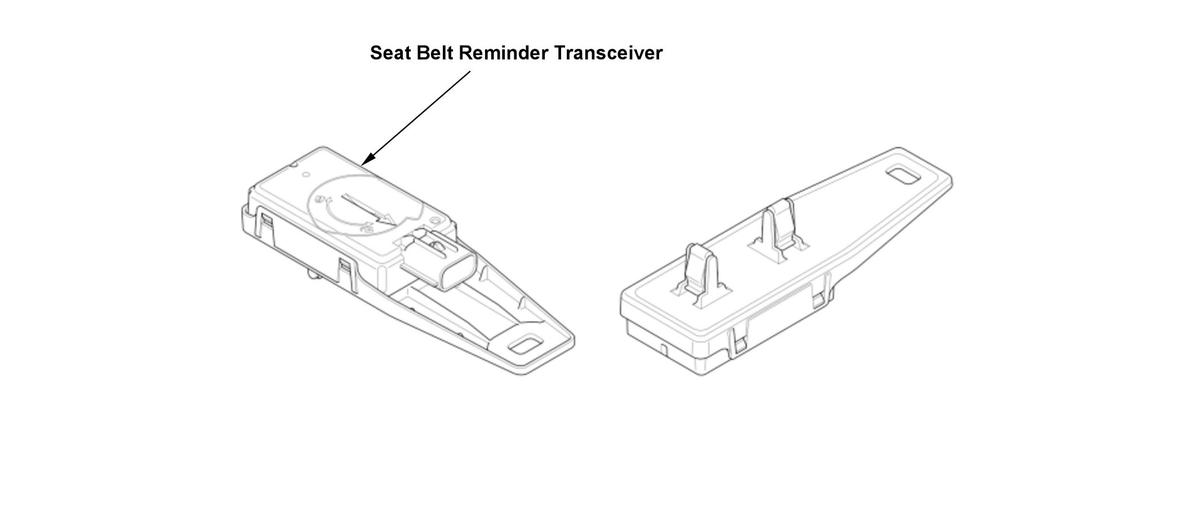

Seat Belt Reminder Transceiver
The seat belt reminder transceiver is located on the second row center seat and communicates wirelessly with the body control module.
LF (Low Frequency) Antennas
Refer to keyless access system description - Refer to: Keyless Access System Description - System Diagram () or Keyless Access System Description () or Keyless Access System Description - Components () .
Seat Belt Buckle Switch
The seat belt buckle switch is built in to the seat belt and informs the related systems whether the seat belt is wear or not.
