Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs

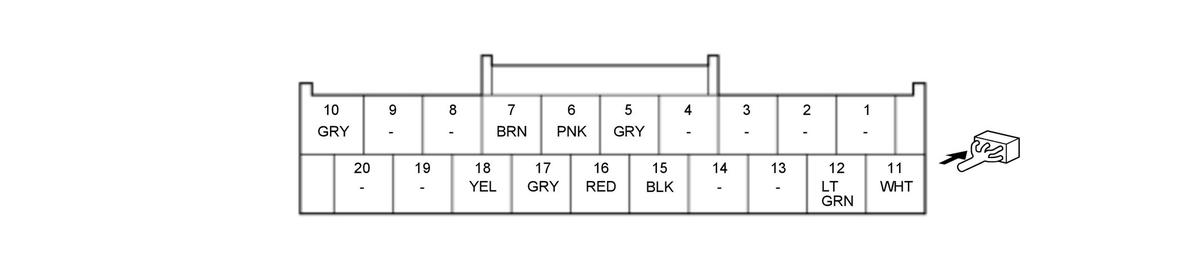

Parking and Back-Up Sensor Control Unit Connector (20P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | - - - | Not used |
| 2 | - - - | Not used |
| 3 | - - - | Not used |
| 4 | - - - | Not used |
| 5 | FSG | Ground for front sensors |
| 6 | FSS | Communication line |
| 7 | FSP | Power source for front sensors |
| 8 | - - - | Not used |
| 9 | - - - | Not used |
| 10 | IG1_METER(VST) | IG1 power source |
| 11 | AF-CAN B_H | Communication line |
| 12 | AF-CAN B_L | Communication line |
| 13 | - - - | Not used |
| 14 | - - - | Not used |
| 15 | GND | Parking and back-up sensor control unit ground |
| 16 | RSG | Ground for rear sensors |
| 17 | RSS | Communication line |
| 18 | RSP | Power source for rear sensors |
| 19 | - - - | Not used |
| 20 | - - - | Not used |
