Head Up Display Connector for Inputs and Outputs

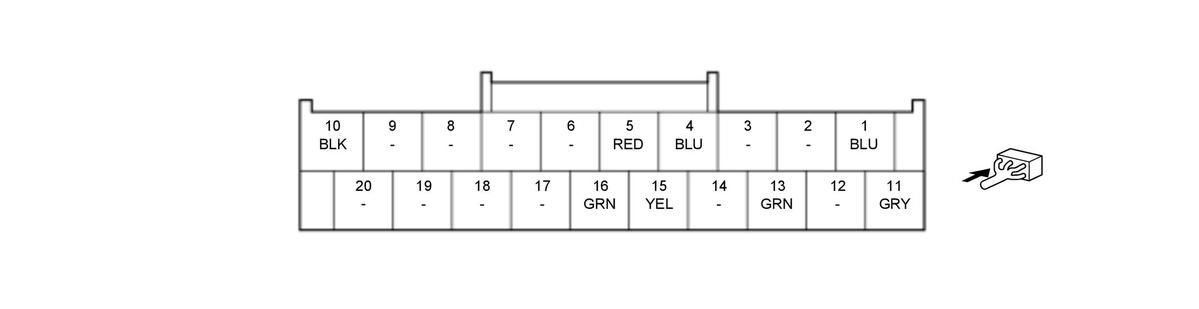

Head Up Display Connector (20P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | +B_BACK_UP | +B power source |
| 2 | - - - | Not used |
| 3 | - - - | Not used |
| 4 | IF-CAN_H | Communication line |
| 5 | BB-CAN_H | Communication line |
| 6 | - - - | Not used |
| 7 | - - - | Not used |
| 8 | - - - | Not used |
| 9 | - - - | Not used |
| 10 | GND | Head up display ground |
| 11 | IG1_METER(VST) | IG1 power source |
| 12 | - - - | Not used |
| 13 | HUD_UART | Communication line |
| 14 | - - - | Not used |
| 15 | IF-CAN_L | Communication line |
| 16 | BB-CAN_L | Communication line |
| 17 | - - - | Not used |
| 18 | - - - | Not used |
| 19 | - - - | Not used |
| 20 | - - - | Not used |
