Gauge Control Module Connector for Inputs and Outputs
| Connector Index |
|---|
| Gauge Control Module Connector A (32P) |
| Gauge Control Module Connector B (12P) |

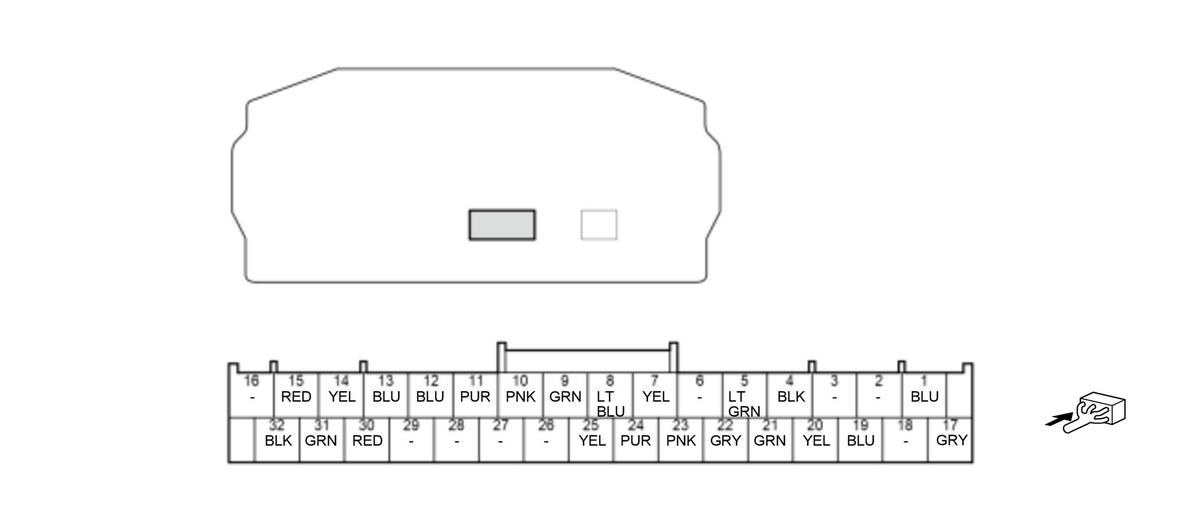

Gauge Control Module Connector A (32P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | +B_BACK_UP | +B power source |
| 2 | - - - | Not used |
| 3 | - - - | Not used |
| 4 | GND | Gauge control module ground |
| 5 | CRUISE_GND | Ground for ACC combination switch |
| 6 | - - - | Not used |
| 7 | MODE_UP | Detects integrated drive-mode system switch (MODE_UP) signal |
| 8 | MODE_DOWN | Detects integrated drive-mode system switch (MODE_DOWN) signal |
| 9 | VSA_OFF_SW | Detects VSA OFF switch signal |
| 10 | PARK_LAMP | Detects VSA modulator-control unit (PARK_LAMP) signal |
| 11 | BRAKE_LEVEL_SW | Detects brake fluid level switch signal |
| 12 | BRAKE_HOLD | Detects automatic brake hold switch signal |
| 13 | IDLE_STOP_OFF | Detects idle stop off switch signal |
| 14 | CRUISE_SW | Detects ACC combination switch (CRUISE_SW) signal |
| 15 | ILL-(LED) | Detects illumination signal |
| 16 | - - - | Not used |
| 17 | IG1_METER(VST) | IG1 power source |
| 18 | - - - | Not used |
| 19 | IF-CAN_H | Communication line |
| 20 | IF-CAN_L | Communication line |
| 21 | FUEL_GAUGE- | Ground for fuel gauge sending unit |
| 22 | FUEL_GAUGE+ | Detects fuel gauge sending unit signal |
| 23 | LIN(START_SW) | Communication line |
| 24* | WASHER_LEVEL_SNSR | Detects washer fluid level switch signal |
| 25 | DISTANCE_SW | Detects ACC combination switch (DISTANCE_SW) signal |
| 26 | - - - | Not used |
*: With washer fluid level switch
| Terminal number | Terminal name | Description |
|---|---|---|
| 27 | - - - | Not used |
| 28 | - - - | Not used |
| 29 | - - - | Not used |
| 30 | BB-CAN_H | Communication line |
| 31 | BB-CAN_L | Communication line |
| 32 | PGND | Gauge control module ground |
*: With washer fluid level switch

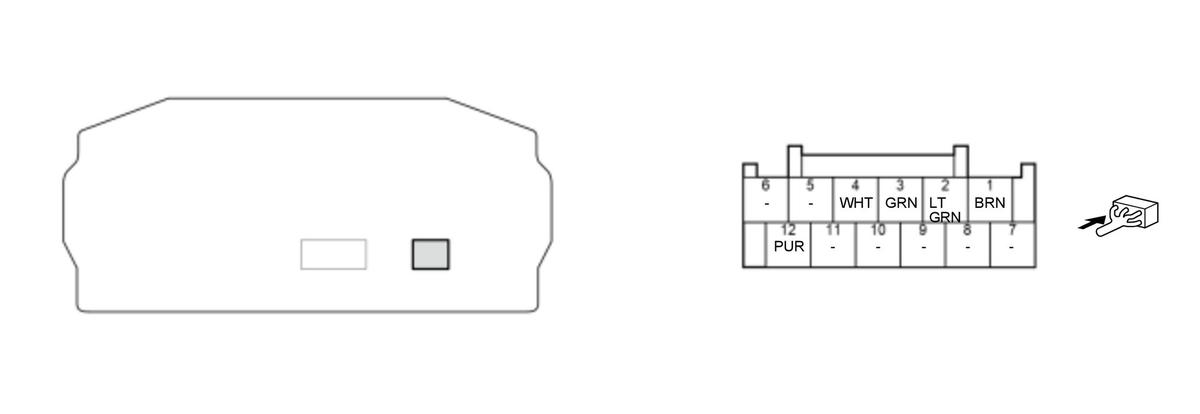

Gauge Control Module Connector B (12P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1*1 | M-CAN_H | Communication line |
| 2*1 | M-CAN_L | Communication line |
| 3*2 | HUD_UART | Communication line |
| 4 | HILL_DECENT_SW | Detects hill decent control switch signal |
| 5 | - - - | Not used |
| 6 | - - - | Not used |
| 7 | - - - | Not used |
| 8 | - - - | Not used |
| 9 | - - - | Not used |
| 10 | - - - | Not used |
| 11 | - - - | Not used |
| 12 | ILLUMI_CONT | Detects ambient lights signal |
*1: Display audio type
*2: With head up display
