Parking and Back-Up Sensor System Component Location Index

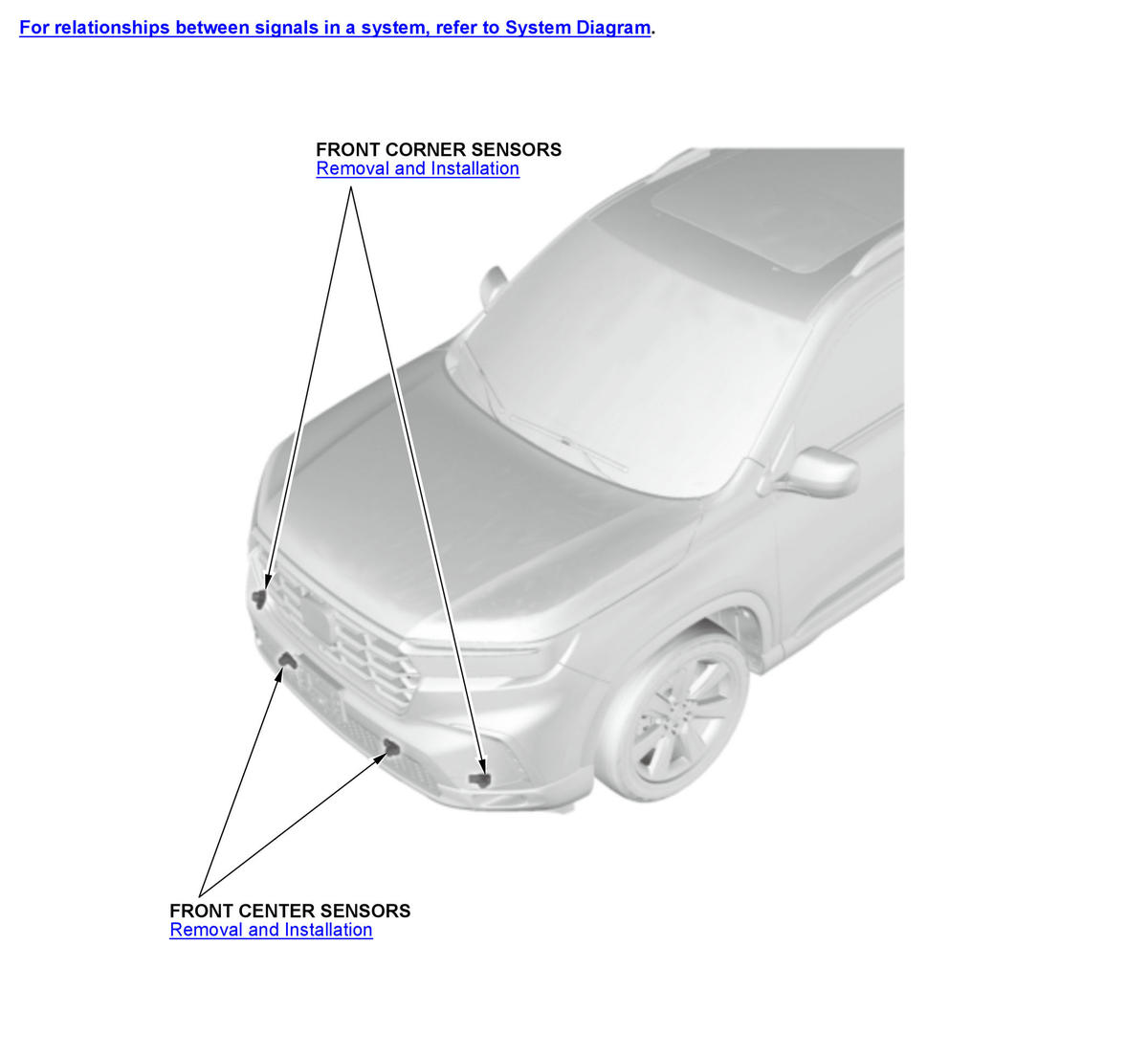

GHH579087

Courtesy of HONDA, U.S.A., INC.

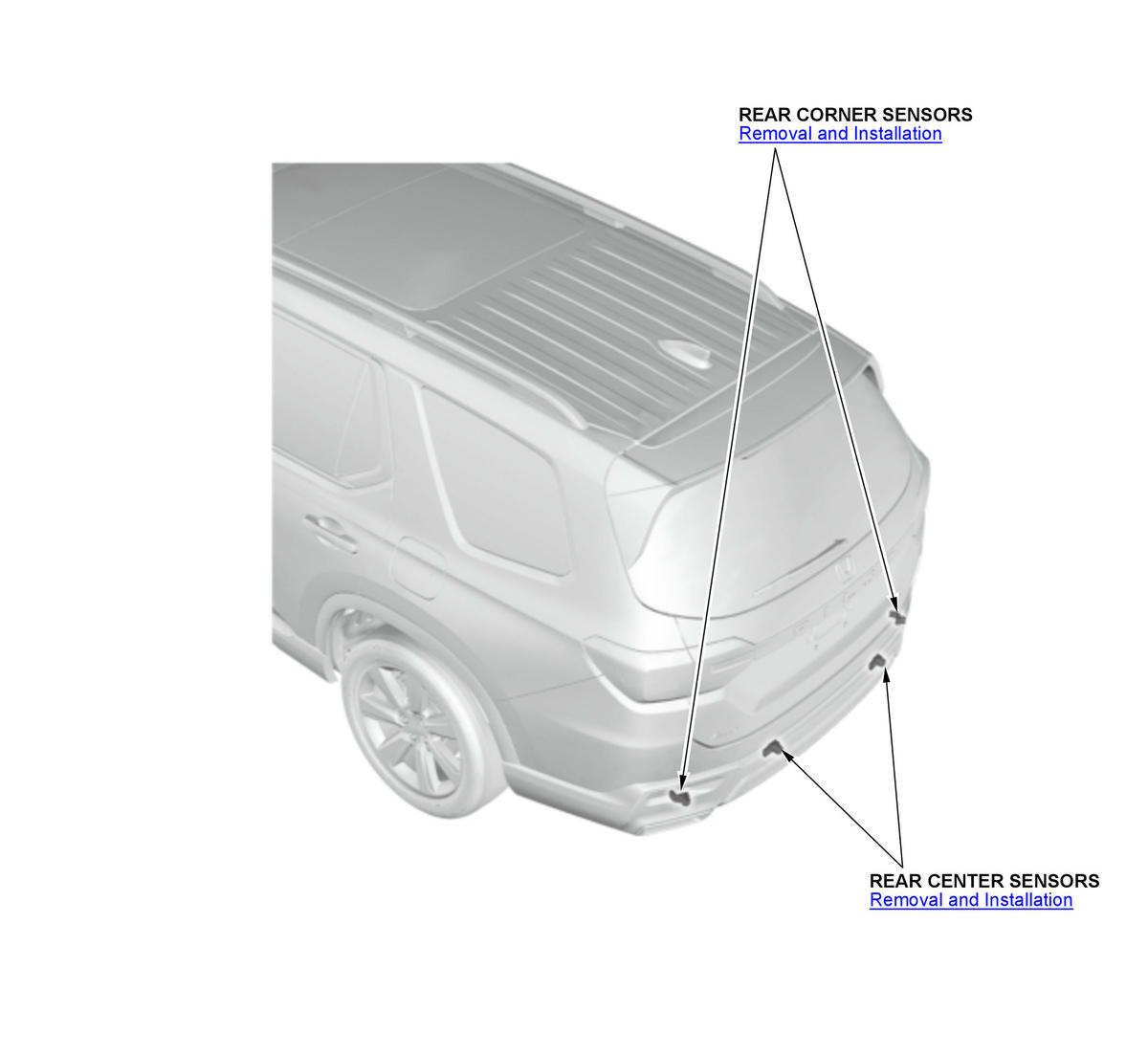

GHH579088

Courtesy of HONDA, U.S.A., INC.

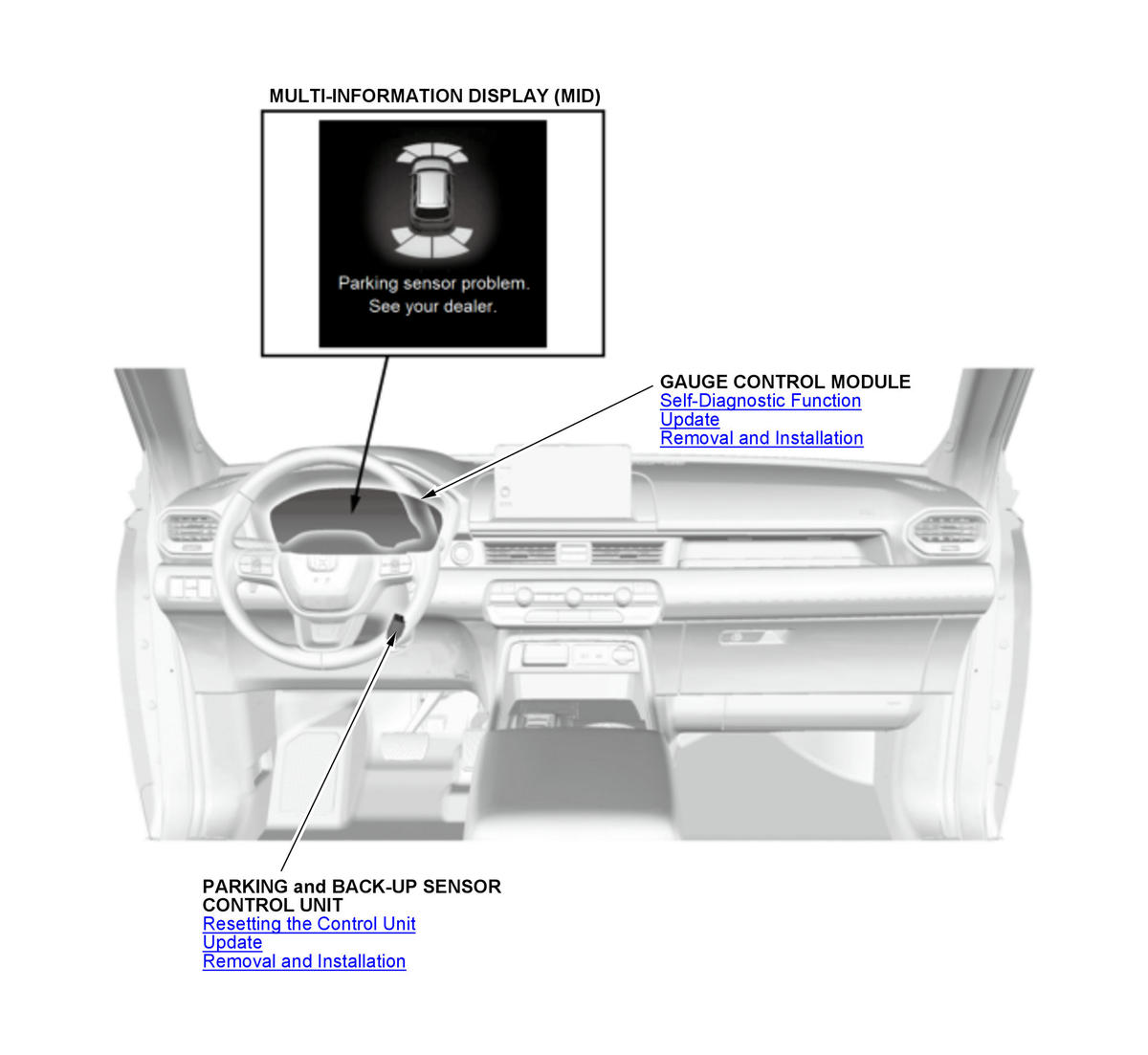

GHH579089

Courtesy of HONDA, U.S.A., INC.
