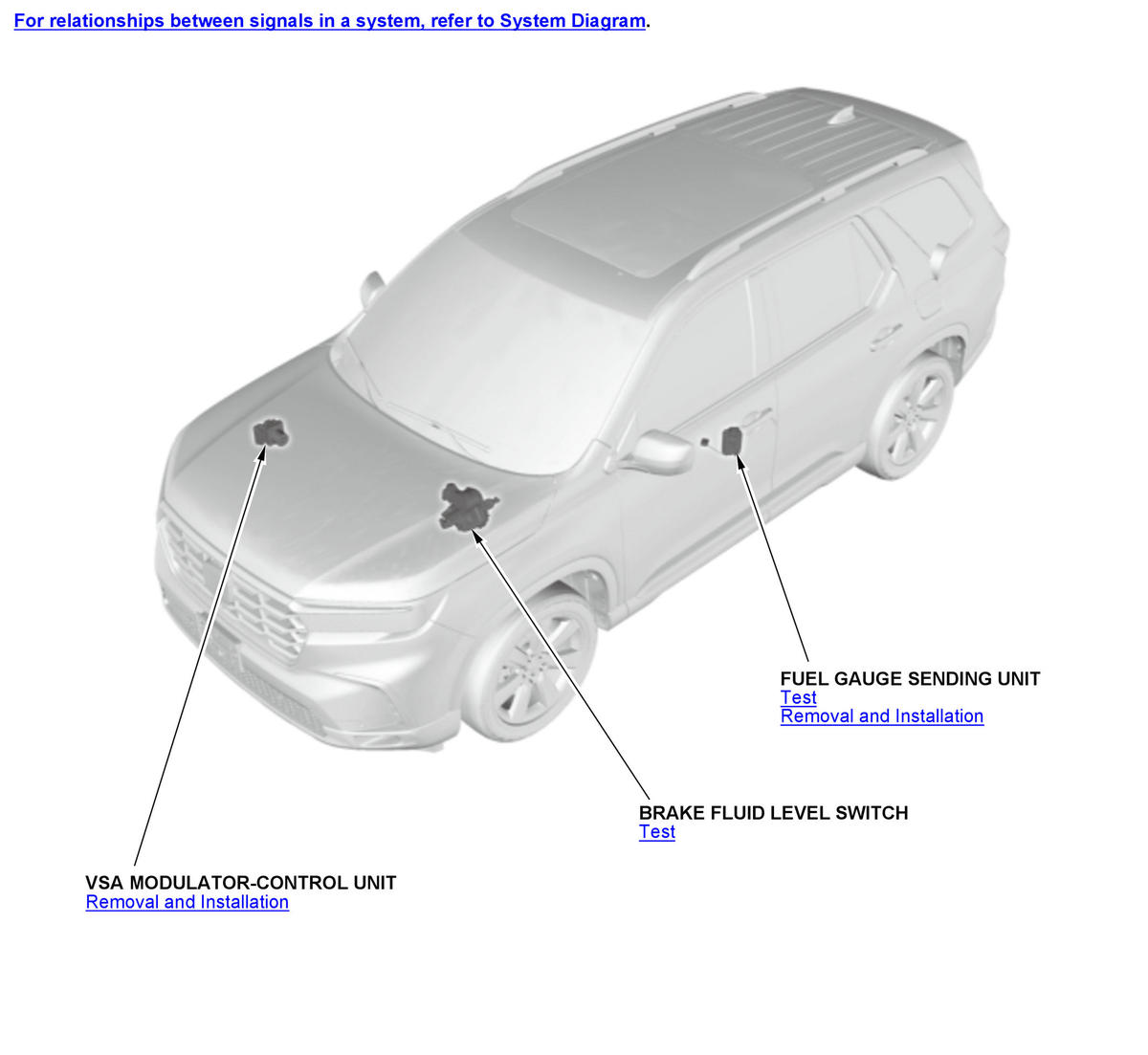

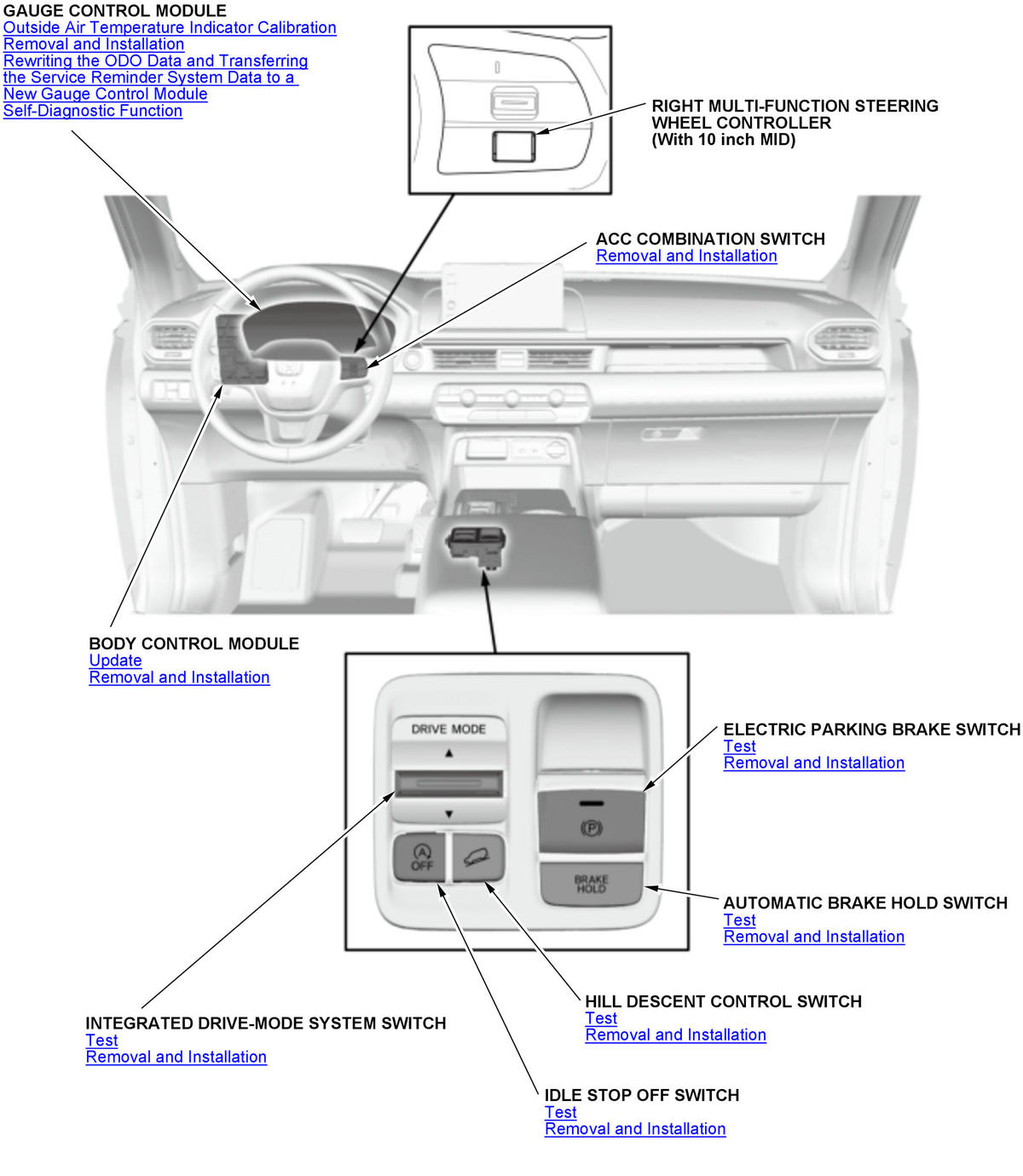

Gauges Component Location Index
 Courtesy of HONDA, U.S.A., INC.
|
 Courtesy of HONDA, U.S.A., INC.
|

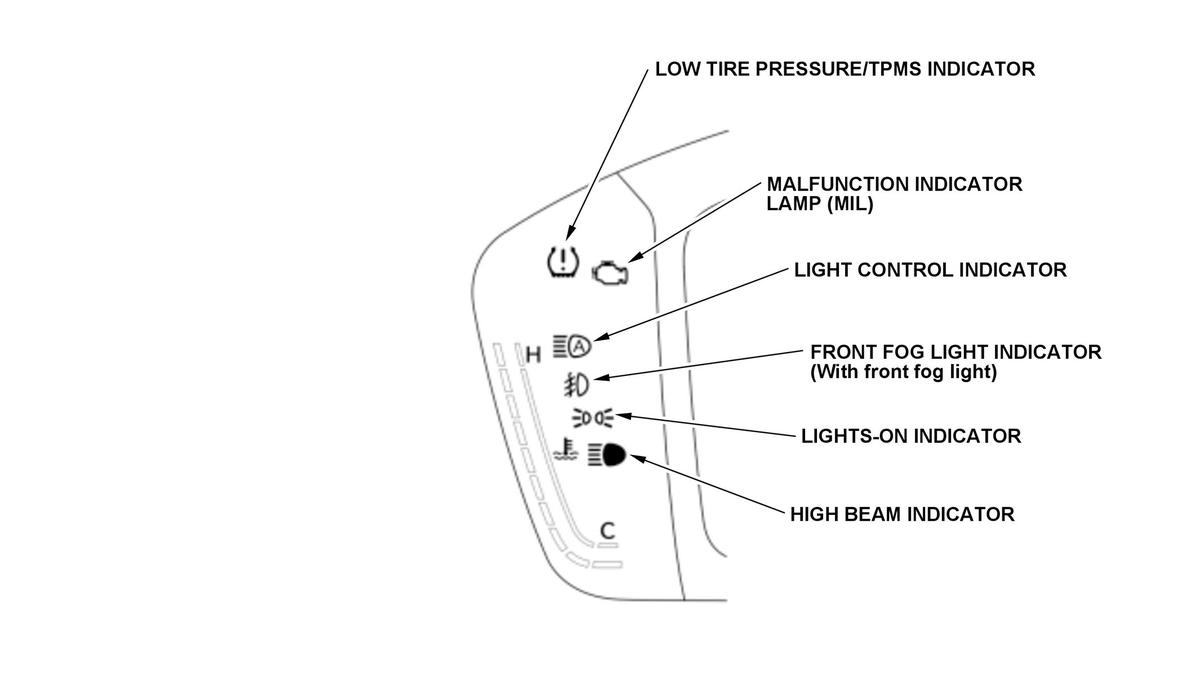

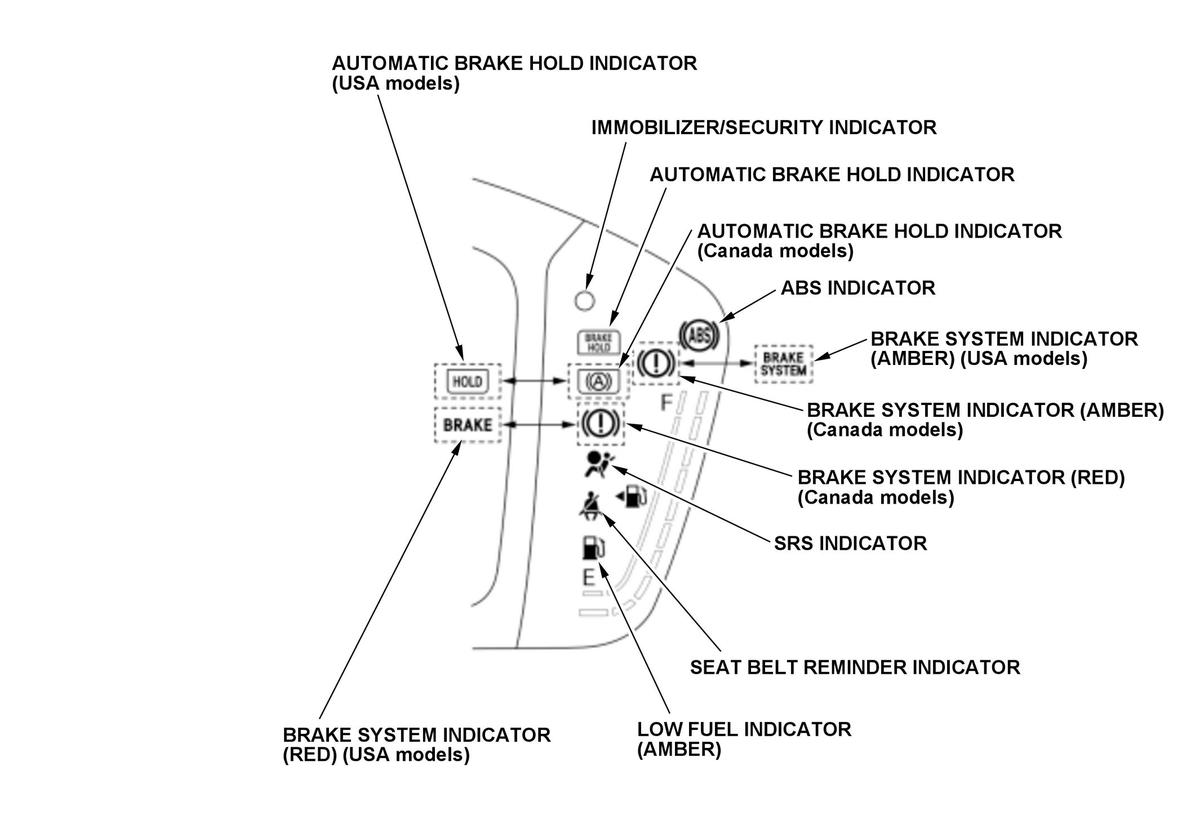

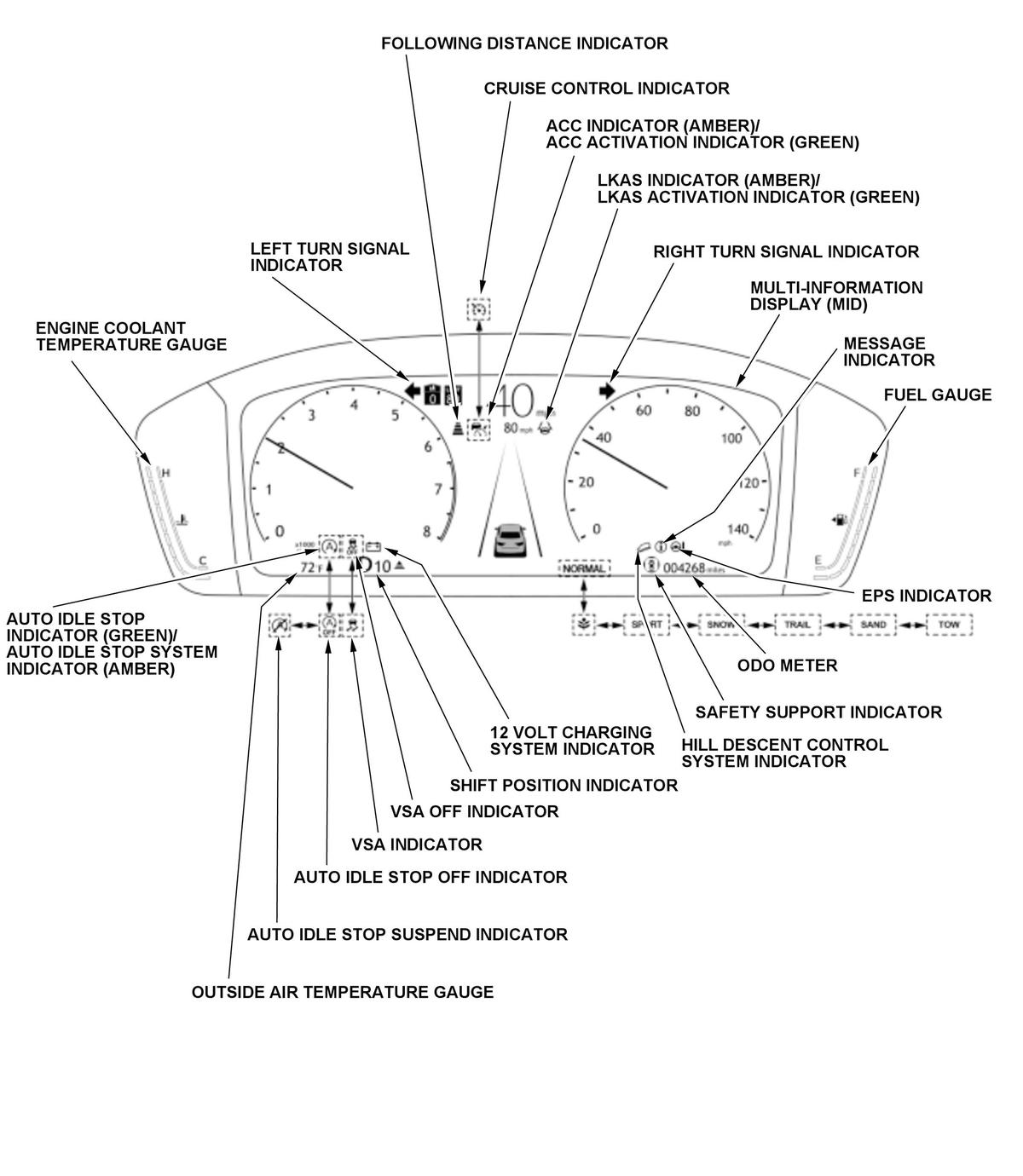

10 inch MID
 Courtesy of HONDA, U.S.A., INC.
|

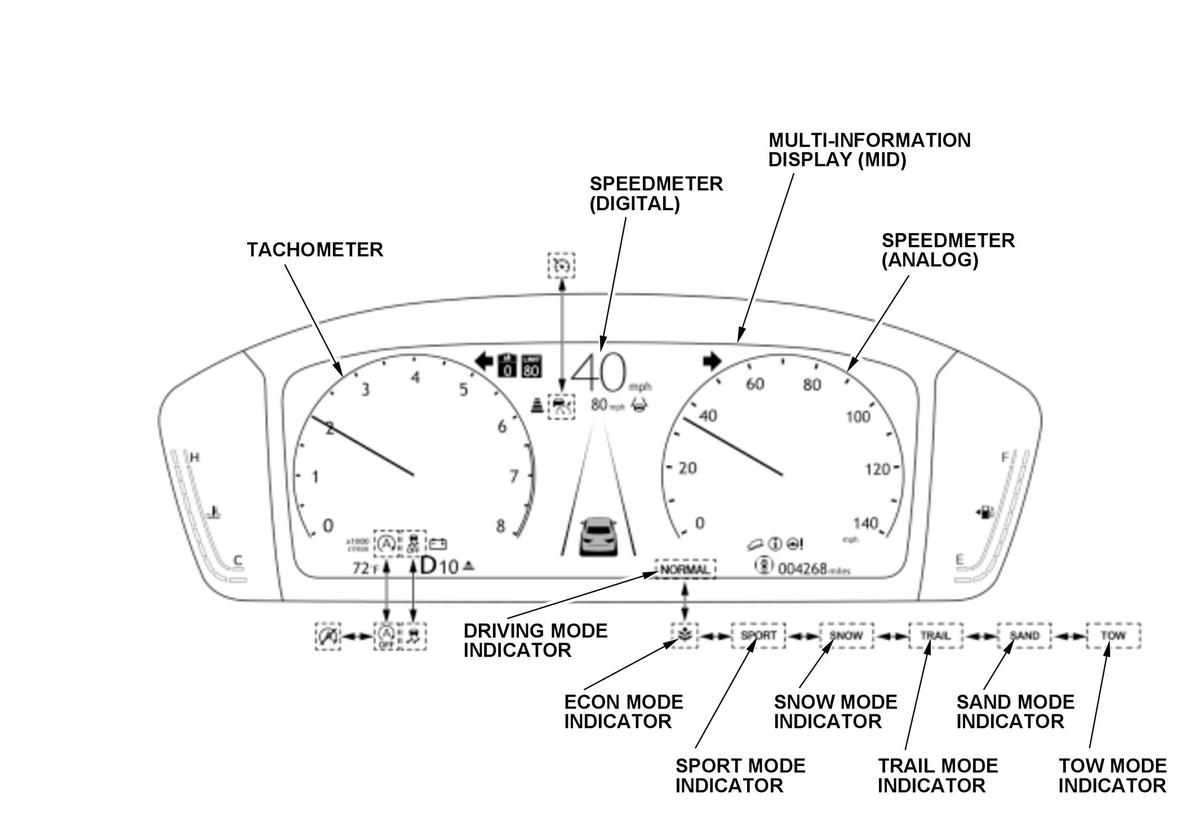

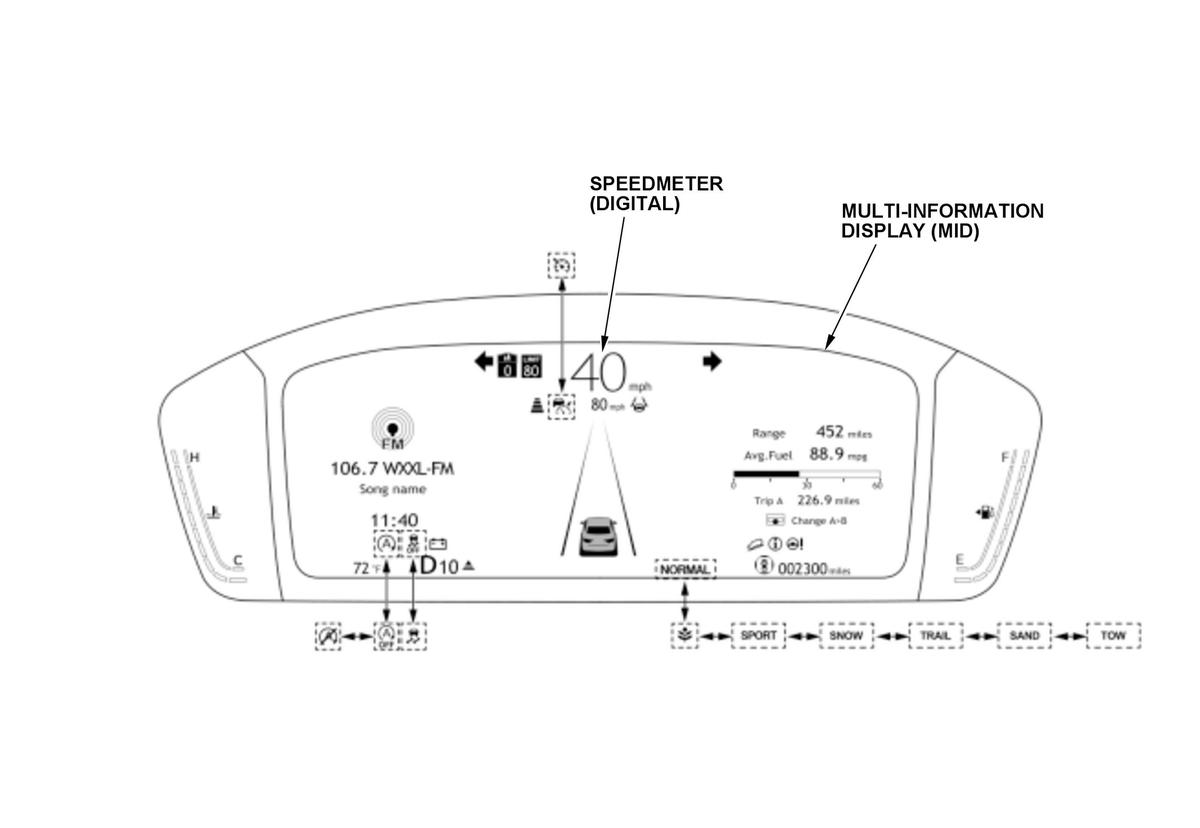

10 inch MID (2 Eye Mode, in Active ADAS)
 Courtesy of HONDA, U.S.A., INC.
|

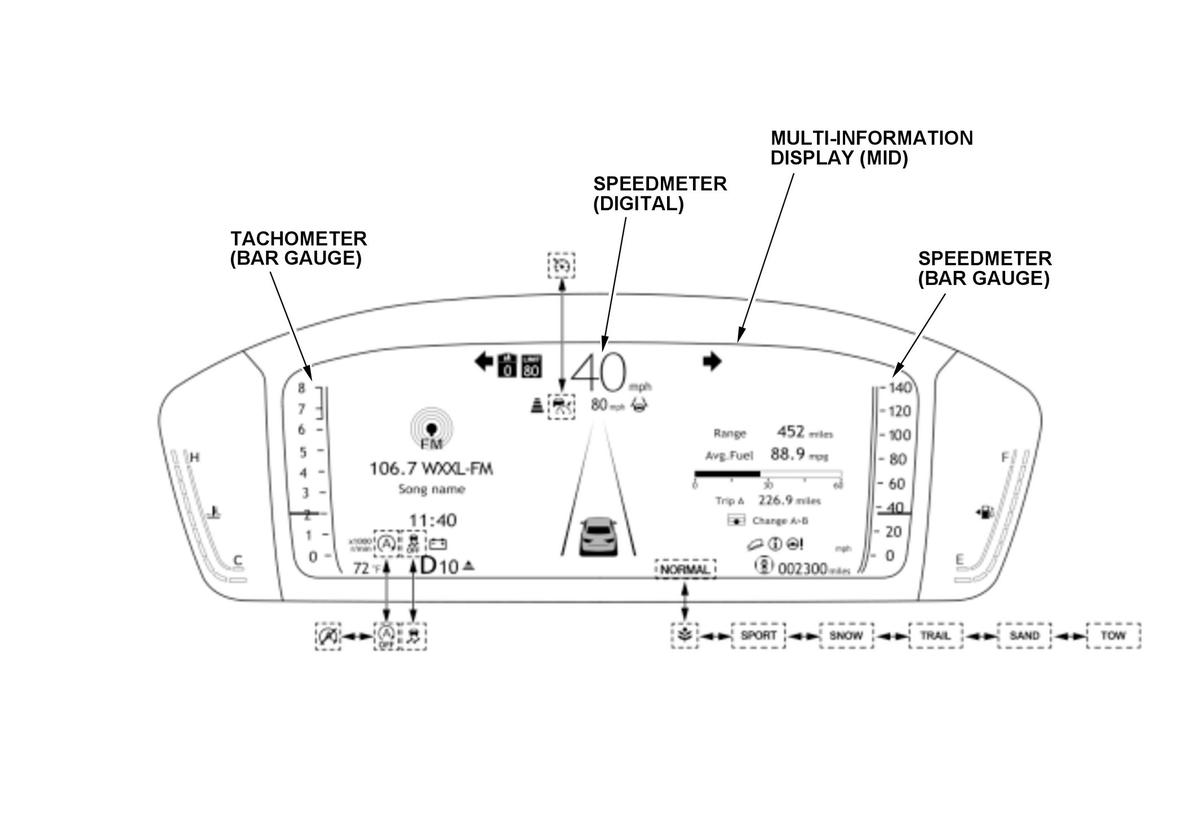

10 inch MID (Bar Gauge Mode, in Active ADAS)
 Courtesy of HONDA, U.S.A., INC.
|
10 inch MID (Off Gauge Mode, in Active ADAS)
 Courtesy of HONDA, U.S.A., INC.
|
10 inch MID
 Courtesy of HONDA, U.S.A., INC.
|
10 inch MID
 Courtesy of HONDA, U.S.A., INC.
|

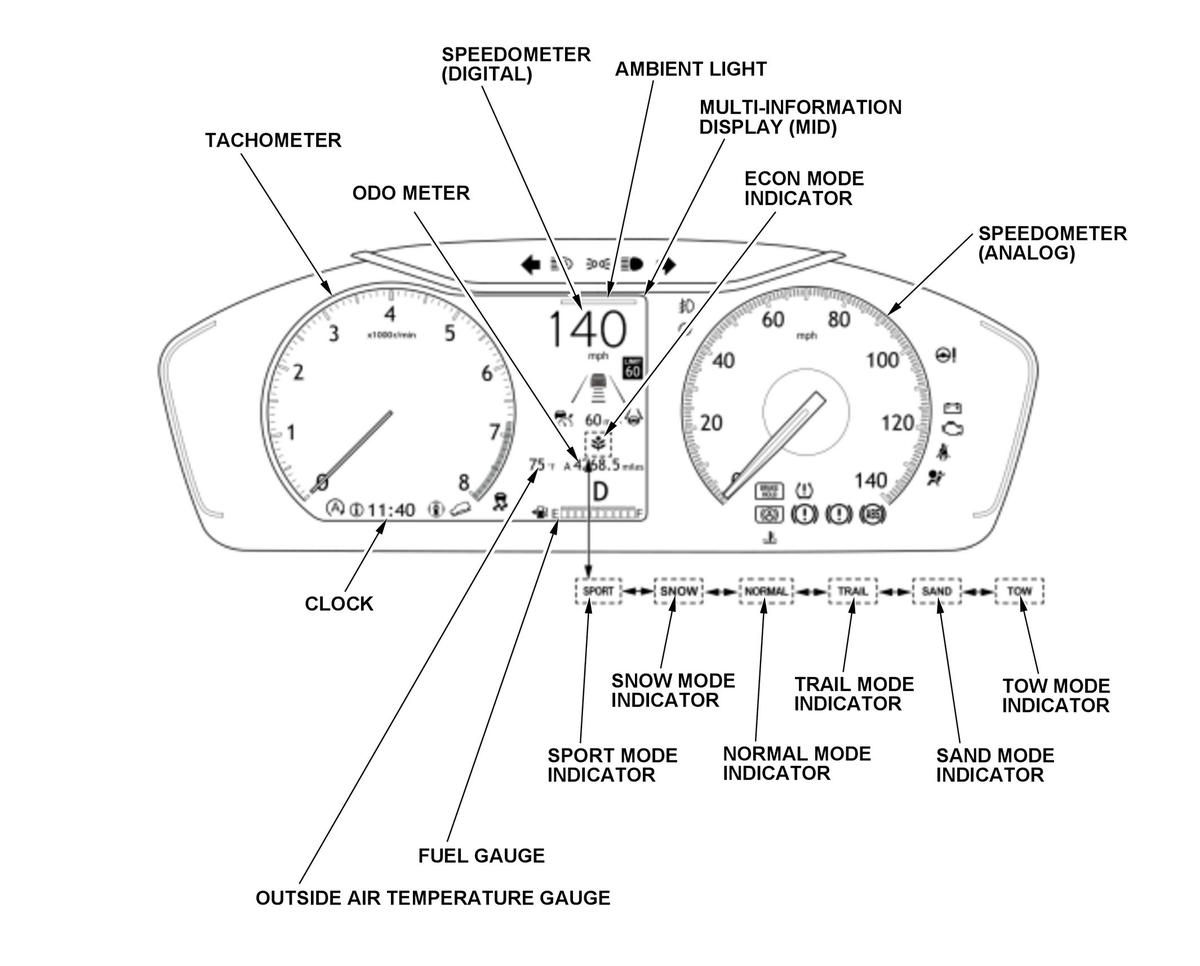

7 inch MID
 Courtesy of HONDA, U.S.A., INC.
|

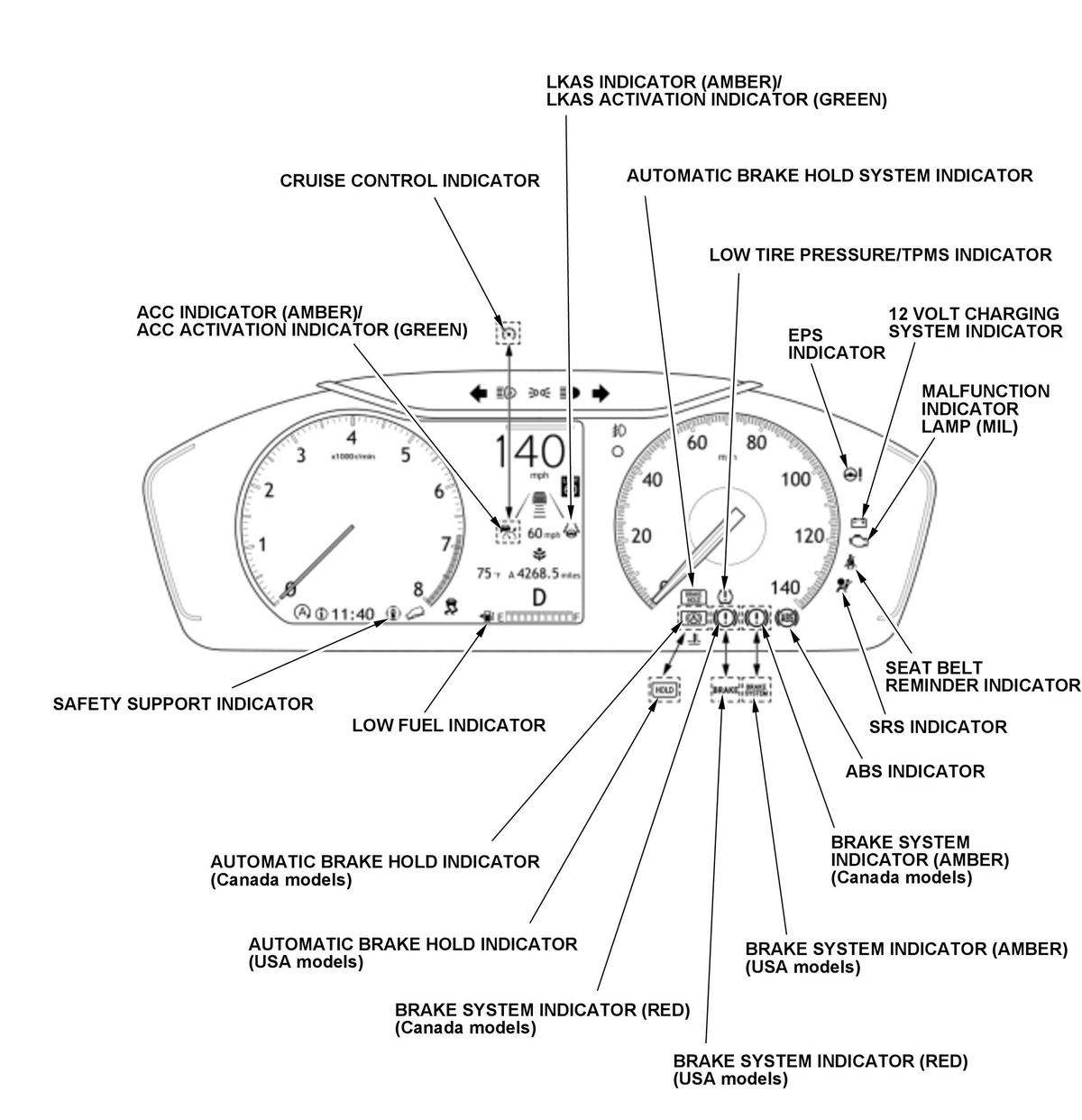

7 inch MID
 Courtesy of HONDA, U.S.A., INC.
|

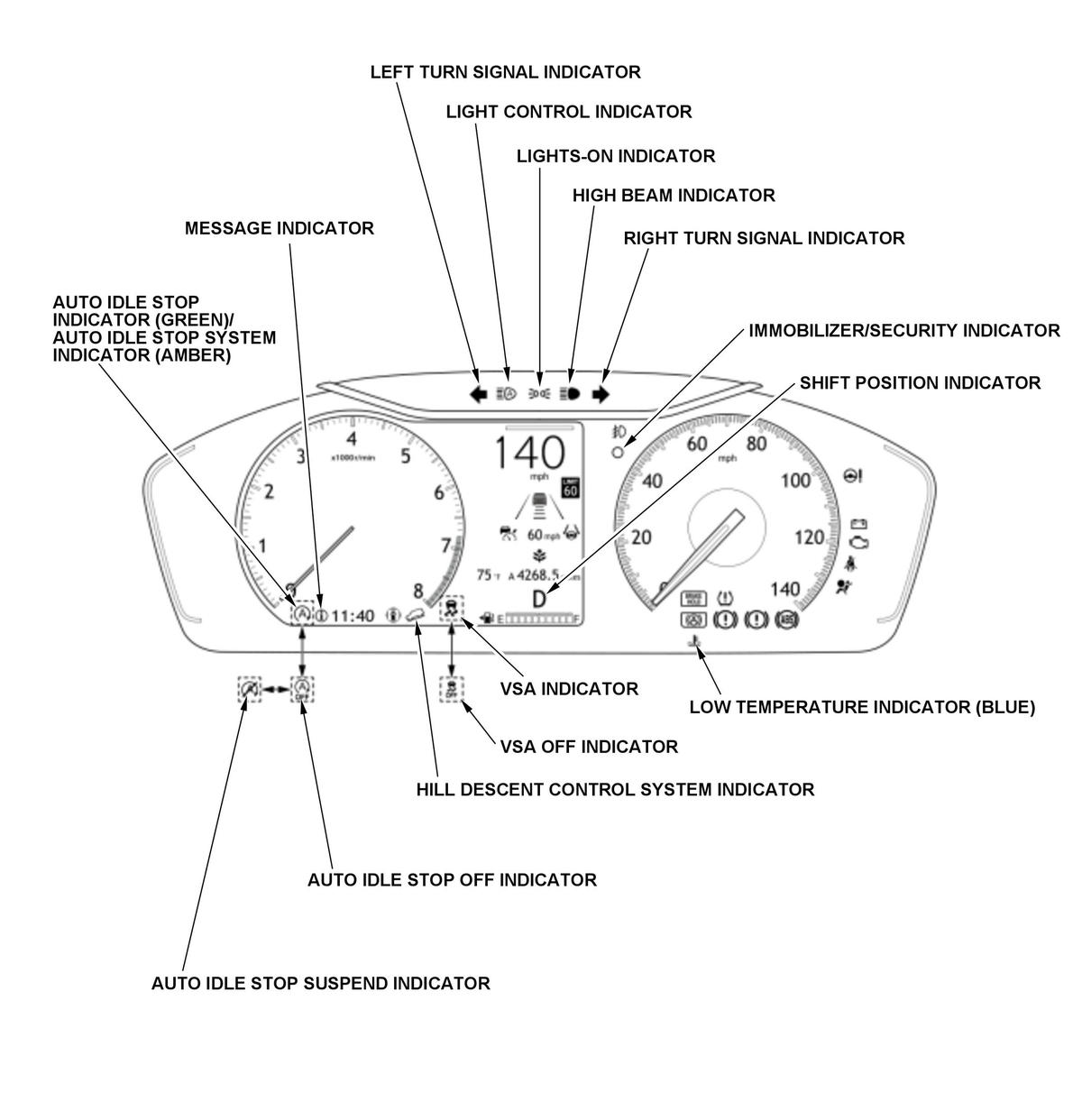

7 inch MID
 Courtesy of HONDA, U.S.A., INC.
|
