Component Location Index: SRS

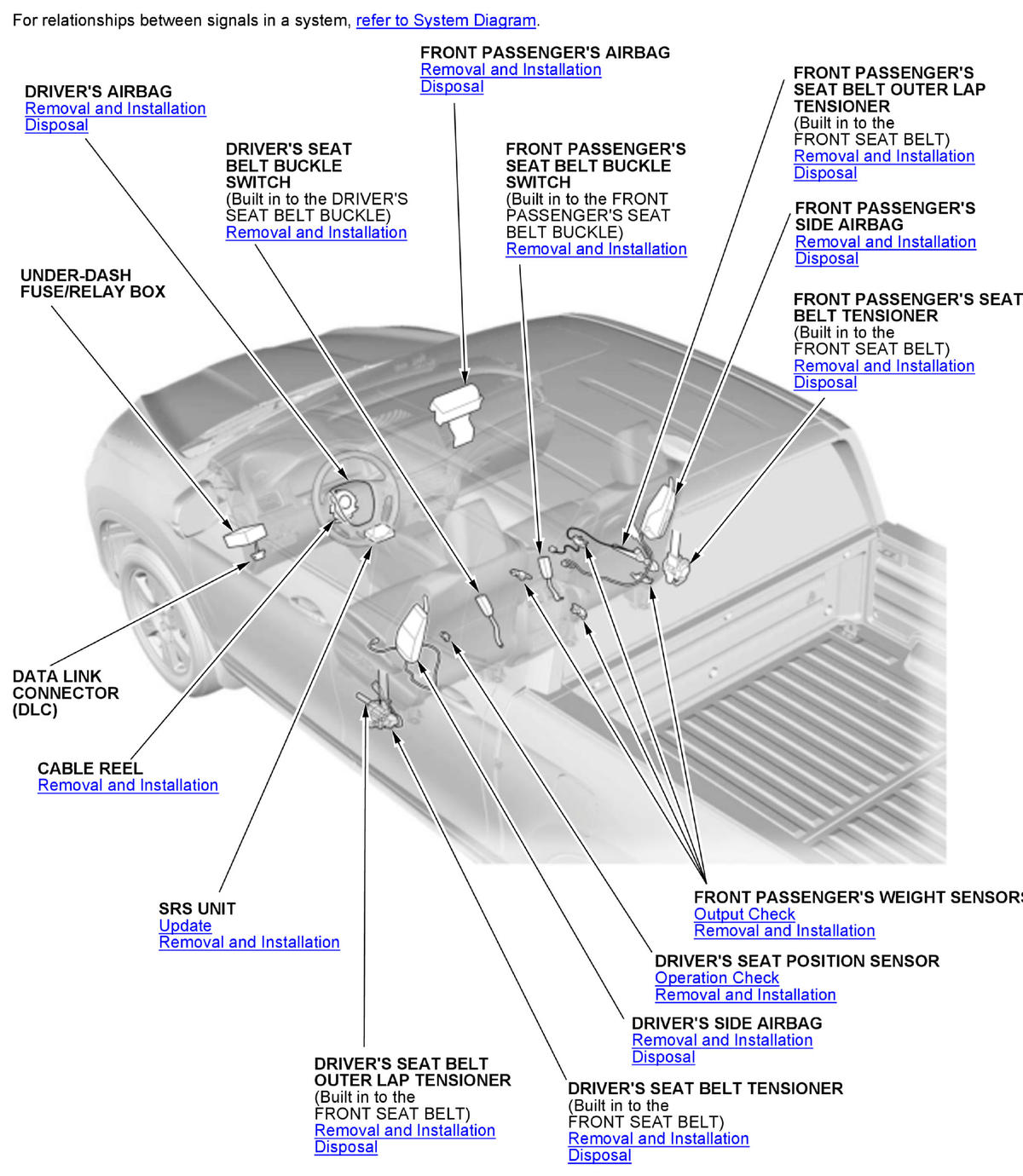

GHH460301

Courtesy of HONDA, U.S.A., INC.

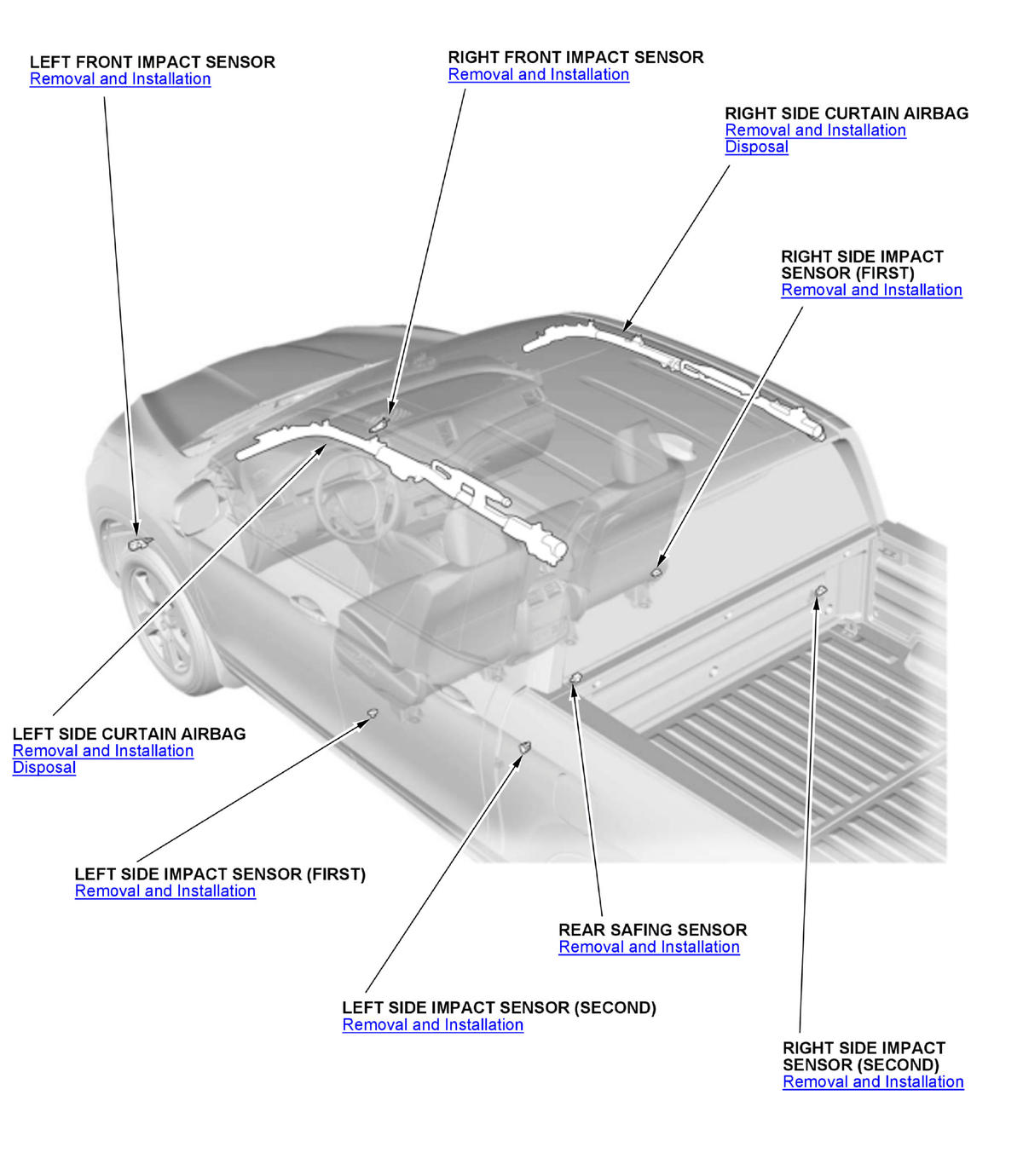

GHH460302

Courtesy of HONDA, U.S.A., INC.

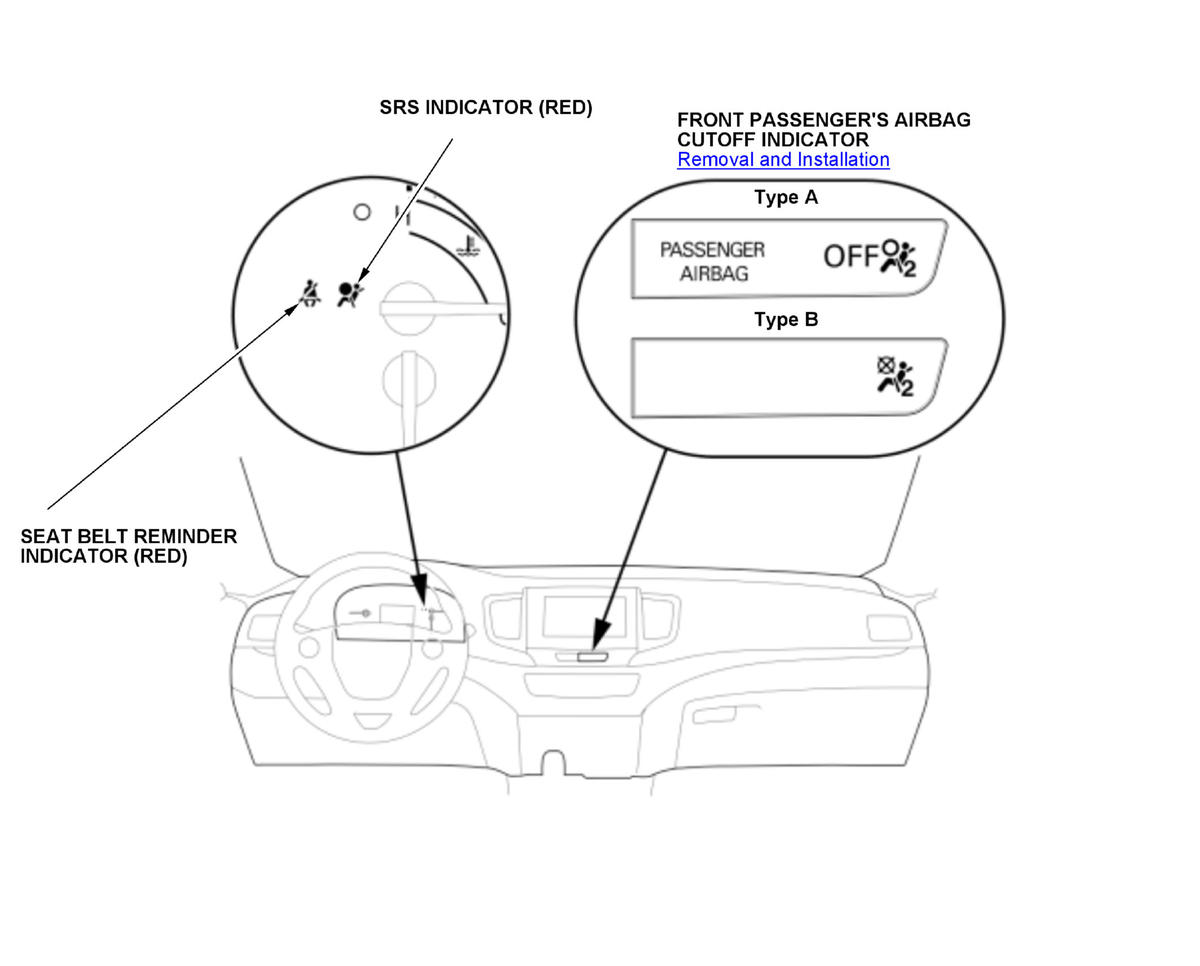

GHH460303

Courtesy of HONDA, U.S.A., INC.
