Fuel and Emissions Systems Component Location Index

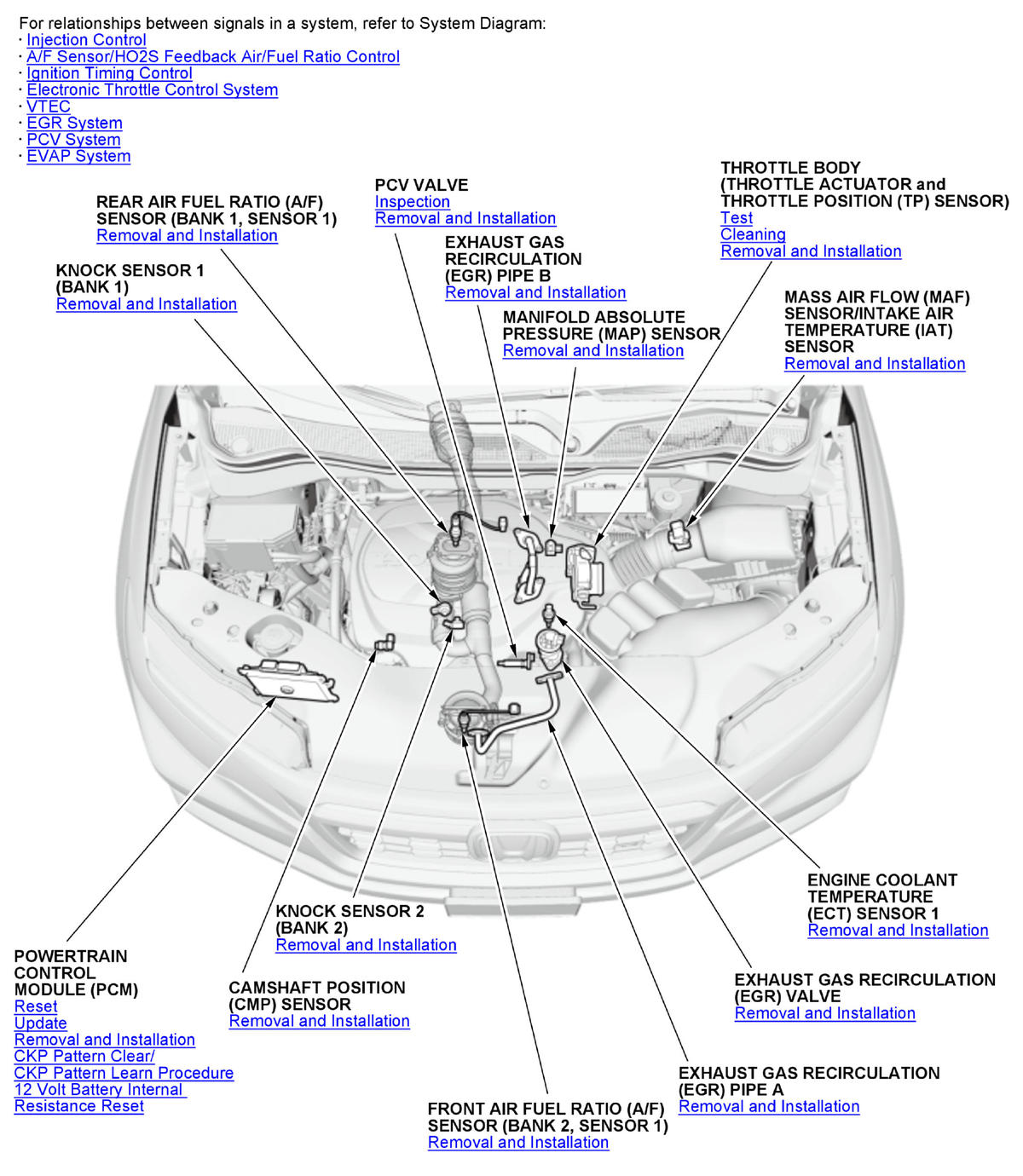

'17-19

Courtesy of HONDA, U.S.A., INC.

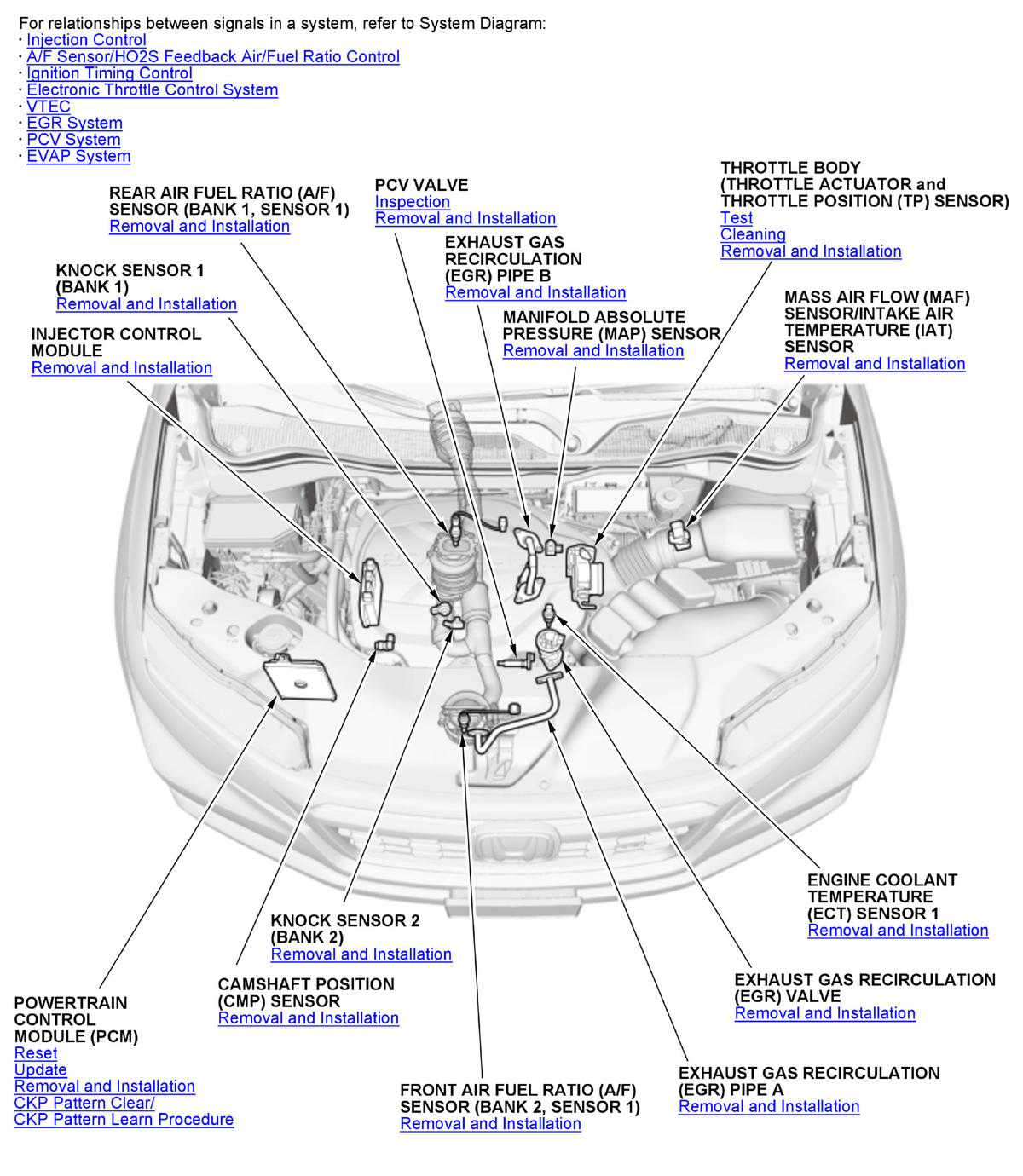

'20-23

Courtesy of HONDA, U.S.A., INC.

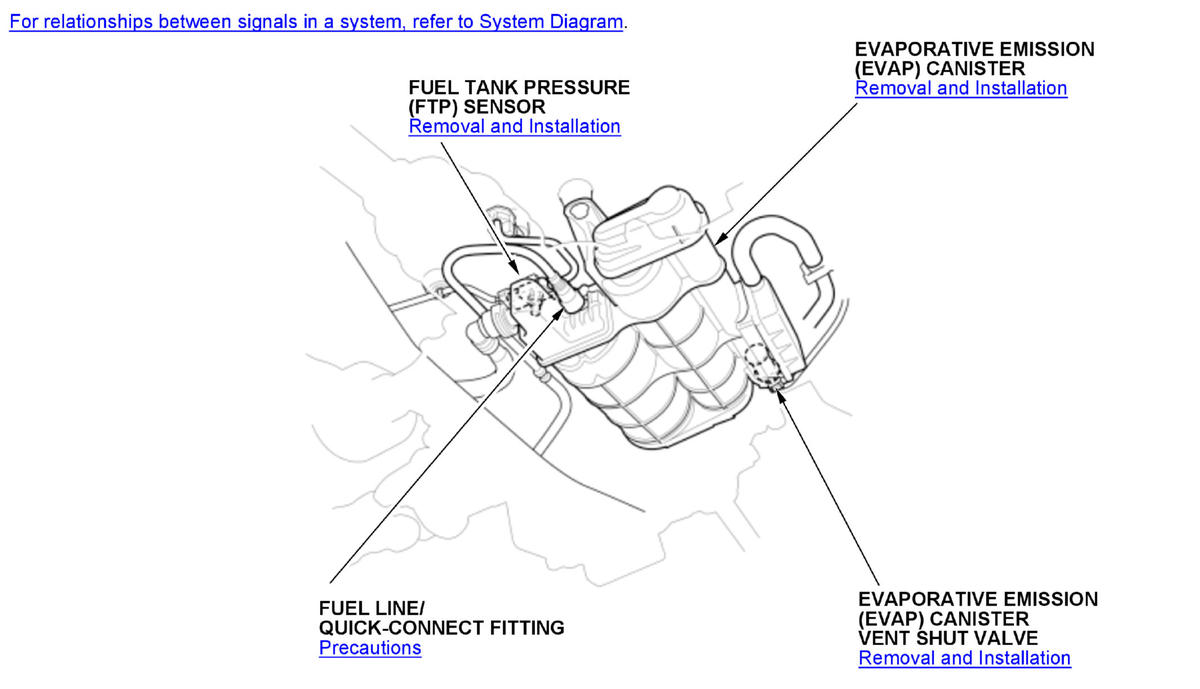

Courtesy of HONDA, U.S.A., INC.

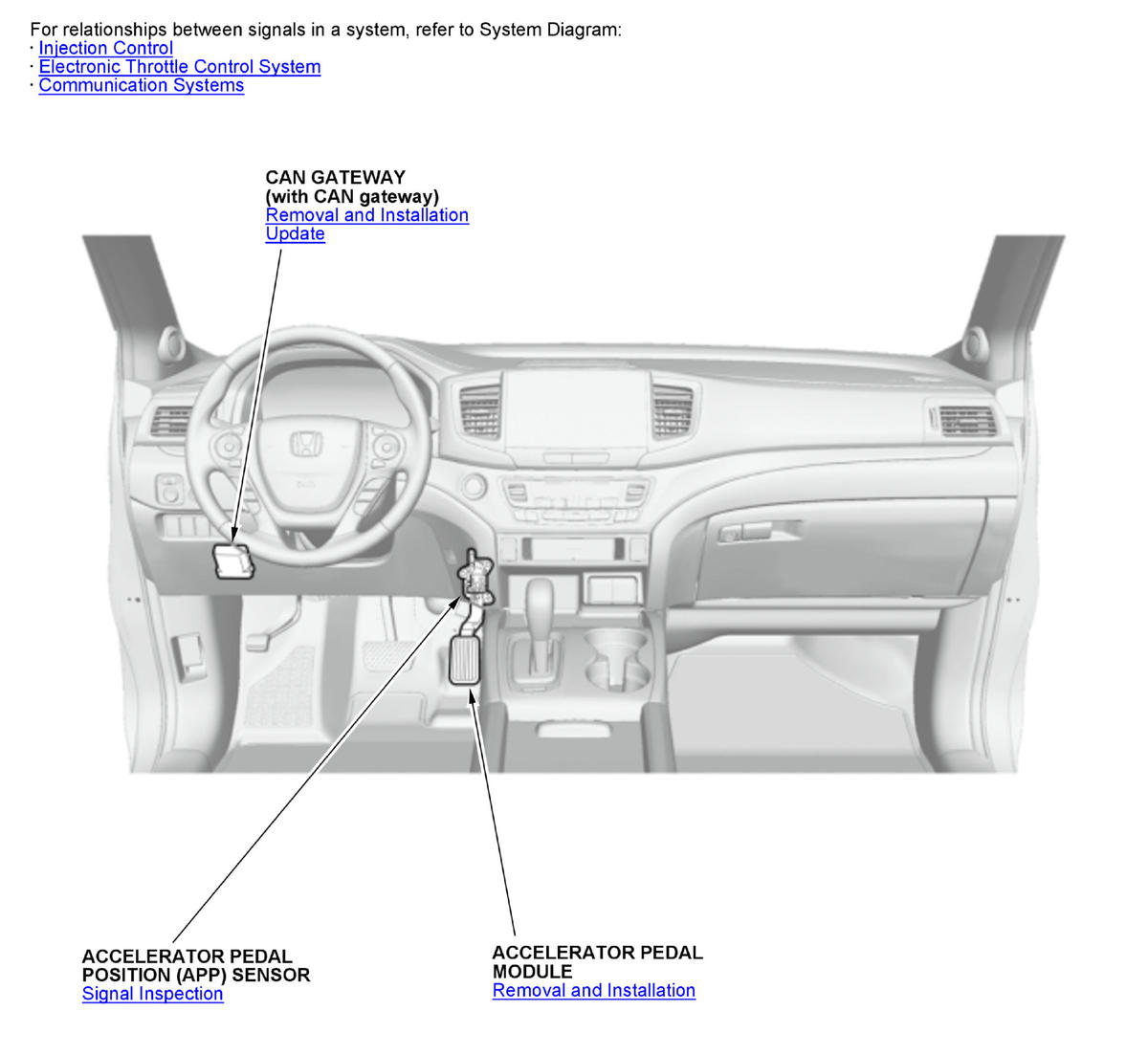

'17-19

Courtesy of HONDA, U.S.A., INC.

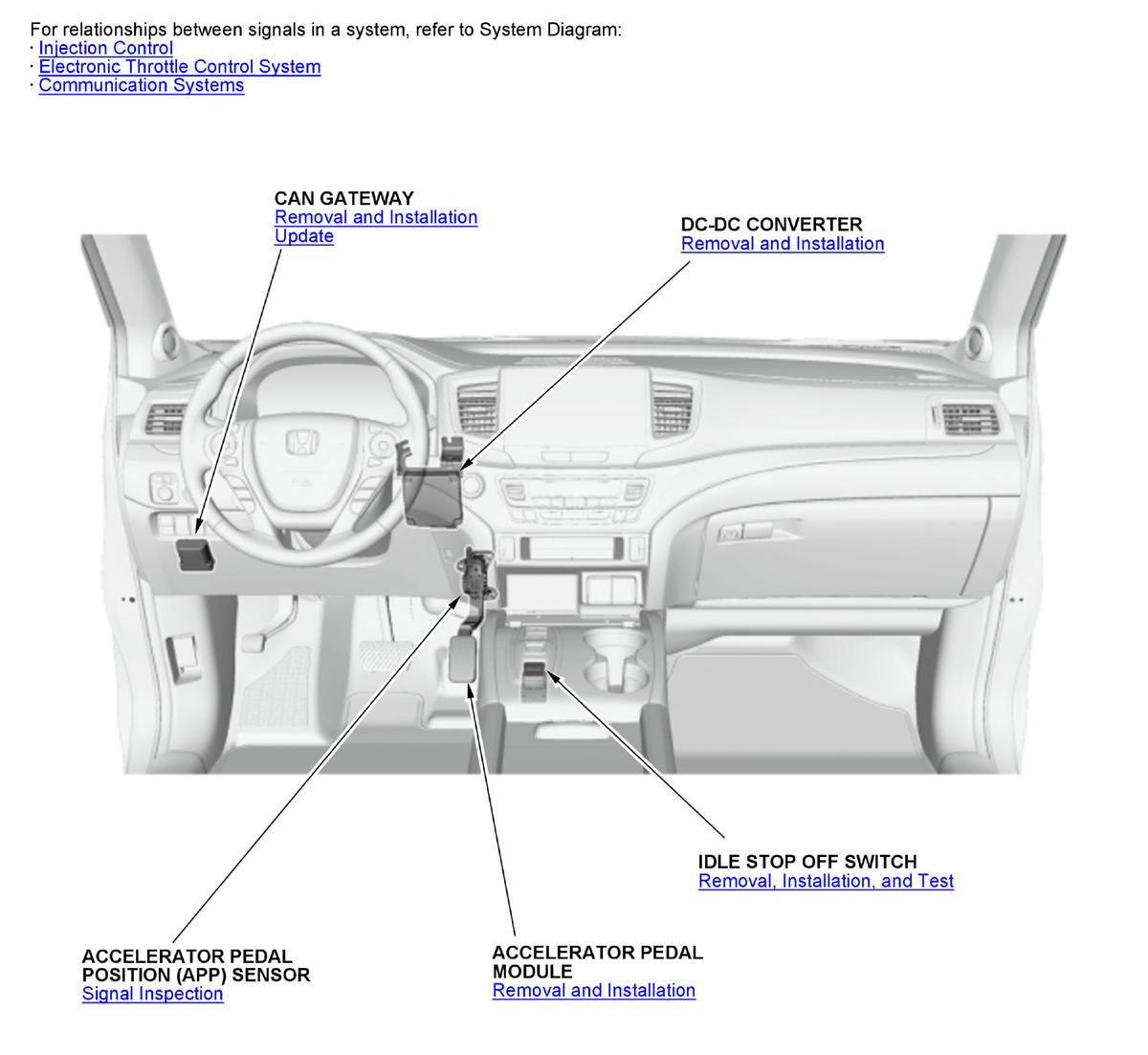

'20-23

Courtesy of HONDA, U.S.A., INC.

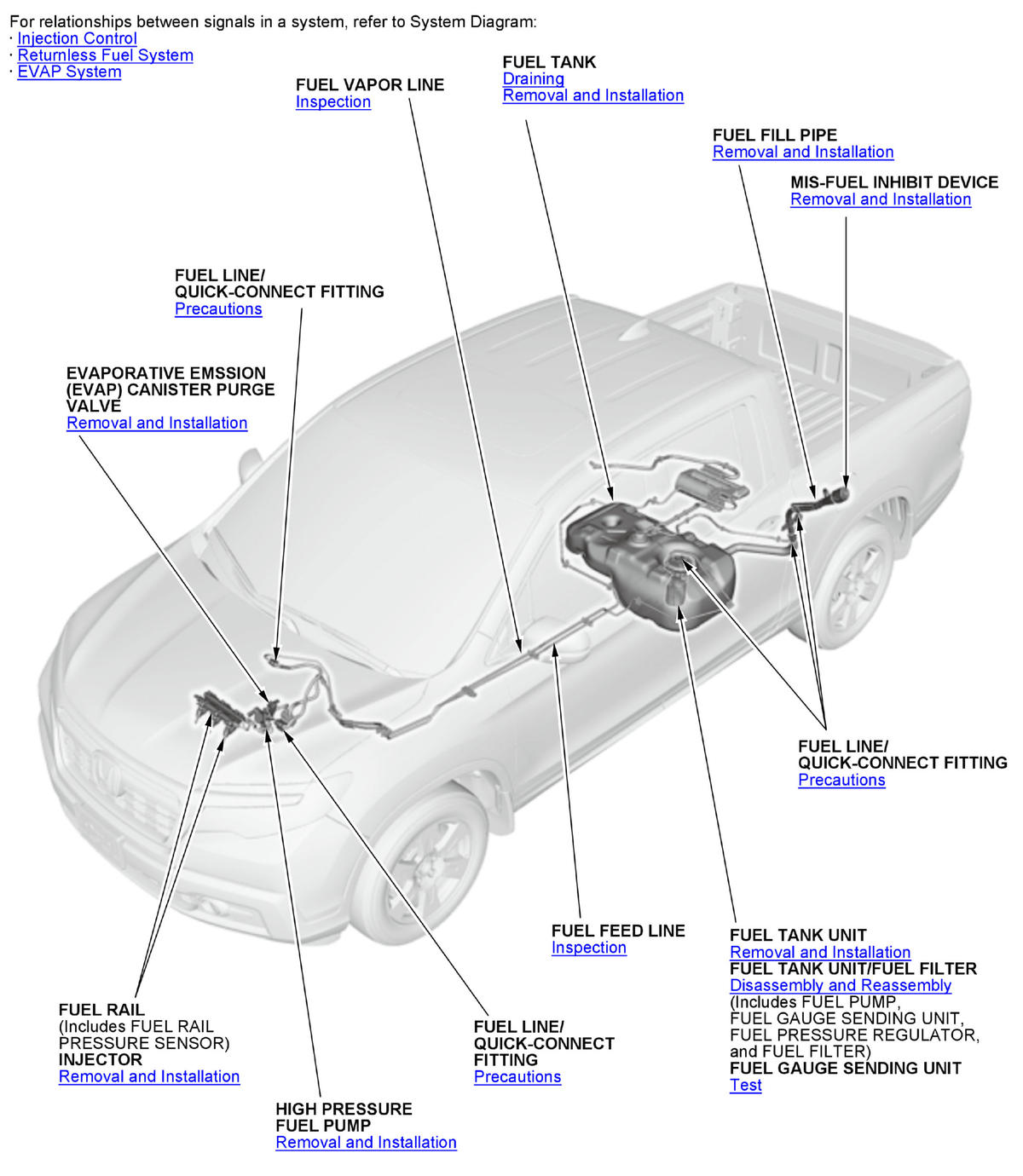

Courtesy of HONDA, U.S.A., INC.

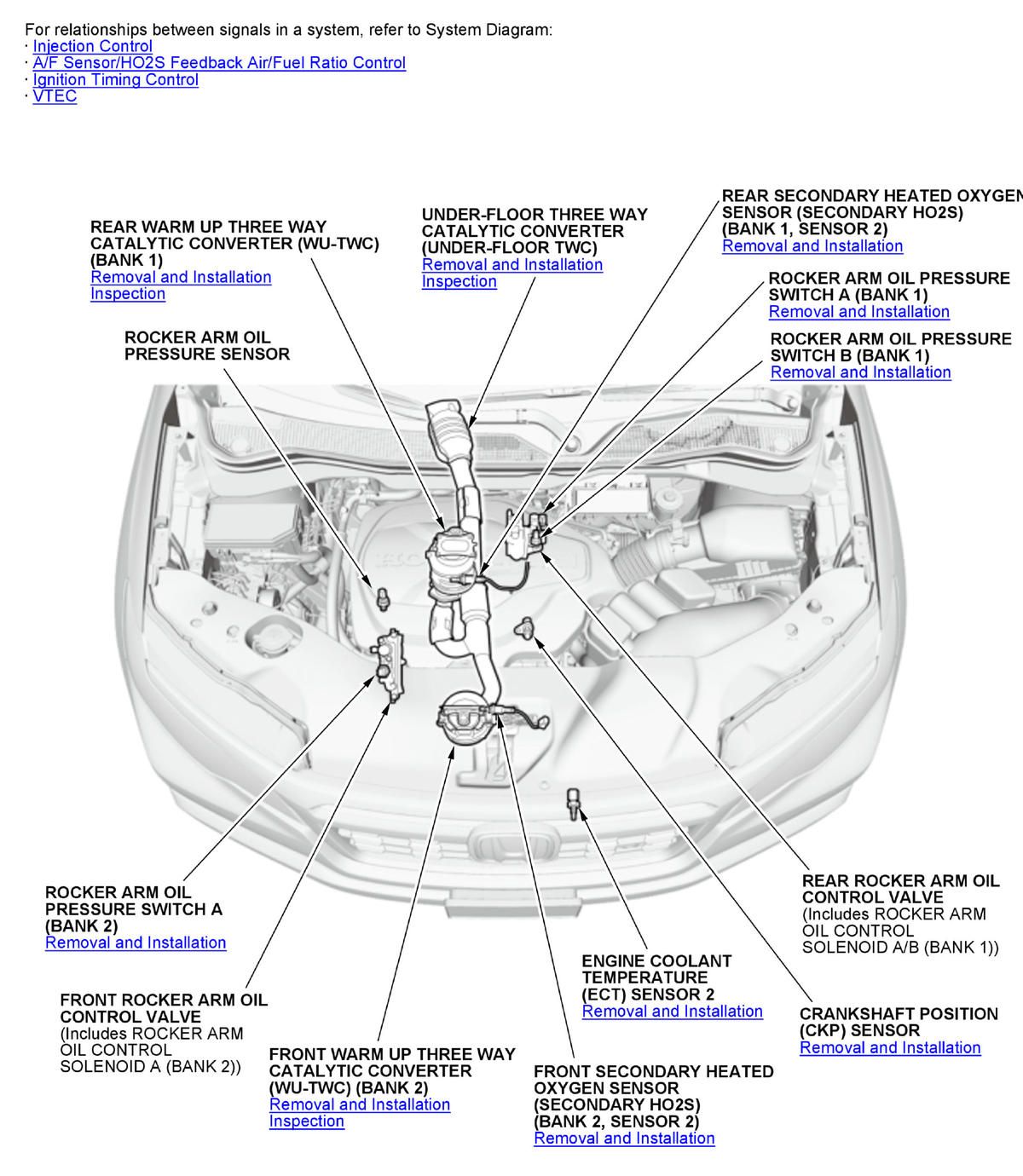

Courtesy of HONDA, U.S.A., INC.
