Moonroof Motor-Control Unit Connector for Inputs and Outputs

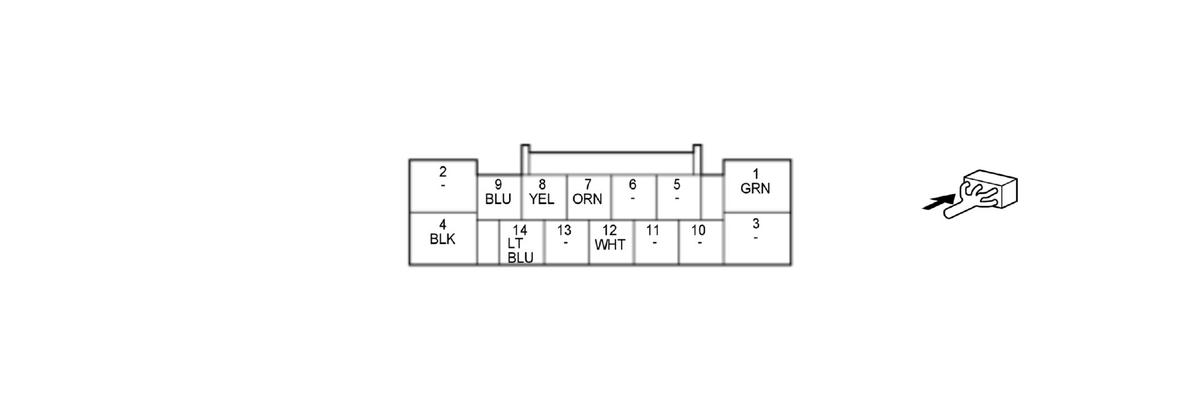

MOONROOF MOTOR-CONTROL UNIT 14P CONNECTOR (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B S/R | +B power source | About battery voltage at all times |
| 2 | --- | Not used | --- |
| 3 | --- | Not used | --- |
| 4 | PGND | Moonroof motor-control unit ground | Less than 0.2 V at all times |
| 5 | --- | Not used | --- |
| 6 | --- | Not used | --- |
| 7 | S/R SW(OPEN) | Detects moonroof switch (OPEN) signal | With moonroof switch OPEN: less than 0.2 V If none of above conditions are met: about battery voltage |
| 8 | S/R SW(TILT) | Detects moonroof switch (TILT) signal | With moonroof switch TILT: less than 0.2 V If none of above conditions are met: about battery voltage |
| 9 | S/R SW(CLOSE) | Detects moonroof switch (CLOSE) signal | With moonroof switch CLOSE: less than 0.2 V If none of above conditions are met: about battery voltage |
| 10 | --- | Not used | --- |
| 11 | --- | Not used | --- |
| 12 | LIN(WINDOW) | Communication line | --- |
| 13 | --- | Not used | --- |
