Resetting the Parking and Back-Up Sensor Control Unit: Procedure

Parking and Back-Up Sensor Control Unit - Reset
Reset the parking and back-up sensor control unit after doing any of the following actions:
- When you replace the parking and back-up sensor.
- When you change the parking and back-up sensor mounting location from the original location.
NOTE:
Before performing the resetting procedure, make sure that each the parking and back-up sensor is connected.

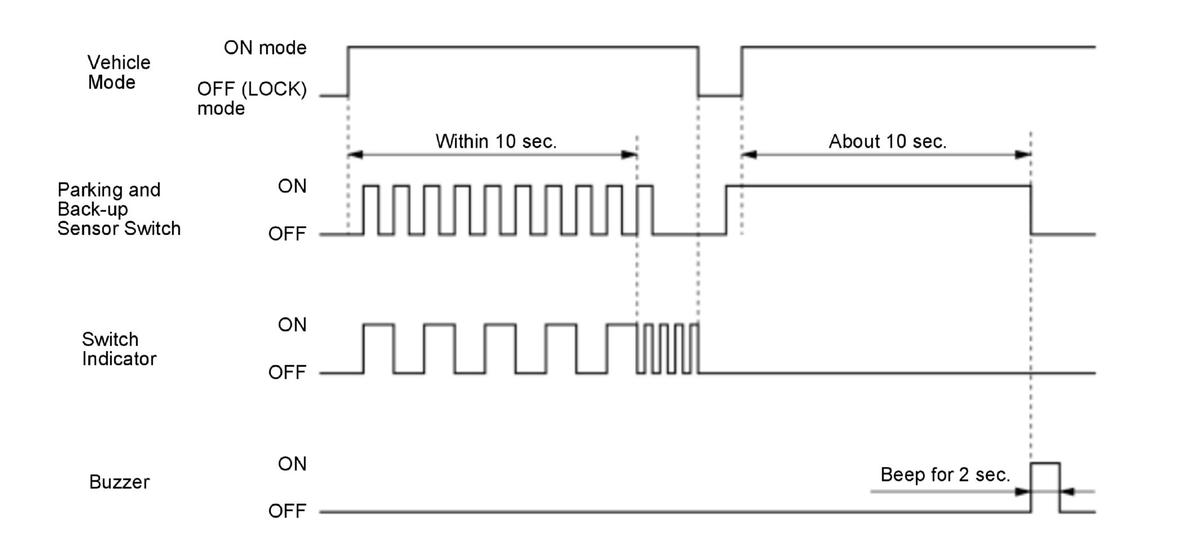

Resetting Procedure

1. Turn the vehicle to the ON mode.

2. Press the parking and back-up sensor switch 10 times, within 10 seconds.

NOTE:
Parking and back-up sensor switch indicator is blinks.

3. Turn the vehicle to the OFF (LOCK) mode.

4. Press and hold the parking and back-up sensor switch.

5. Turn the vehicle to the ON mode.

6. Wait about 10 seconds.

NOTE:
When the resetting the parking and back-up sensor control unit is successful, the buzzer sounds for 2 seconds.

Courtesy of HONDA, U.S.A., INC.

7. Press the parking and back-up sensor switch.

8. Make sure that the system works normally.
