Gauge Control Module Input Test (2017 2018 2019 2020 2021 2022 2023)
NOTE:
- Before testing, do the gauge control module self-diagnostic function , and make sure the B-CAN communication lines are OK.
- If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .
- Before testing, make sure the fuses associated with the system is OK.
1. Turn the vehicle to the OFF (LOCK) mode.
2. Disconnect the gauge control module 32P connector.

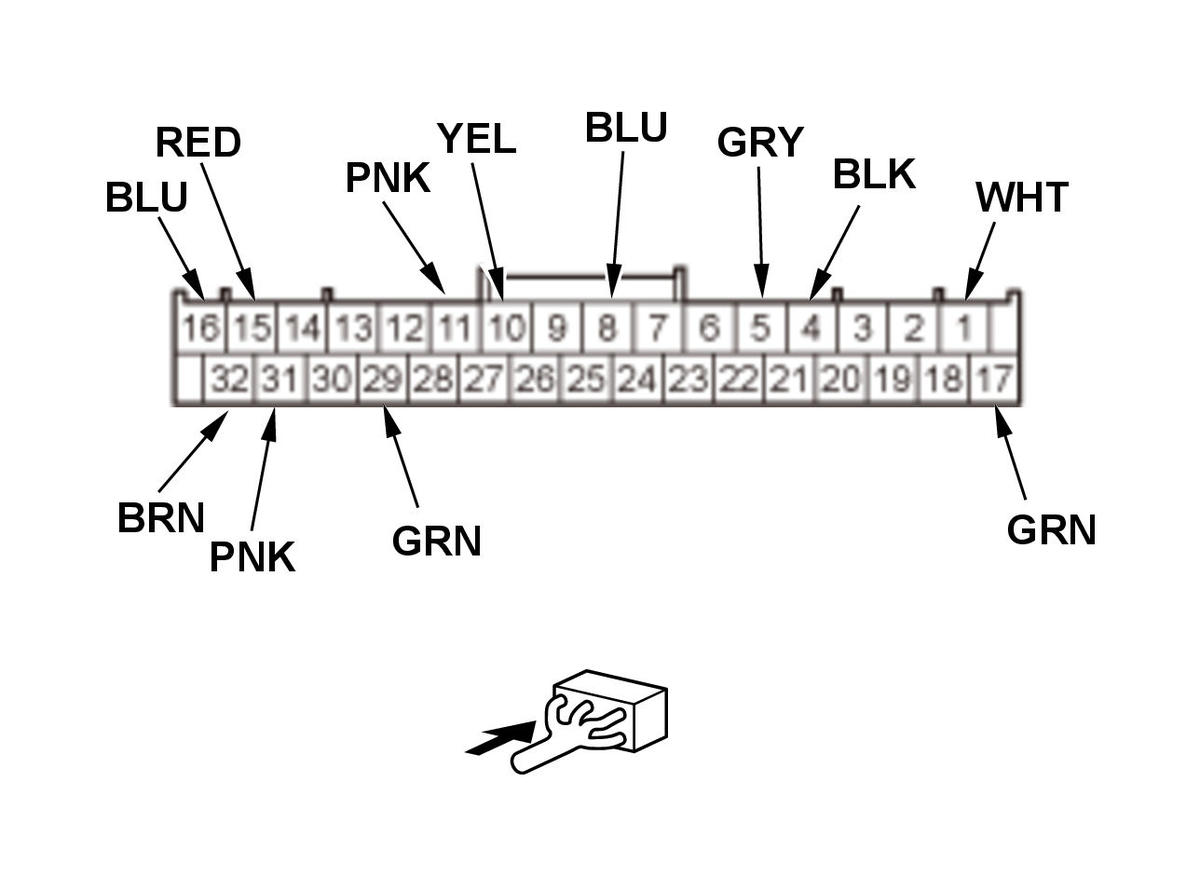

GAUGE CONTROL MODULE 32P CONNECTOR (female terminals)
3. Inspect the connector and socket terminals to be sure they are all making good contact:
- If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.
- If the terminals are OK, go to step 4.
4. With the connector still disconnected, do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 15 | RED | Combination light switch ON | Connect to ground with a jumper wire: The dashlights should come on full bright. |
|
| 16 | BLU | Combination light switch ON | Connect to ground with a jumper wire: The dashlights should come on full bright. |
|
| 10 | YEL | Parking brake pedal pressed | Check for continuity to ground: There should be continuity. |
|
| Parking brake pedal released | Check for continuity to ground: There should be no continuity. |
|
5. Reconnect the connector, and do the following input tests:
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, replace the gauge control module .
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 1 | WHT | Under all conditions | Measure the voltage to ground: There should be battery voltage. | An open or high resistance in the wire |
| 17 | GRN | Vehicle ON mode | Measure the voltage to ground: There should be battery voltage. | An open or high resistance in the wire |
| 4 | BLK | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
| 32 | BRN | In all power modes | Measure the voltage to ground: There should be less than 0.2 V. |
|
| 11 | PNK | Vehicle ON mode, brake fluid is at full level in the reservoir | Measure the voltage to ground: There should be battery voltage. |
|
| Vehicle ON mode, brake fluid is at lower level in the reservoir | Measure the voltage to ground: There should be less than 0.2 V. |
|
||
| 31 | PNK | Vehicle ON mode, dashlights brightness control ILLUMI (-) button pushed | Measure the voltage to ground: There should be less than 0.2 V. |
|
| Vehicle ON mode, dashlights brightness control ILLUMI (-) button released | Measure the voltage to ground: There should be battery voltage. |
|
||
| 29 | GRN | Vehicle ON mode, dashlights brightness control ILLUMI (+) button pushed | Measure the voltage to ground: There should be less than 0.2 V. |
|
| Vehicle ON mode, dashlights brightness control ILLUMI (+) button released | Measure the voltage to ground: There should be battery voltage. |
|
||
| 8 | BLU | Vehicle ON mode, ECON mode ON | Measure the voltage to ground: There should be less than 0.2 V |
|
| Vehicle ON mode, ECON mode OFF | Measure the voltage to ground: There should be battery voltage. |
|
*: With washer fluid level sensor
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if desired result is not obtained |
|---|---|---|---|---|
| 5* | GRY | Vehicle ON mode, washer fluid is half or more in the washer reservoir | Measure the voltage to ground: There should be battery voltage. |
|
| Vehicle ON mode, washer fluid is empty in the washer reservoir | Measure the voltage to ground: There should be less than 0.2 V. |
|
*: With washer fluid level sensor
