Parking and Back-Up Sensor System Description (2024 2025)
Overview
The parking and back-up sensor system measures distances to objects by transmitting ultrasonic waves and receiving the echo from sound waves bouncing off nearby objects. It informs drivers of nearby objects with audible warning signals as well as visual signs through the multi-information display (MID) in the gauge control module.
Parking and Back-Up Sensor System Operation
The sensors send out ultrasonic waves, receive waves reflected by an obstacle, determine the distance, and use the buzzer and/or multi-information display (MID) to tell the driver that an obstacle is near.
- The front corner sensors work any time the shift lever is shifted out of P position/mode, until the vehicle reaches about 8.7 mph (14 km/h). They do not come back on until slowing down to about 5.6 mph (9 km/h) or less.
- The rear corner and rear center sensors are only activated in the R position/mode.
- The parking and back-up sensor system is active when its switch is ON.
- The system check is performed each time the parking and back-up sensor switch is turned on with the vehicle in the ON mode.
- The sensors must be free of debris, snow, and ice to work correctly.
Sound Pattern of the Parking and Back-Up Sensor Beeper
Intermittent/continuous alarm sounding is performed by obstacle detection indication requests and alarm sounding requests from the parking sensor system, according to the distance and the display of the obstacle detection location. A warning message is generated in case of a failure of the parking sensor system.

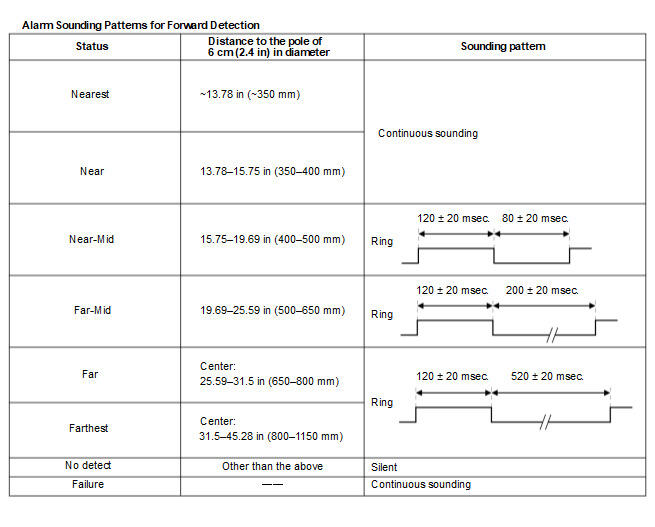

Front

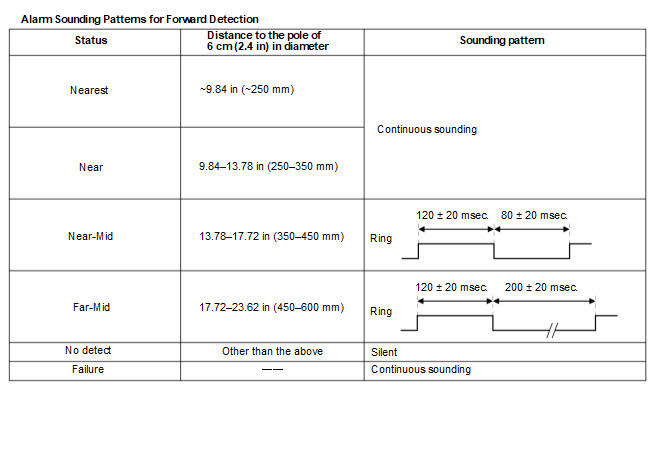

Rear
