Parking and Back-Up Sensor Control Unit Connector for Inputs and Outputs

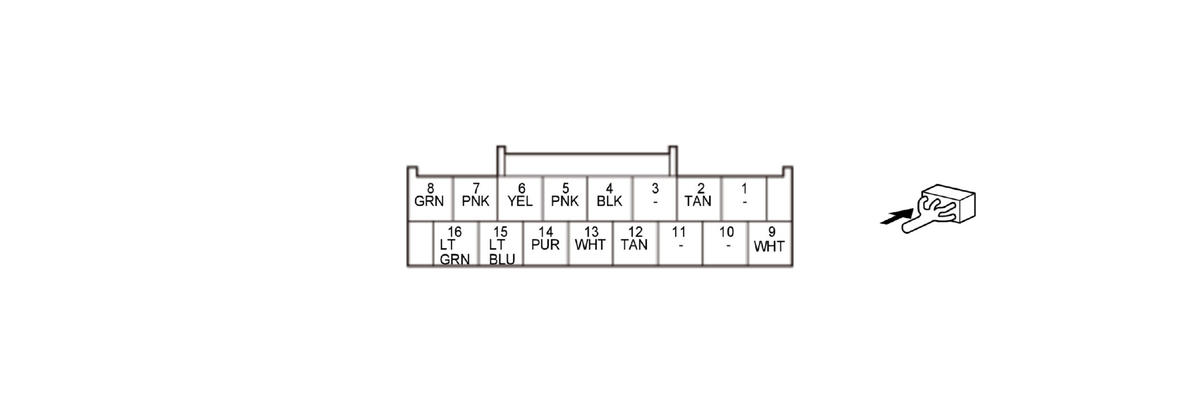

PARKING and BACK-UP SENSOR CONTROL UNIT 16P CONNECTOR (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	---	Not used	---
2	B-CAN_L	Communication line	---
3	---	Not used	---
4	SGND	Parking and back-up sensor control unit ground	Less than 0.2 V at all times
5	SW IND	Detects parking and back-up sensor switch indicator signal	With parking and back-up sensor switch indicator OFF: about battery voltage With parking and back-up sensor switch indicator ON: less than 0.2 V
6	FSS L	Detects front sensor (FSS L) signal	---
7	FSP L	Detects front sensor (FSP L) signal	---
8	IG1 METER	IG1 power source	With vehicle in ON or START mode: about battery voltage
9	B-CAN_H	Communication line	---
10	---	Not used	---
11	---	Not used	---
12	RSG L	Detects rear sensor (RSG L) signal	---
13	FSG L	Detects front sensor (FSG L) signal	---
14	RSS L	Detects rear sensor (RSS L) signal	---
15	PARK SNSR SW	Detects parking and back-up sensor switch signal	With vehicle in ON mode and parking and back-up sensor switch ON: about battery voltage With parking and back-up sensor switch OFF: less than 0.2 V
16	RSP L	Detects rear sensor (RSP L) signal	---
