Gauge Control Module Connector for Inputs and Outputs (2020 2021 2022 2023 2024 2025)

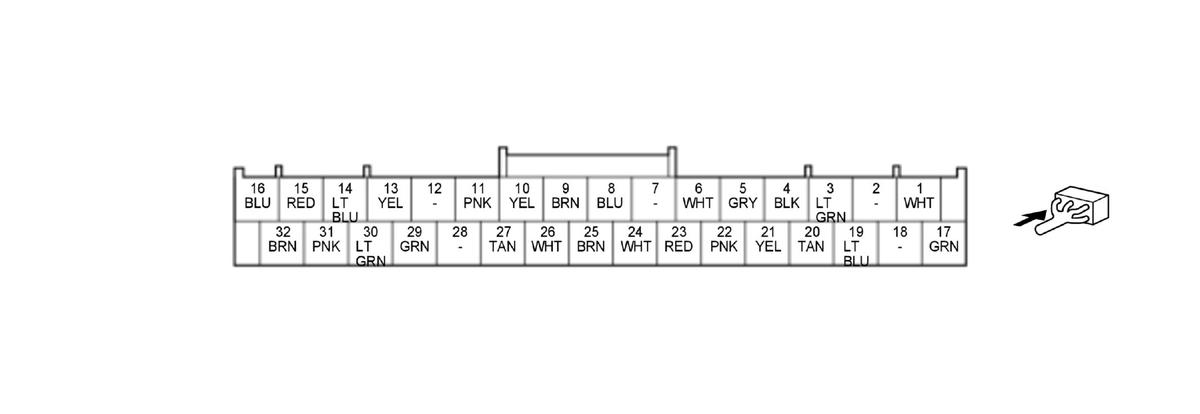

GAUGE CONTROL MODULE 32P CONNECTOR (female terminals)

Courtesy of HONDA, U.S.A., INC.

Terminal number	Terminal name	Description	Signal
1	+B BACKUP	+B power source	About battery voltage at all times
2	---	Not used	---
3	DISTANCE SW	Detects ACC combination switch (DISTANCE) signal	With vehicle in ON mode: about 0.8 - 4.4 V (depending on distance switch)
4	GND	Gauge control module ground	Less than 0.2 V at all times
5* 1	WASHER LVL SNSR	Detects washer fluid level switch signal	With vehicle in ON mode and washer fluid level switch OFF: about battery voltage With vehicle in ON mode and washer fluid level switch ON: less than 0.2 V
6	CMBS SW	Detects CMBS OFF switch signal	With vehicle in ON mode and CMBS OFF switch OFF: about battery voltage With vehicle in ON mode and CMBS OFF switch ON: less than 0.2 V
7	---	Not used	---
8	ECON SW	Detects ECON switch signal	With vehicle in ON mode and ECON switch released: about battery voltage With vehicle in ON mode and ECON switch pressed: less than 0.2 V
9	VSA OFF SW	Detects VSA OFF switch signal	With vehicle in ON mode and VSA OFF switch released: about battery voltage With vehicle in ON mode and VSA OFF switch pressed: less than 0.2 V
10	PARKING SW	Detects PARKING SW signal	With vehicle in ON mode and parking brake switch OFF: about battery voltage With vehicle in ON mode and parking brake switch ON: less than 0.2 V
11	BRAKE FLUID LVL	Detects parking brake switch signal	With vehicle in ON mode and brake fluid level switch OFF: about battery voltage With vehicle in ON mode and brake fluid level switch ON: less than 0.2 V
12	---	Not used	---
13	I/S SW	Detects idle stop OFF switch signal	With vehicle in ON mode and idle stop OFF switch OFF: about battery voltage With vehicle in ON mode and idle stop OFF switch ON: less than 0.2 V

*1: With washer fluid level sensor

*2: 2WD

*3: AWD

Terminal number	Terminal name	Description	Signal
14	TERRAIN SW	Detects snow switch signal* 2	With vehicle in ON mode and snow switch released: about battery voltage With vehicle in ON mode and snow switch pressed: less than 0.2 V
14	TERRAIN SW	Detects intelligent traction management switch signal* 3	With vehicle in ON mode and intelligent traction management switch released: about battery voltage With vehicle in ON mode and intelligent traction management switch pressed: less than 0.2 V
15	ILLUMI-(LED)	Detects illumination signal	---
16	ILLUM-(BULB)	Detects illumination signal	---
17	IG1 METER(DC/DC)	IG1 power source	With vehicle in ON or START mode: about battery voltage
18	---	Not used	---
19	INFO SW	Detects select/reset/information switch signal	With vehicle in ON mode: about 0.8 - 4.4 V (depending on select/reset/information switch)
20	DISTANCE SW GND	Ground for ACC combination switch, select/reset/information switch	Less than 0.2 V at all times
21	FUEL+	Detects fuel gauge sending unit signal	---
22	FUEL-	Ground for fuel gauge sending unit	Less than 0.2 V at all times
23	LIN(METER)	Communication line	---
24	F-CAN A_H	Communication line	---
25	F-CAN A_L	Communication line	---
26	B-CAN_H	Communication line	---
27	B-CAN_L	Communication line	---
28	---	Not used	---
29	ILL VOL+	Detects dashlights brightness control switch signal	With vehicle in ON mode and dashlights brightness control switch (+) OFF: about battery voltage With vehicle in ON mode and dashlights brightness control switch (+) ON: less than 0.2 V
30	CRUISE SW	Detects ACC combination switch (CRUISE) signal	With vehicle in ON mode: about 0.8 - 4.4 V (depending on ACC combination switch (CRUISE))
31	ILL VOL-	Detects dashlights brightness control switch signal	With vehicle in ON mode and dashlights brightness control switch control switch (-) OFF: about battery voltage With vehicle in ON mode and dashlights brightness control switch control switch (-) ON: less than 0.2 V
32	PGND	Gauge control module ground	Less than 0.2 V at all times

*1: With washer fluid level sensor

*2: 2WD

*3: AWD
