Gauge Control Module Connector for Inputs and Outputs (2017 2018 2019)

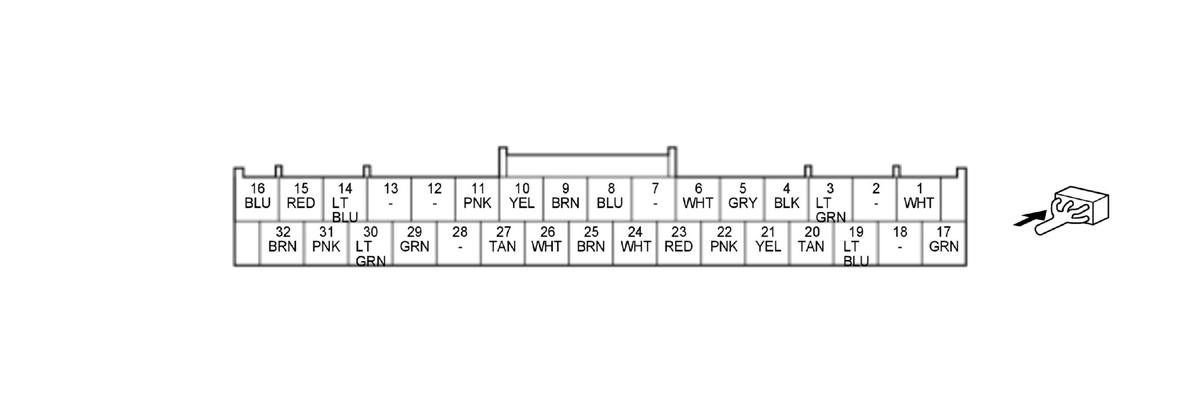

GAUGE CONTROL MODULE 32P CONNECTOR (female terminals)
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 1 | +B BACKUP | +B power source | About battery voltage at all times |
| 2 | --- | Not used | --- |
| 3* 1 | DISTANCE SW | Detects ACC combination switch (DISTANCE) signal | With vehicle in ON mode: about 0.8 - 4.4 V (depending on distance switch) |
| 4 | GND | Gauge control module ground | Less than 0.2 V at all times |
| 5* 2 | WASHER LVL SNSR | Detects washer fluid level switch signal | With vehicle in ON mode and washer fluid level switch OFF: about battery voltage With vehicle in ON mode and washer fluid level switch ON: less than 0.2 V |
| 6* 3 | CMBS SW | Detects CMBS OFF switch signal | With vehicle in ON mode and CMBS OFF switch OFF: about battery voltage With vehicle in ON mode and CMBS OFF switch ON: less than 0.2 V |
| 7 | --- | Not used | --- |
| 8 | ECON SW | Detects ECON switch signal | With vehicle in ON mode and ECON switch released: about battery voltage With vehicle in ON mode and ECON switch pressed: less than 0.2 V |
| 9 | VSA OFF SW | Detects VSA OFF switch signal | With vehicle in ON mode and VSA OFF switch released: about battery voltage With vehicle in ON mode and VSA OFF switch pressed: less than 0.2 V |
| 10 | PARKING SW | Detects PARKING SW signal | With vehicle in ON mode and parking brake switch OFF: about battery voltage With vehicle in ON mode and parking brake switch ON: less than 0.2 V |
| 11 | BRAKE FLUID LVL | Detects parking brake switch signal | With vehicle in ON mode and brake fluid level switch OFF: about battery voltage With vehicle in ON mode and brake fluid level switch ON: less than 0.2 V |
| 12 | --- | Not used | --- |
| 13 | --- | Not used | --- |
| 14* 4 | TERRAIN SW | Detects snow switch signal | With vehicle in ON mode and snow switch released: about battery voltage With vehicle in ON mode and snow switch pressed: less than 0.2 V |
*1: With ACC
*2: With washer fluid level sensor
*3: With CMBS
*4: 2WD
*5: AWD
*6: Without ACC
| Terminal number | Terminal name | Description | Signal |
|---|---|---|---|
| 14* 5 | TERRAIN SW | Detects intelligent traction management switch signal | With vehicle in ON mode and intelligent traction management switch released: about battery voltage With vehicle in ON mode and intelligent traction management switch pressed: less than 0.2 V |
| 15 | ILLUMI-(LED) | Detects illumination signal | --- |
| 16 | ILLUM-(BULB) | Detects illumination signal | --- |
| 17 | IG1 METER | IG1 power source | With vehicle in ON or START mode: about battery voltage |
| 18 | --- | Not used | --- |
| 19 | INFO SW | Detects select/reset/information switch signal | With vehicle in ON mode: about 0.8 - 4.4 V (depending on select/reset/information switch) |
| 20 | DISTANCE SW GND | Ground for ACC combination switch* 1, cruise control combination switch* 6, select/reset/information switch | Less than 0.2 V at all times |
| 21 | FUEL+ | Detects fuel gauge sending unit signal | --- |
| 22 | FUEL- | Ground for fuel gauge sending unit | --- |
| 23 | LIN(METER) | Communication line | --- |
| 24 | F-CAN_H | Communication line | --- |
| 25 | F-CAN_L | Communication line | --- |
| 26 | B-CAN_H | Communication line | --- |
| 27 | B-CAN_L | Communication line | --- |
| 28 | --- | Not used | --- |
| 29 | ILL VOL+ | Detects dashlights brightness control switch signal | With vehicle in ON mode and dashlights brightness control switch (+) OFF: about battery voltage With vehicle in ON mode and dashlights brightness control switch (+) ON: less than 0.2 V |
| 30* 1 | CRUISE SW | Detects ACC combination switch (CRUISE) signal | With vehicle in ON mode: about 0.8 - 4.4 V (depending on ACC combination switch (CRUISE)) |
| 30* 6 | CRUISE SW | Detects cruise control combination switch signal | With vehicle in ON mode: about 0.8 - 4.4 V (depending on cruise control combination switch) |
| 31 | ILL VOL- | Detects dashlights brightness control switch signal | With vehicle in ON mode and dashlights brightness control switch control switch (-) OFF: about battery voltage With vehicle in ON mode and dashlights brightness control switch control switch (-) ON: less than 0.2 V |
| 32 | PGND | Gauge control module ground | Less than 0.2 V at all times |
*1: With ACC
*2: With washer fluid level sensor
*3: With CMBS
*4: 2WD
*5: AWD
*6: Without ACC
