Parking and Back-Up Sensor System Component Location Index (2017 2018 2019 2020)

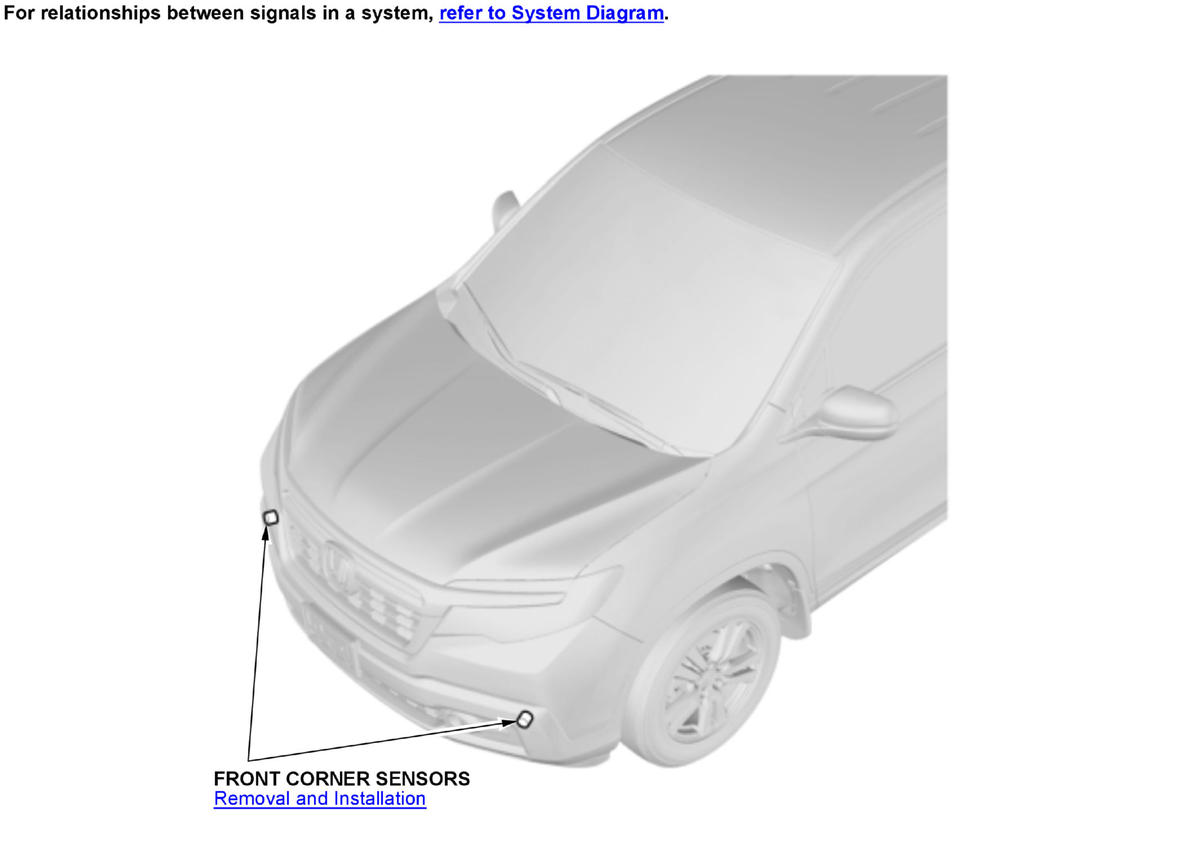

GHH456406

Courtesy of HONDA, U.S.A., INC.

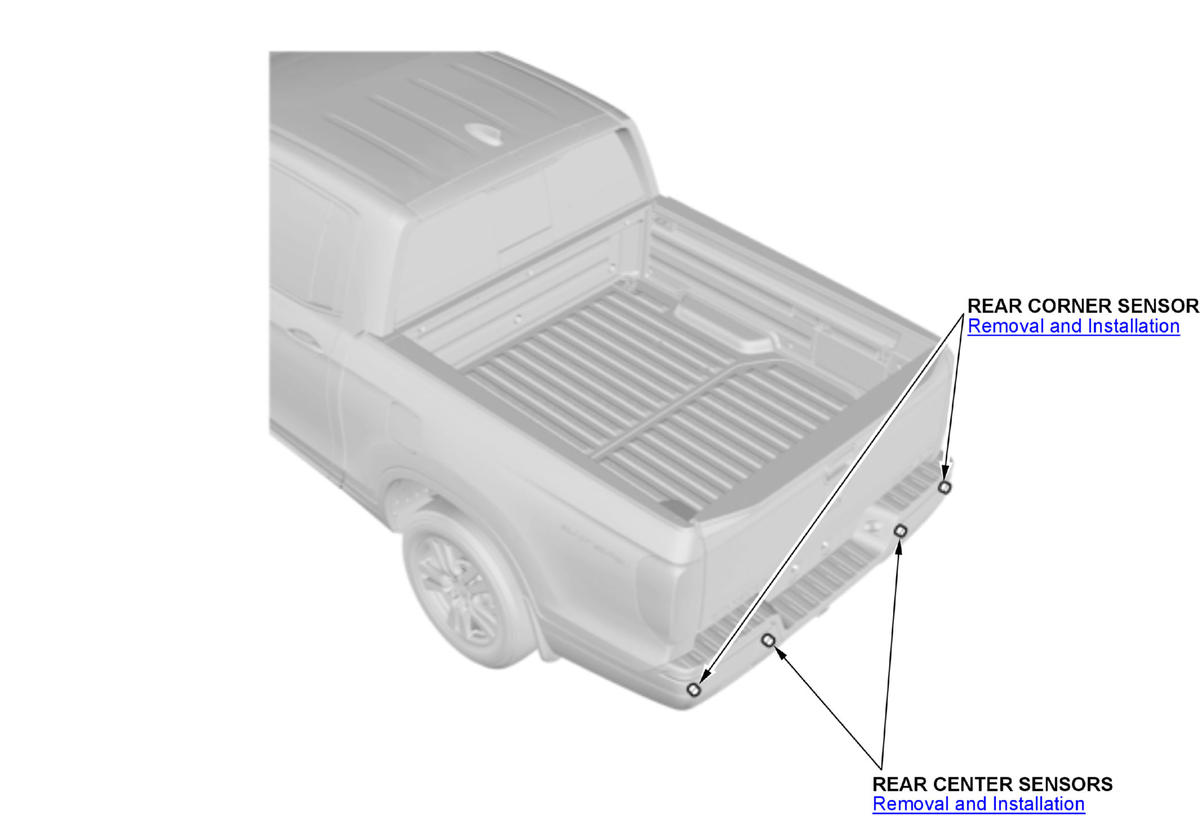

GHH456407

Courtesy of HONDA, U.S.A., INC.

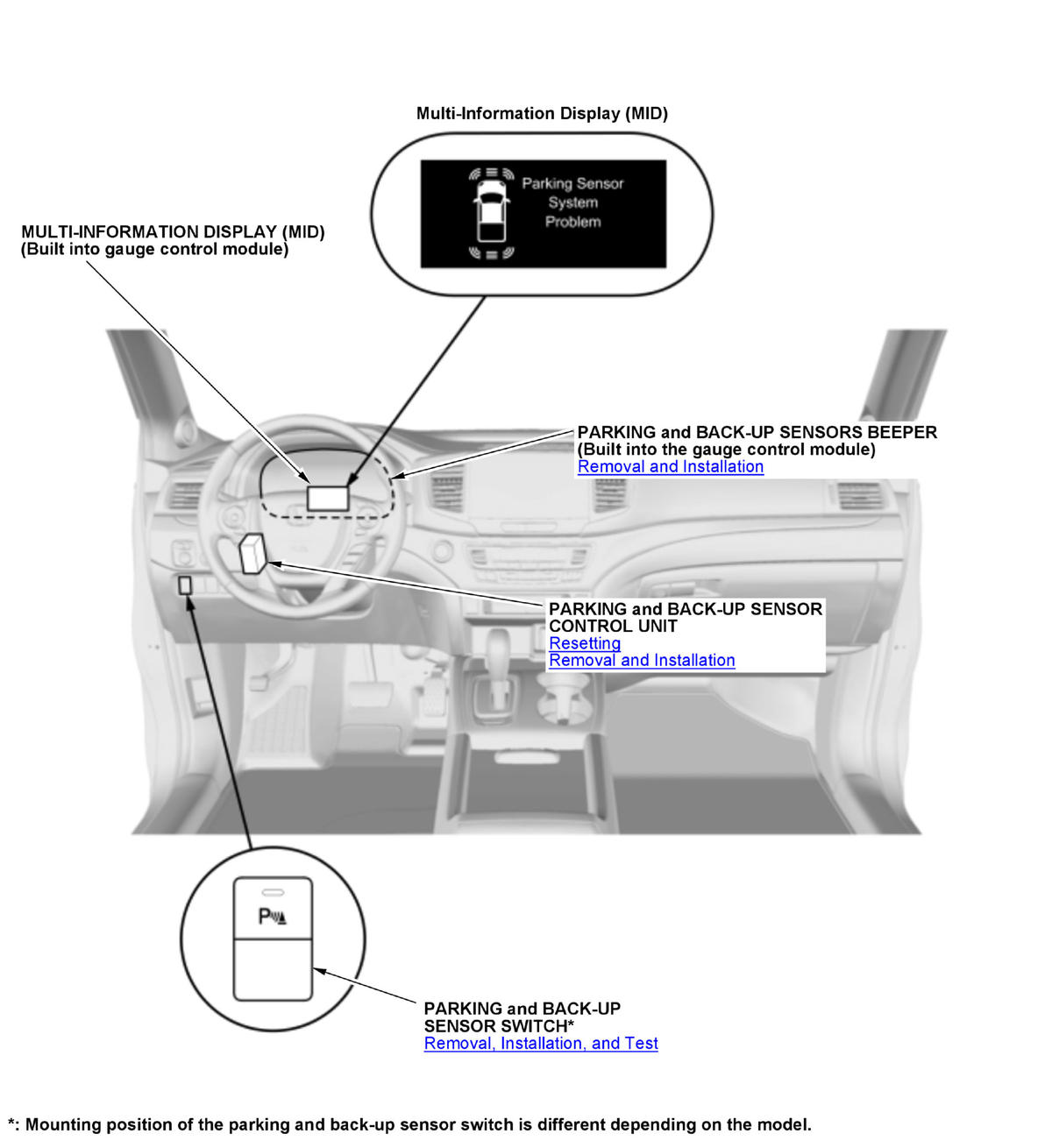

GHH456408

Courtesy of HONDA, U.S.A., INC.
