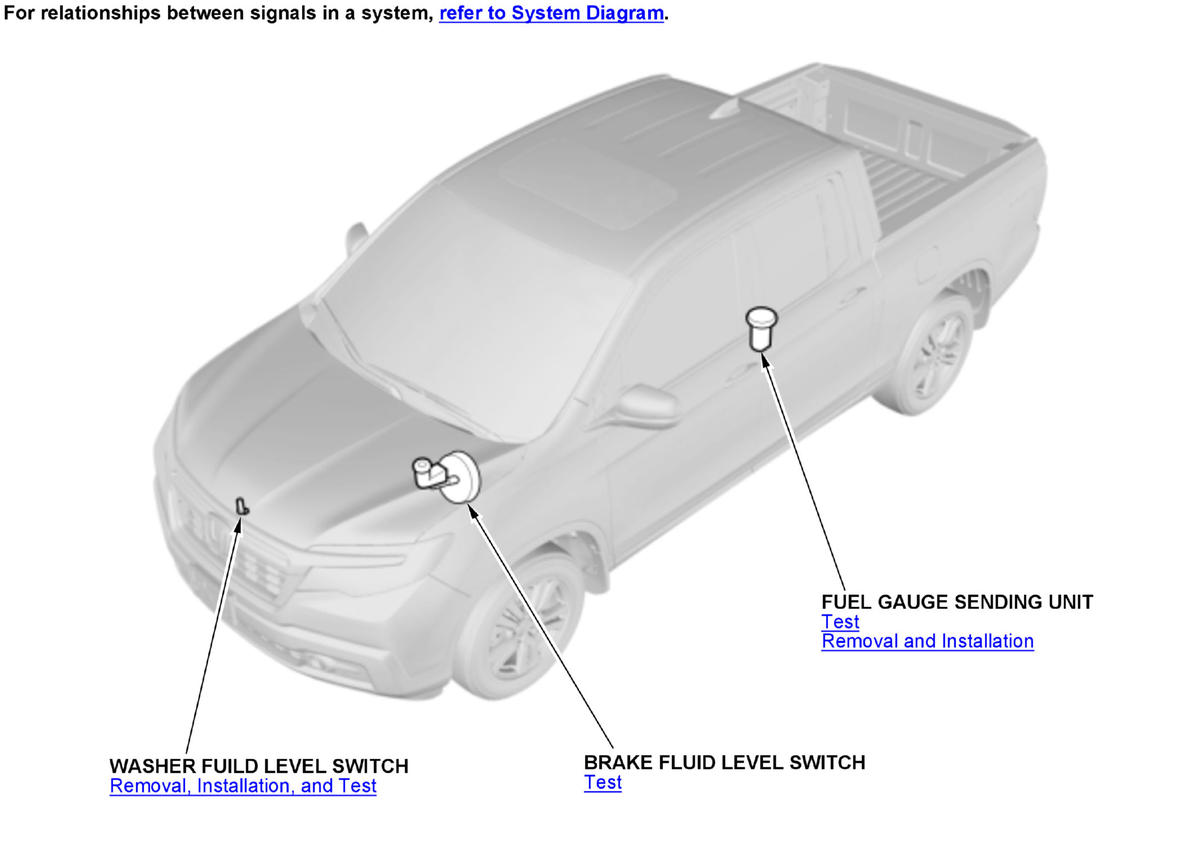

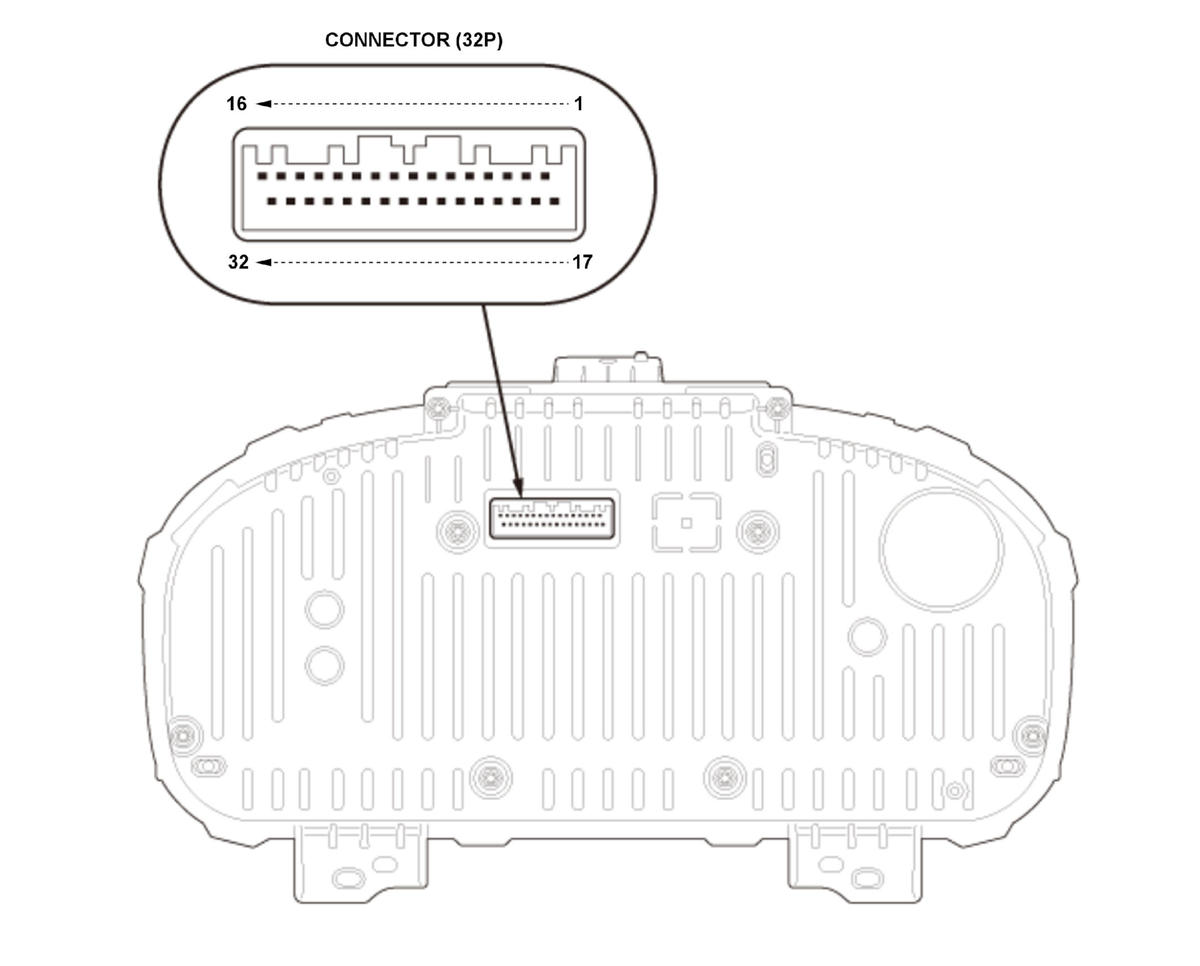

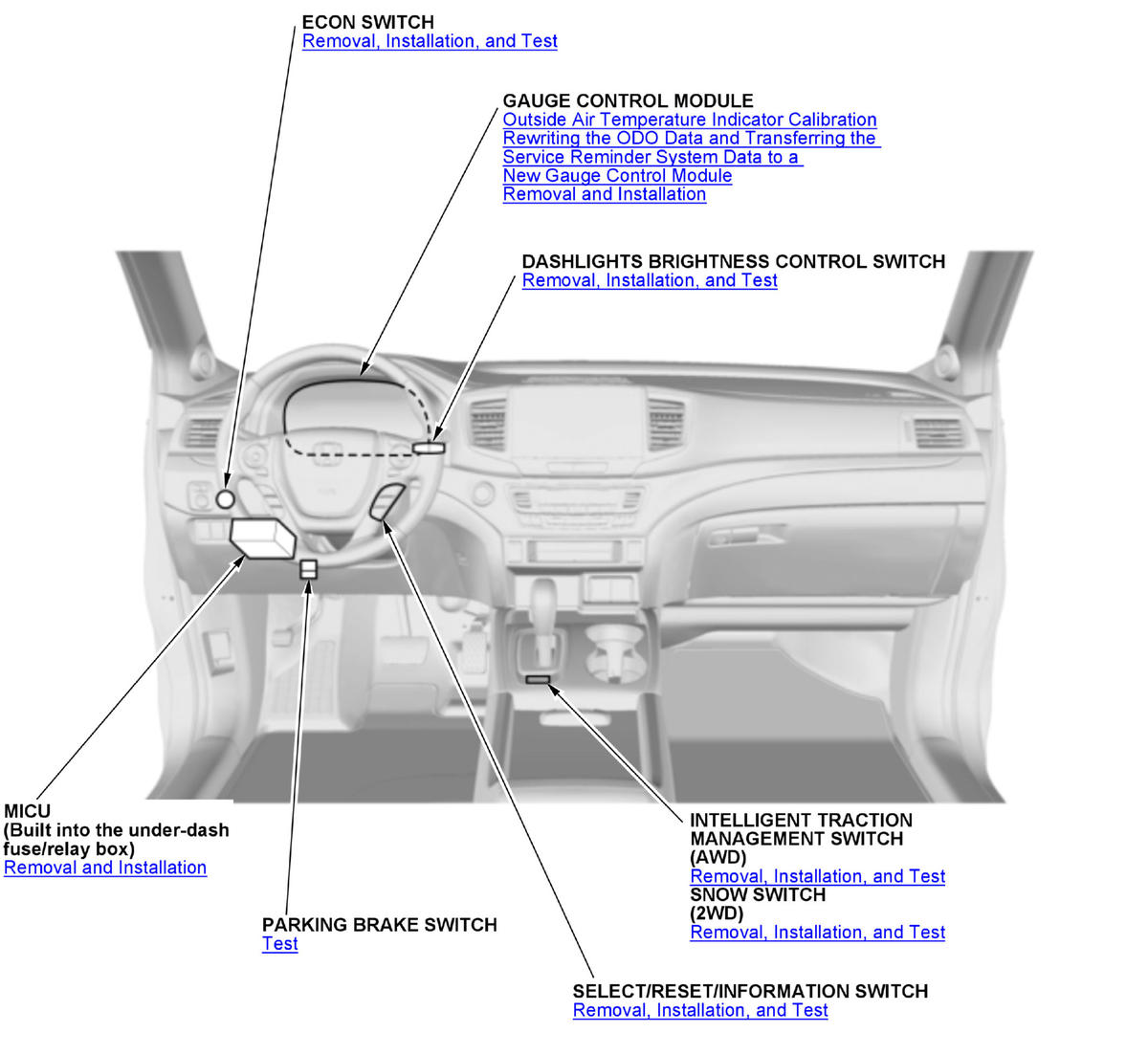

Gauges Component Location Index (2017 2018 2019)

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

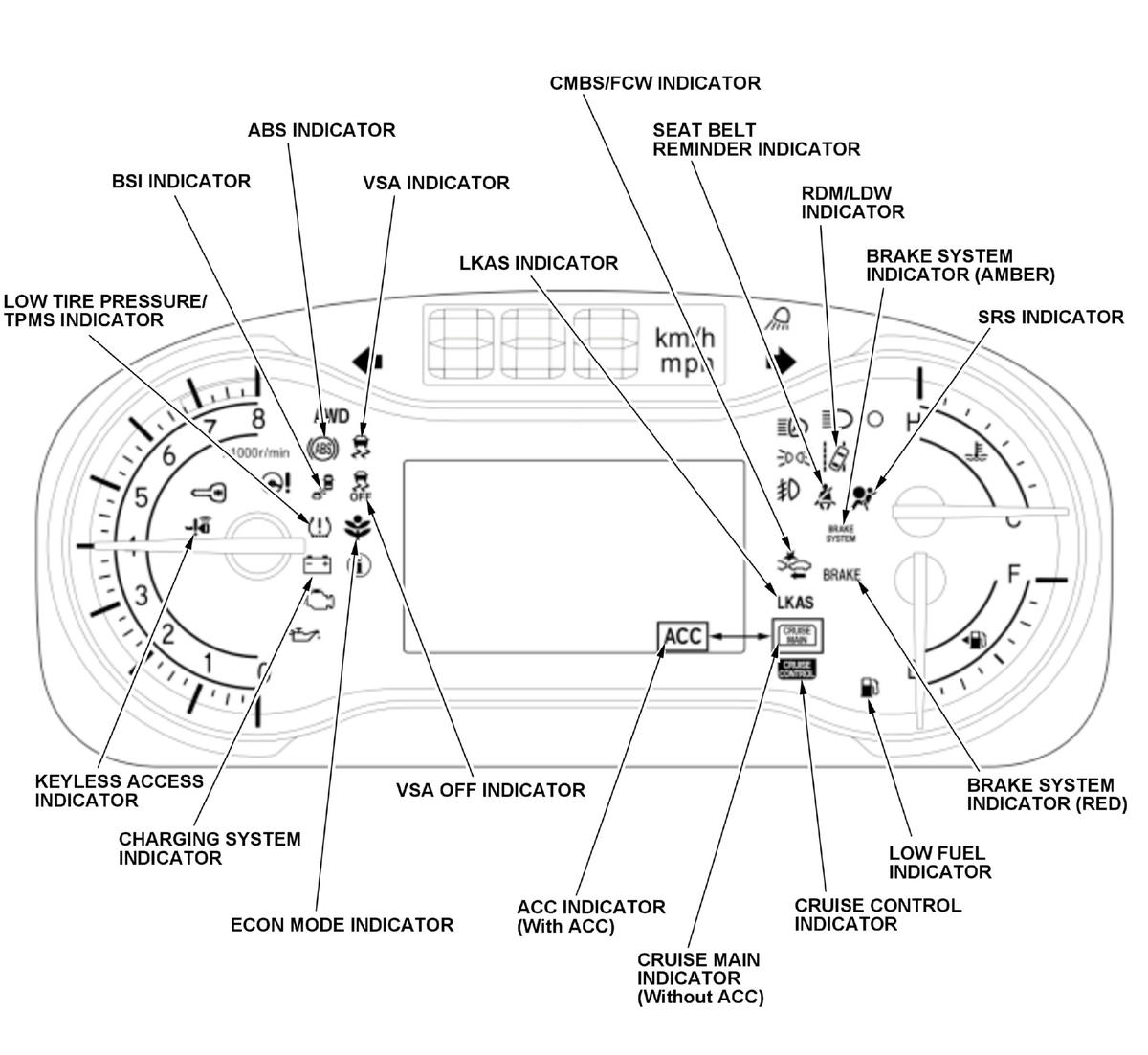

USA model, 1/2

Courtesy of HONDA, U.S.A., INC.

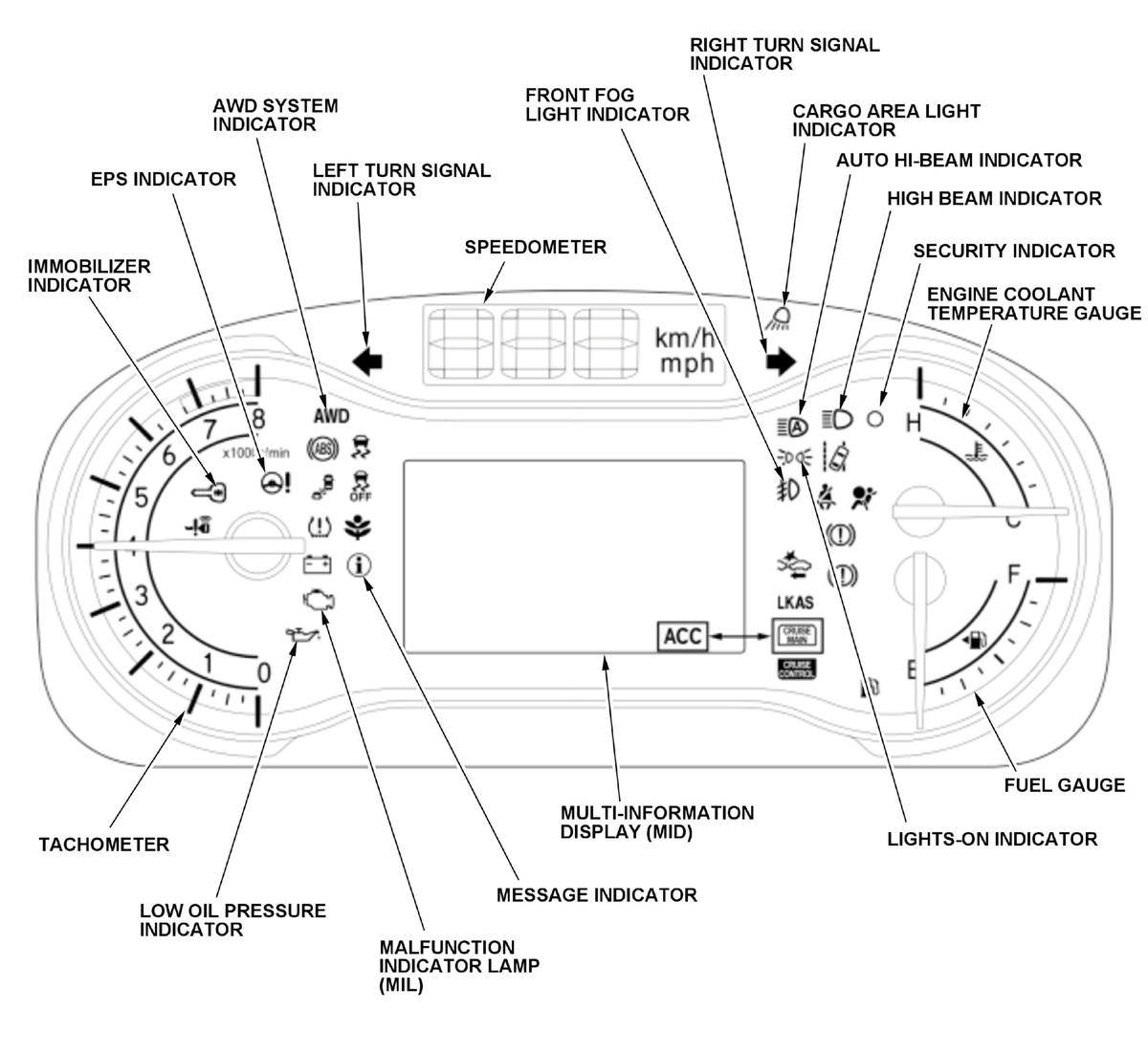

USA model, 2/2

Courtesy of HONDA, U.S.A., INC.

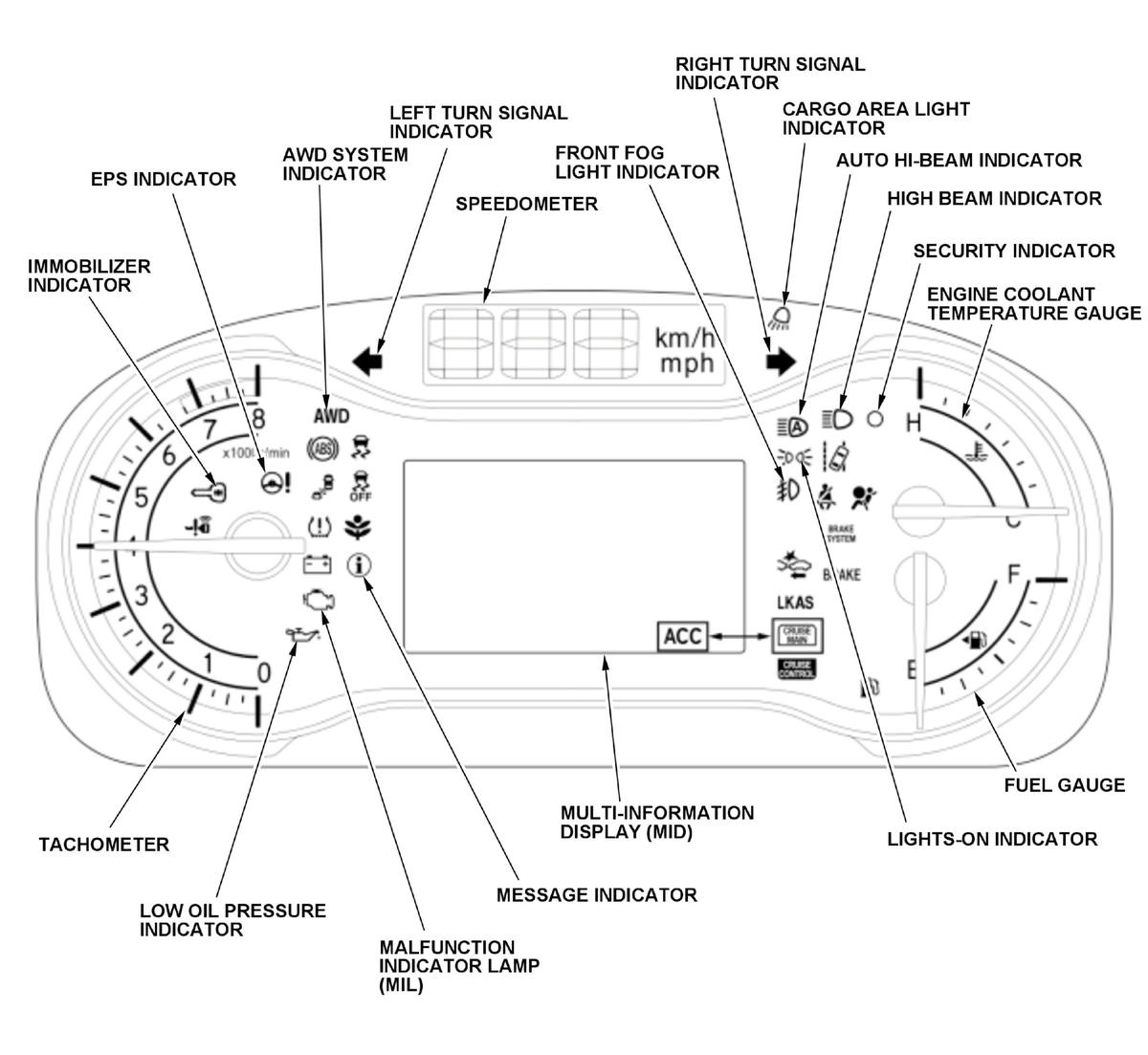

Canada model, 1/2

Courtesy of HONDA, U.S.A., INC.

Canada model, 2/2

Courtesy of HONDA, U.S.A., INC.
