Home >> Honda >> 2021 >> Ridgeline RTL, AWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Gauges - Testing & Troubleshooting >> Circuit Diagram >> Safety Indicator System Circuit Diagram (2020 2021 2022 2023)

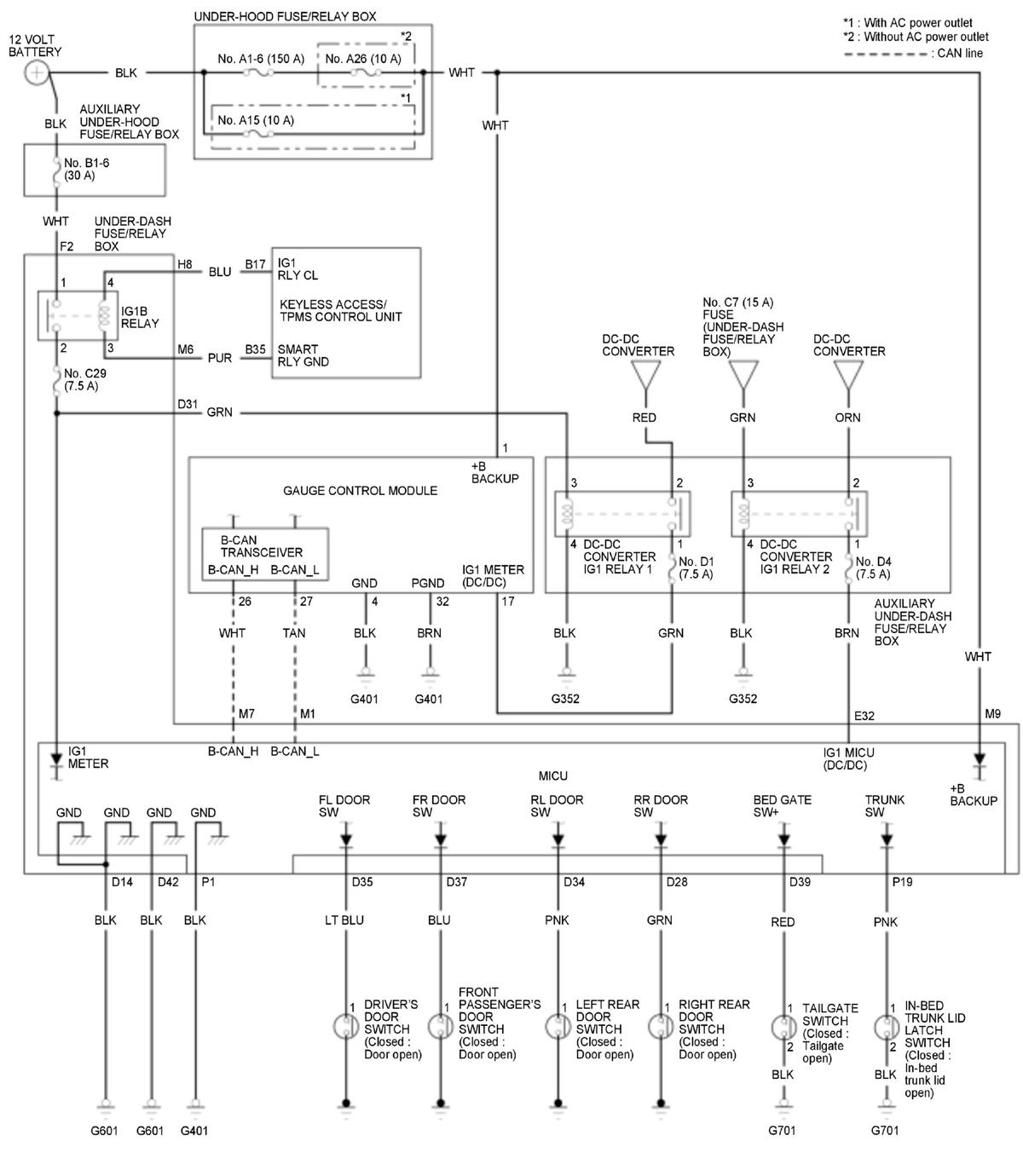

Safety Indicator System Circuit Diagram (2020 2021 2022 2023)

GHH456391

Courtesy of HONDA, U.S.A., INC.
