LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2021
>>
Ridgeline RTL, AWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Gauges - Testing & Troubleshooting
>>
Circuit Diagram
>>

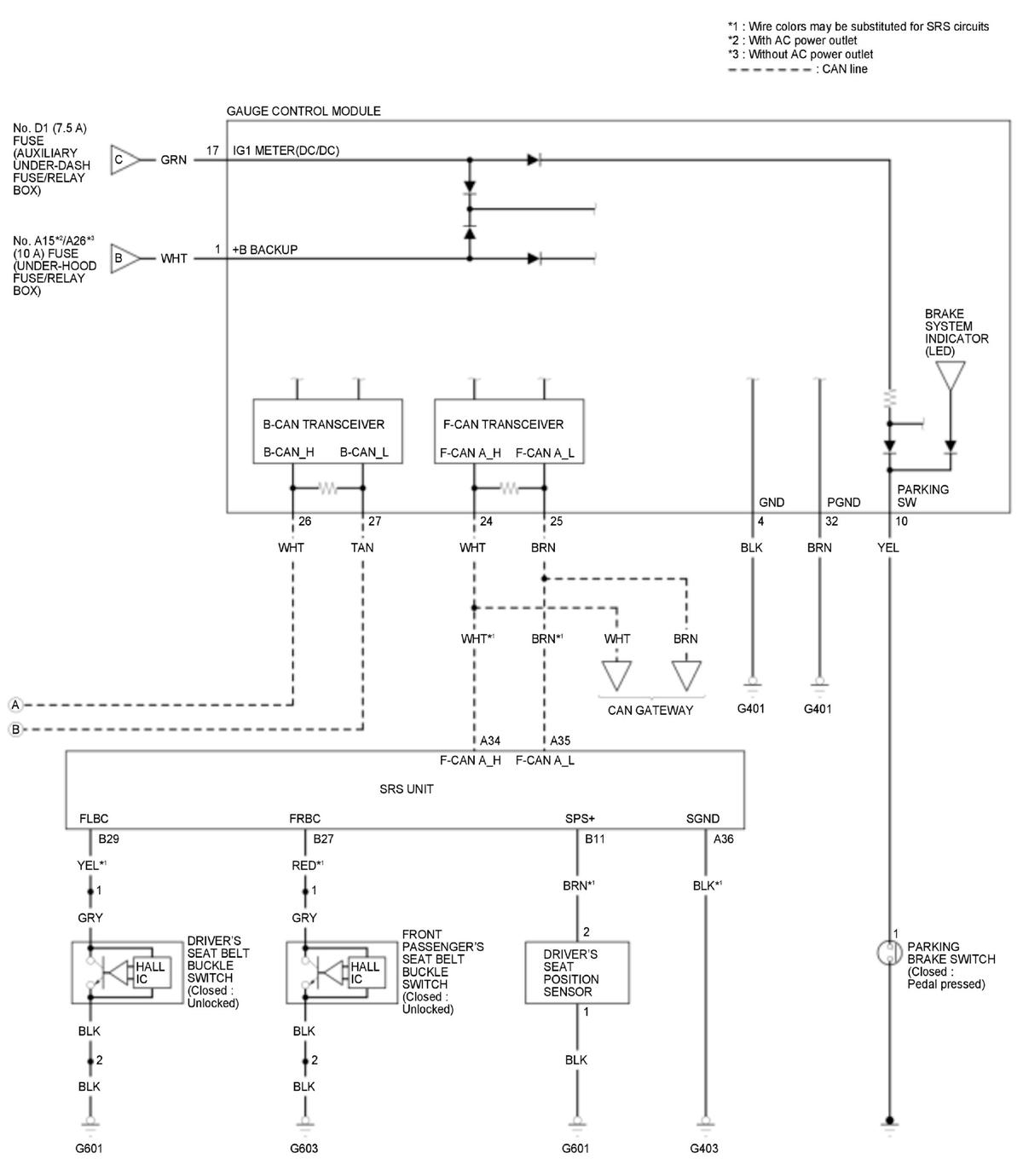

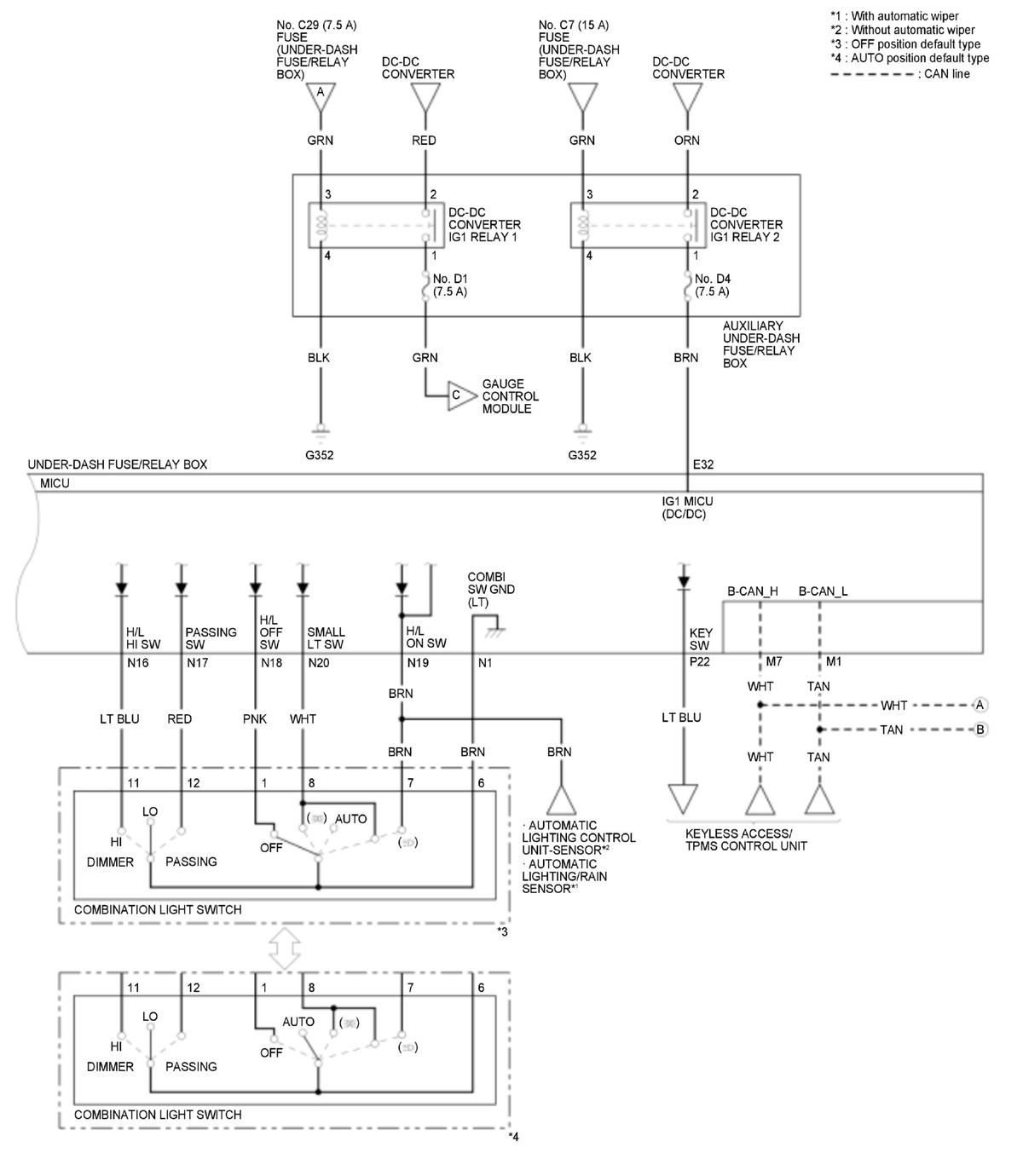

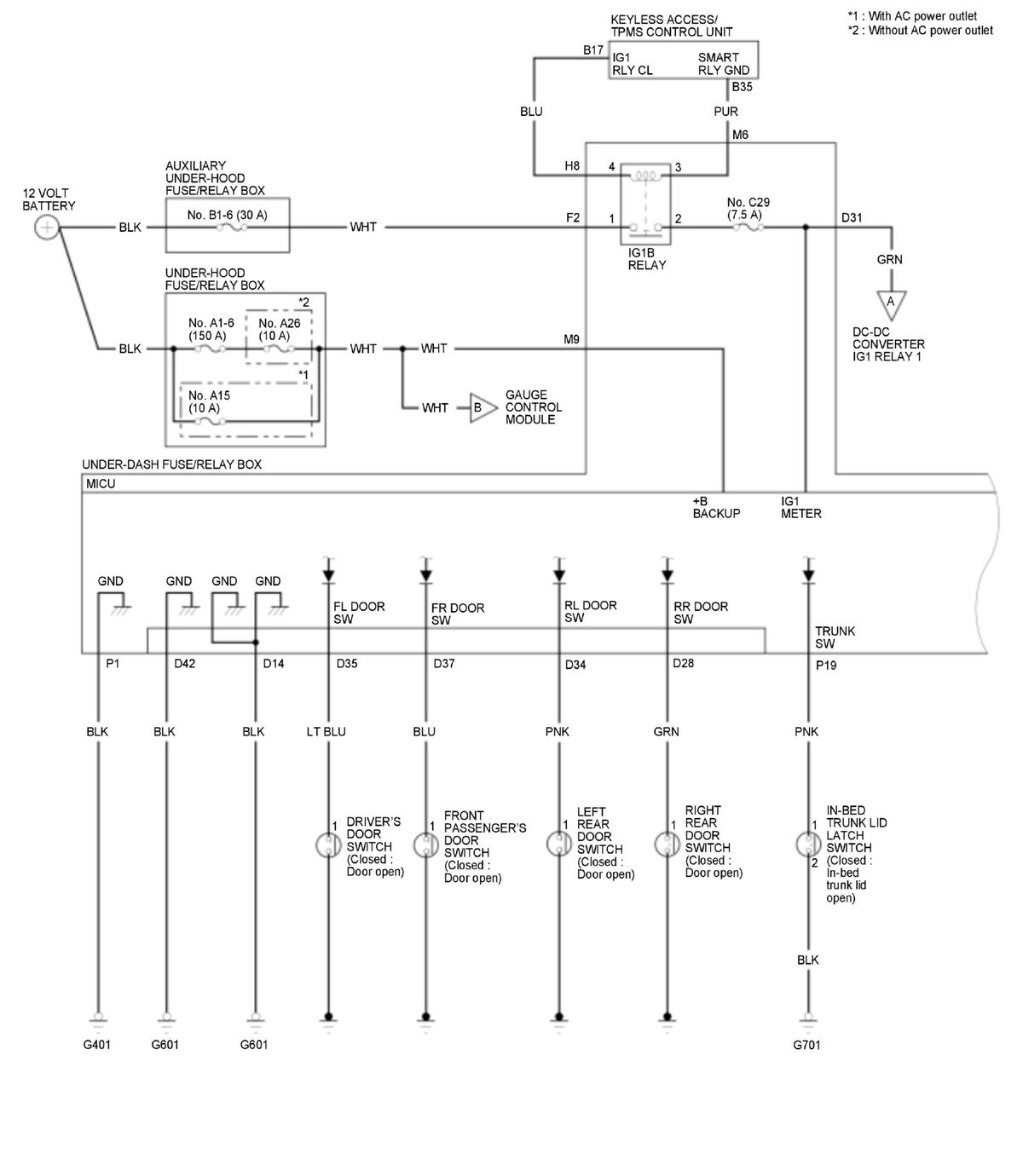

Reminder Systems Circuit Diagram (2020 2021 2022 2023)
Reminder Systems Circuit Diagram (2020 2021 2022 2023)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
