Reminder Systems Circuit Diagram (2019)

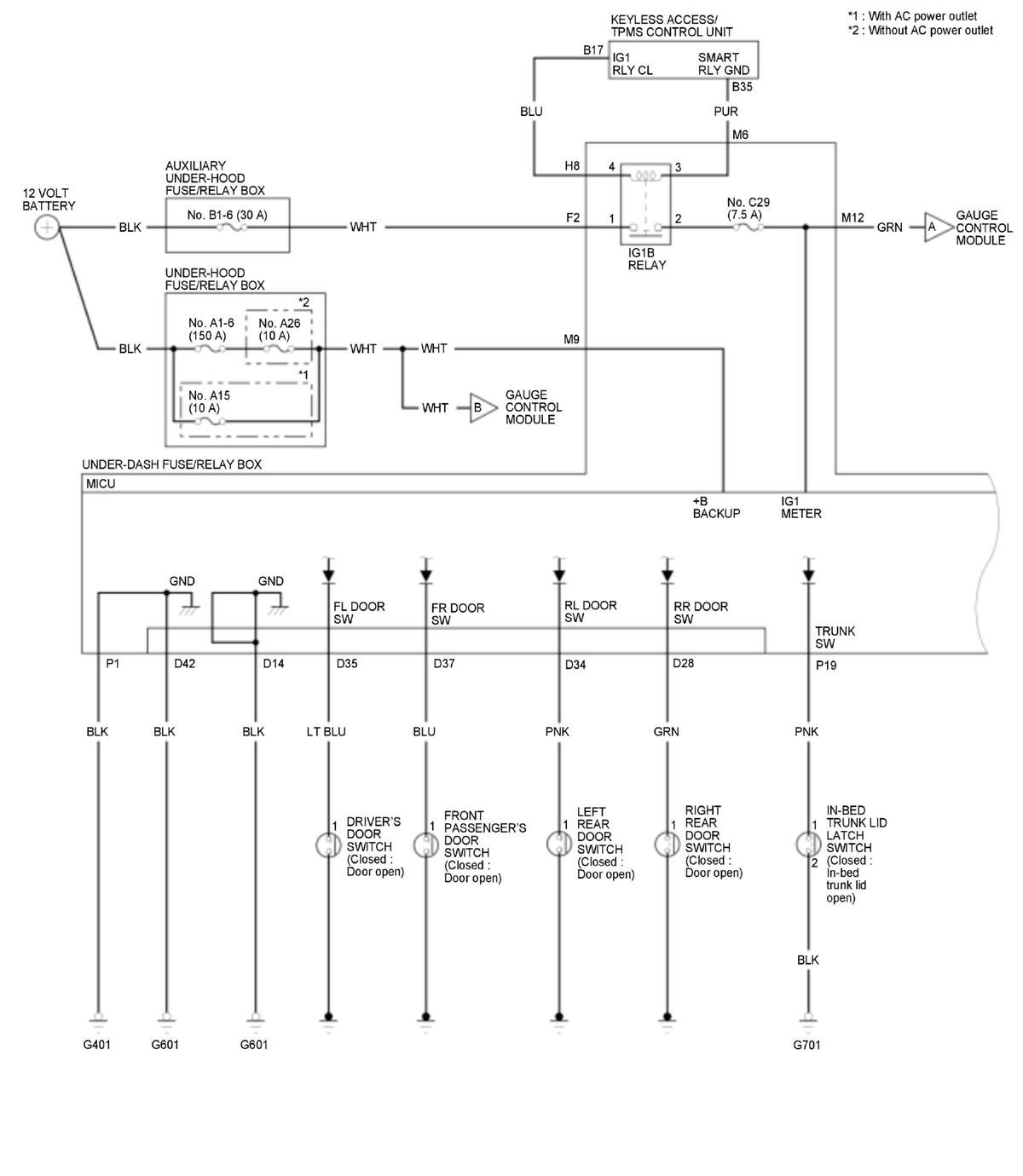

GHH456384

Courtesy of HONDA, U.S.A., INC.

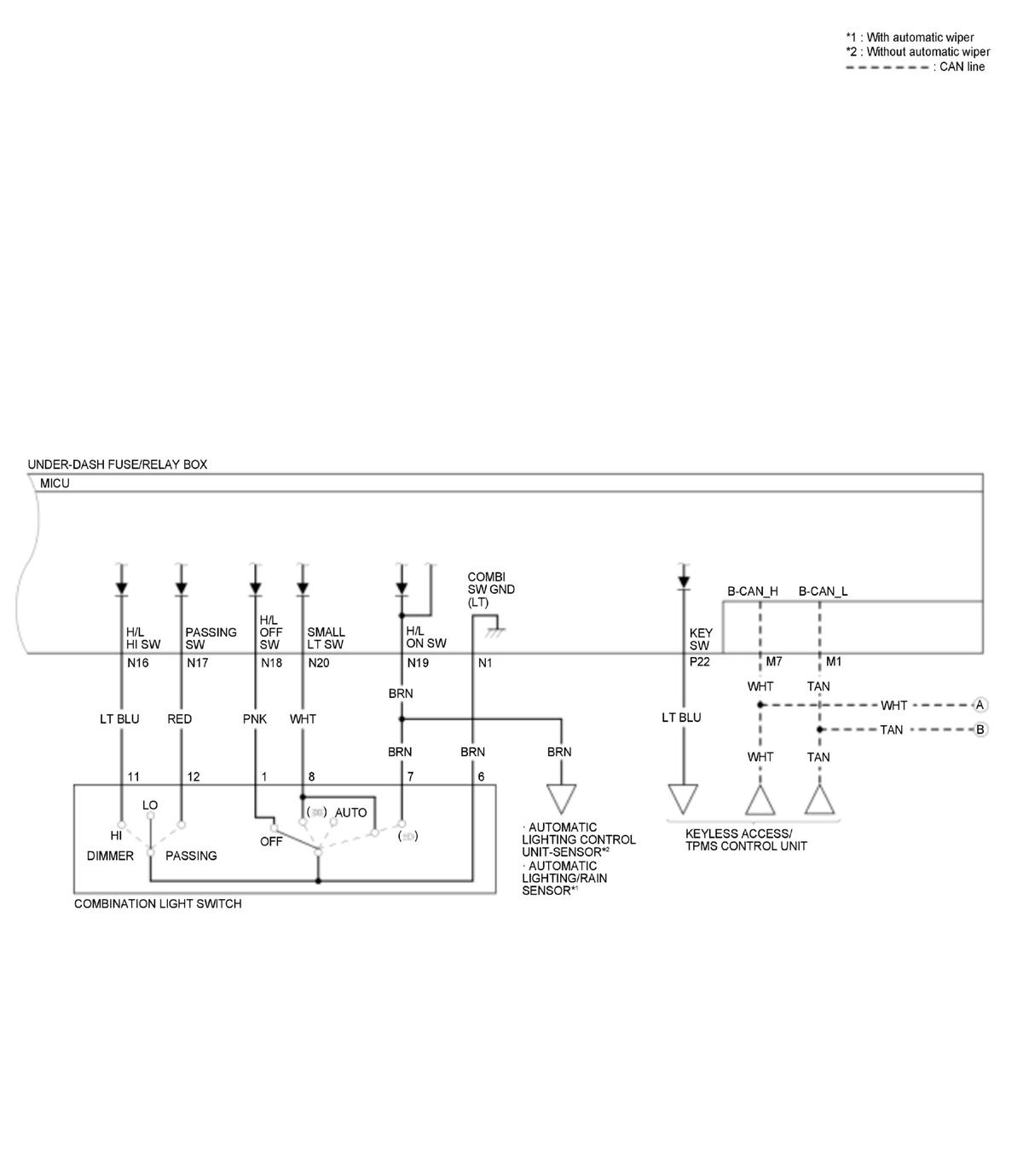

GHH456385

Courtesy of HONDA, U.S.A., INC.

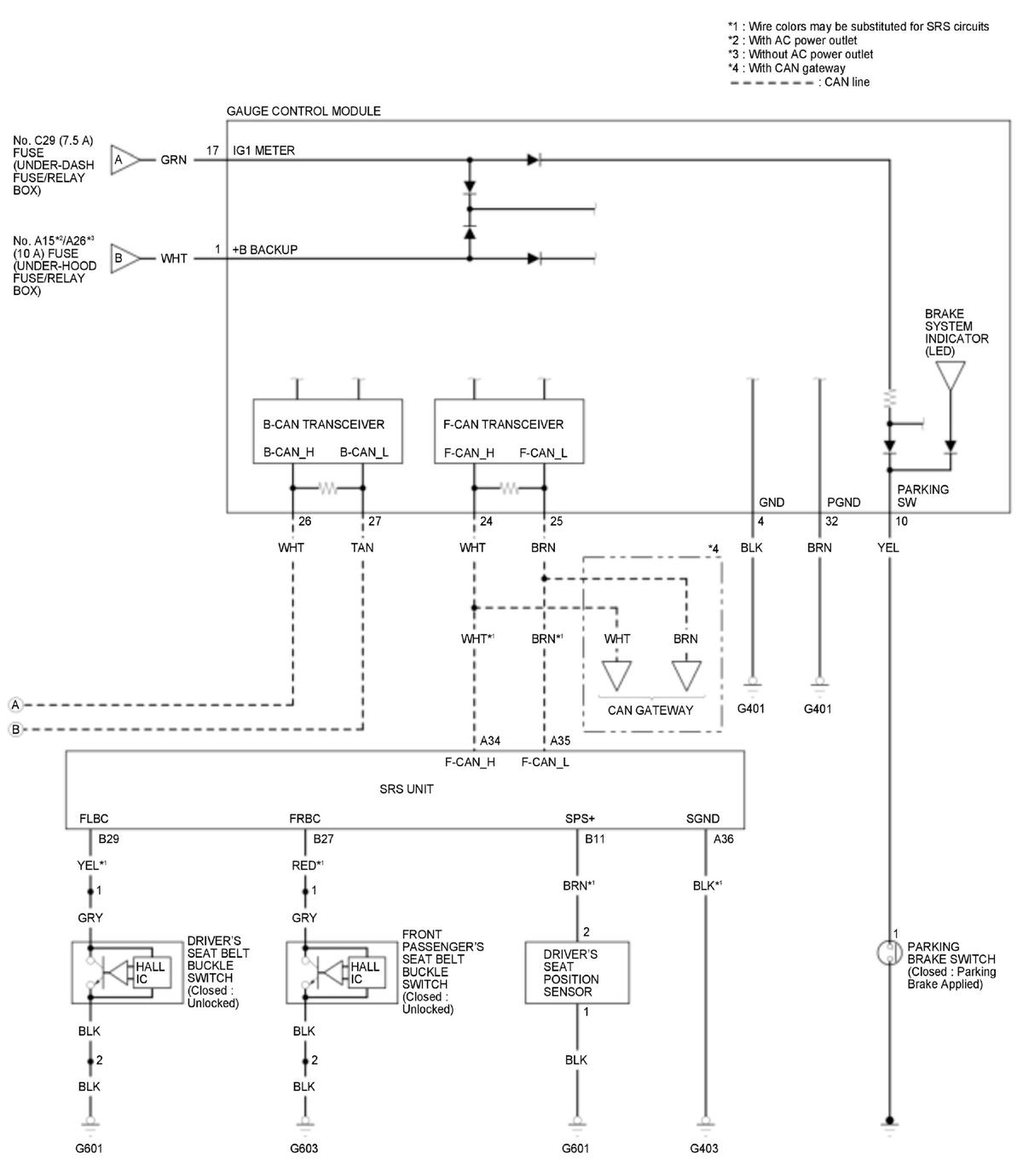

GHH456386

Courtesy of HONDA, U.S.A., INC.
