Reminder Systems Circuit Diagram (2017 2018)

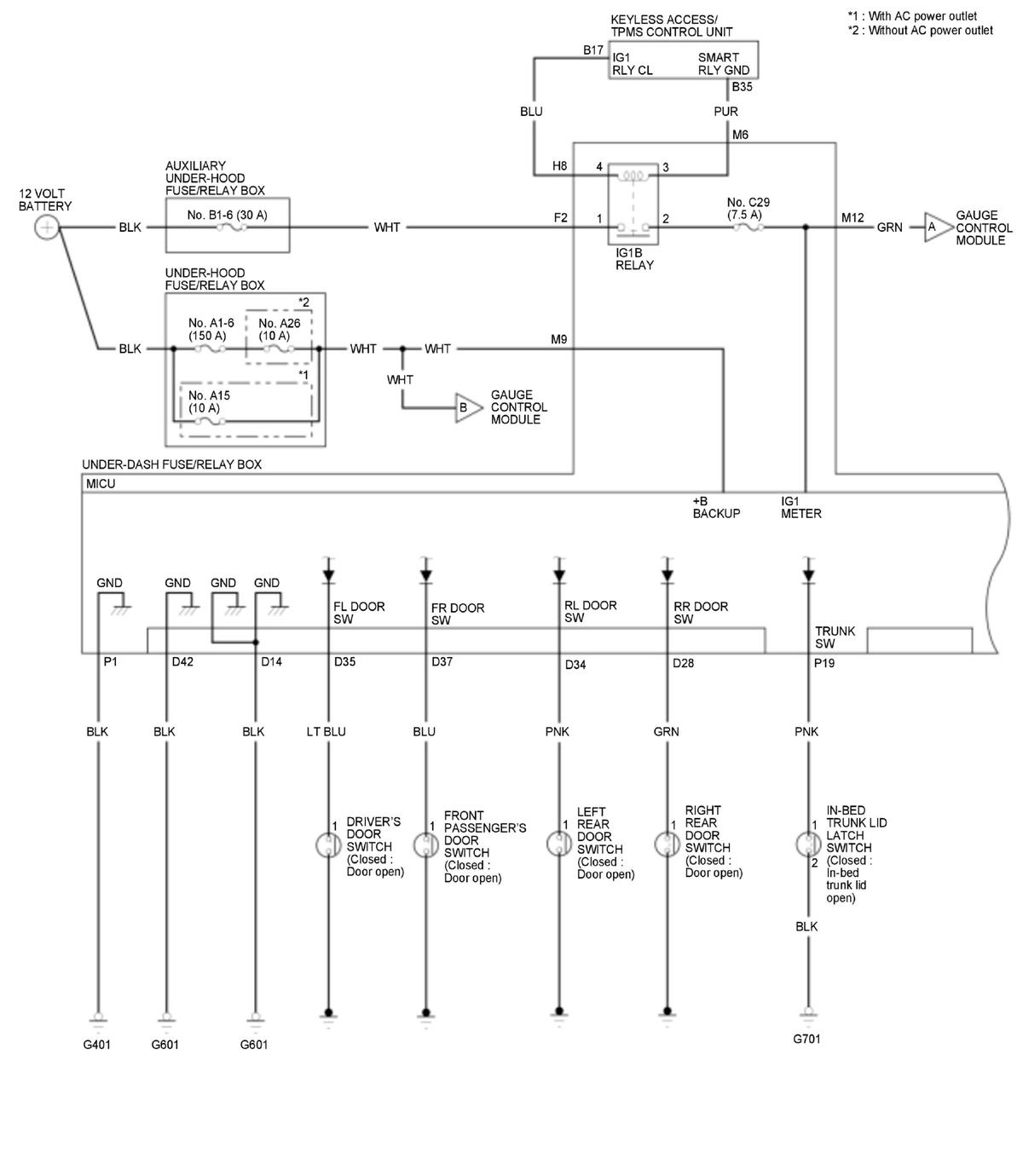

GHH456381

Courtesy of HONDA, U.S.A., INC.

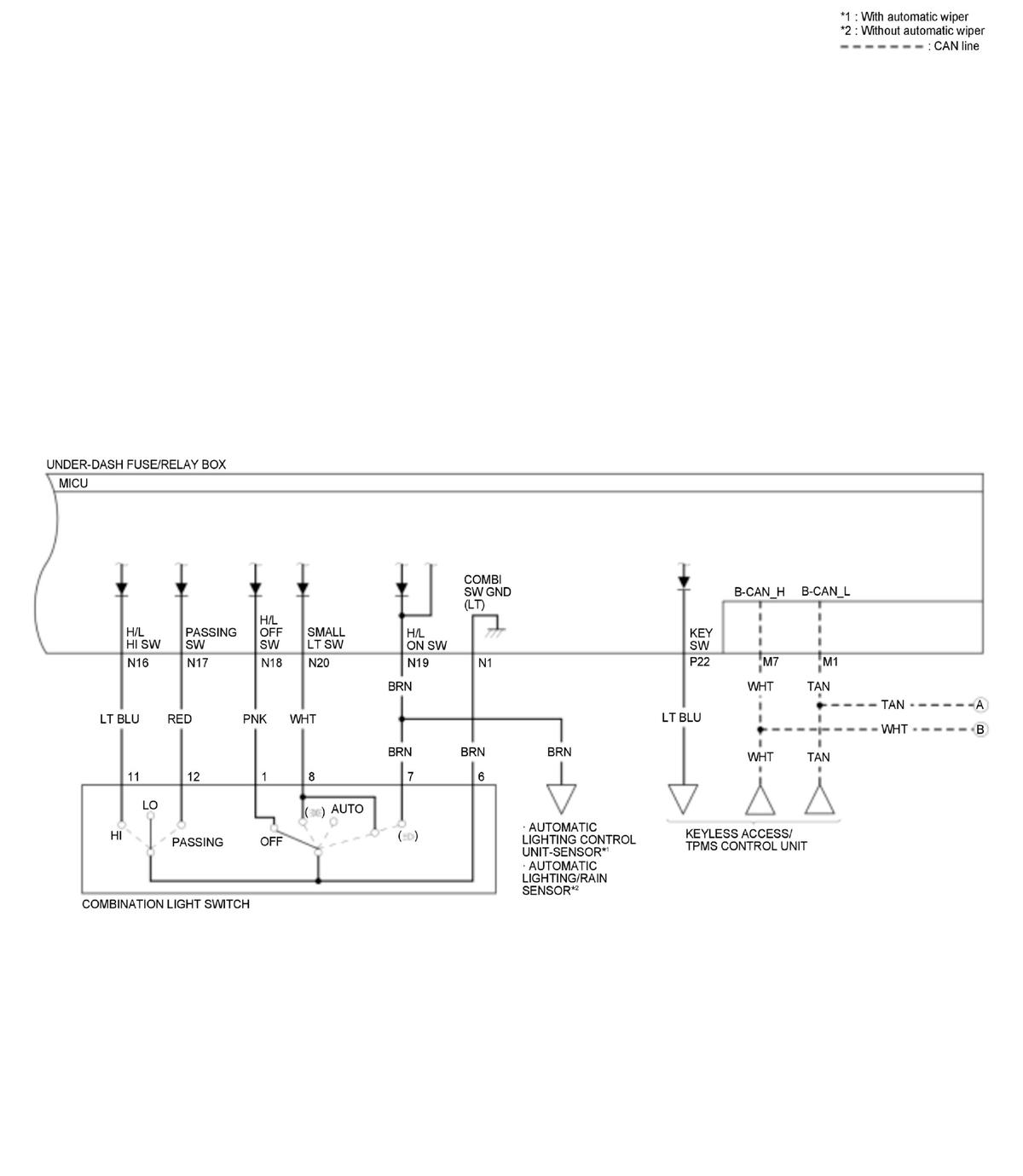

GHH456382

Courtesy of HONDA, U.S.A., INC.

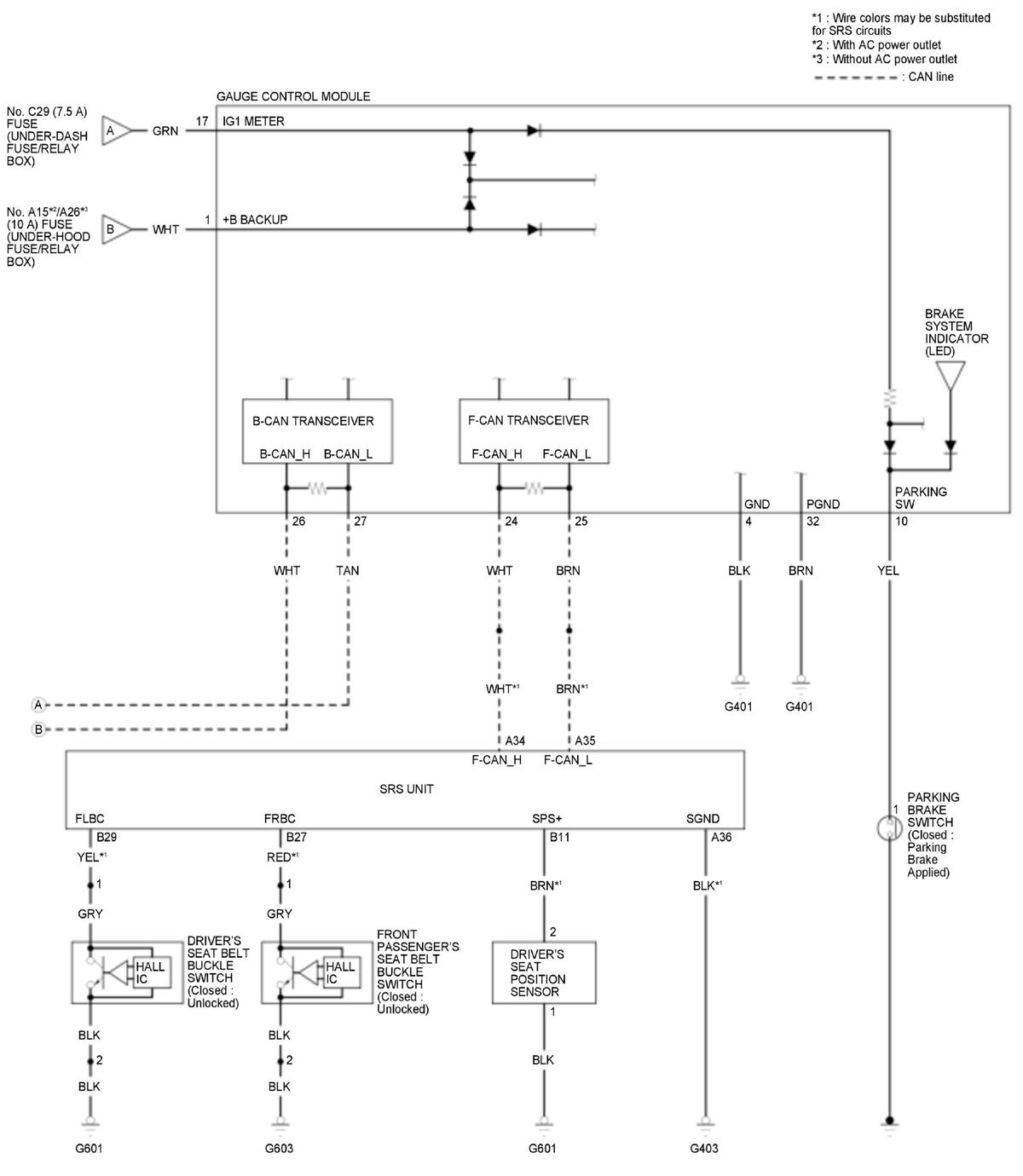

GHH456383

Courtesy of HONDA, U.S.A., INC.
