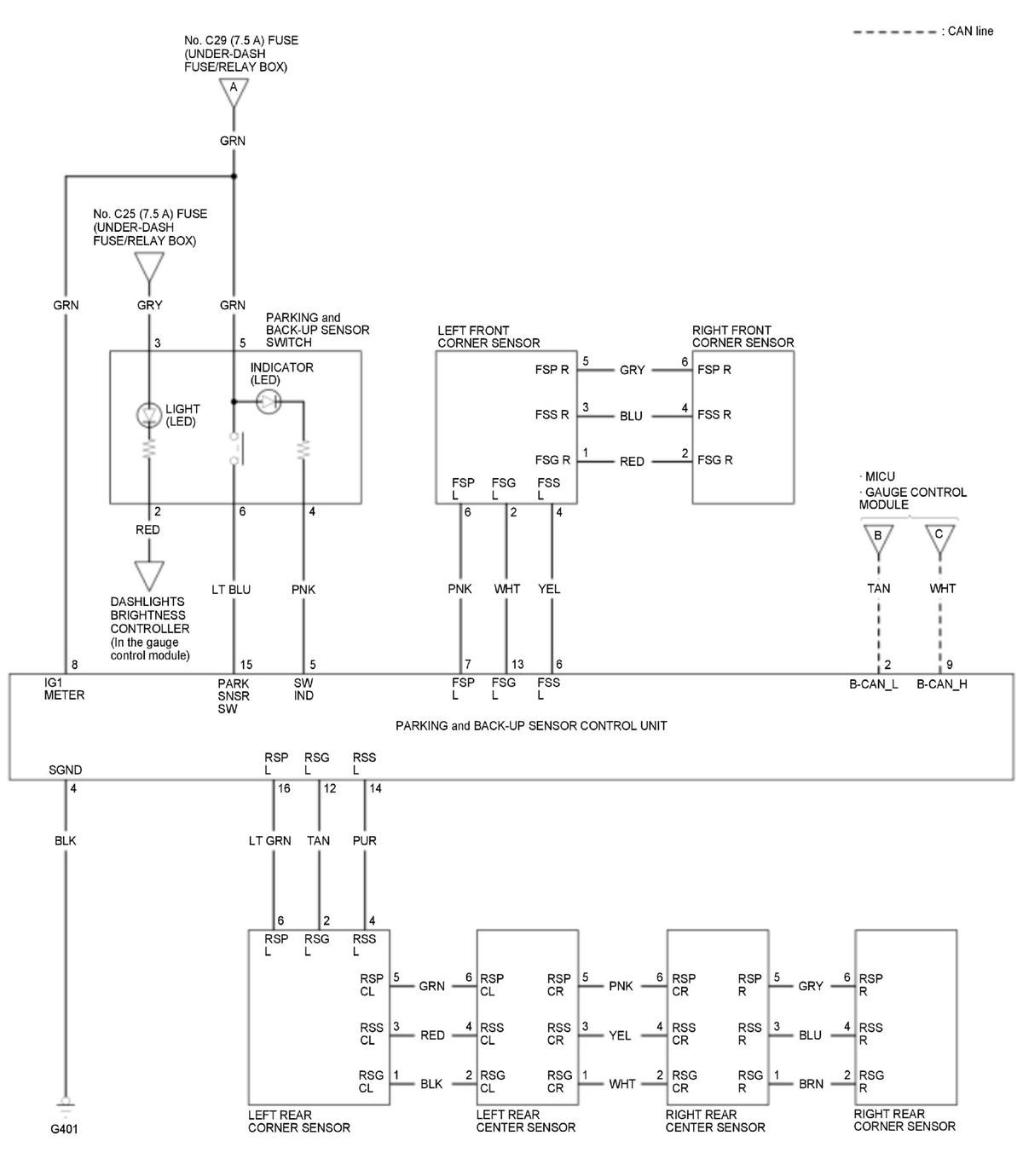

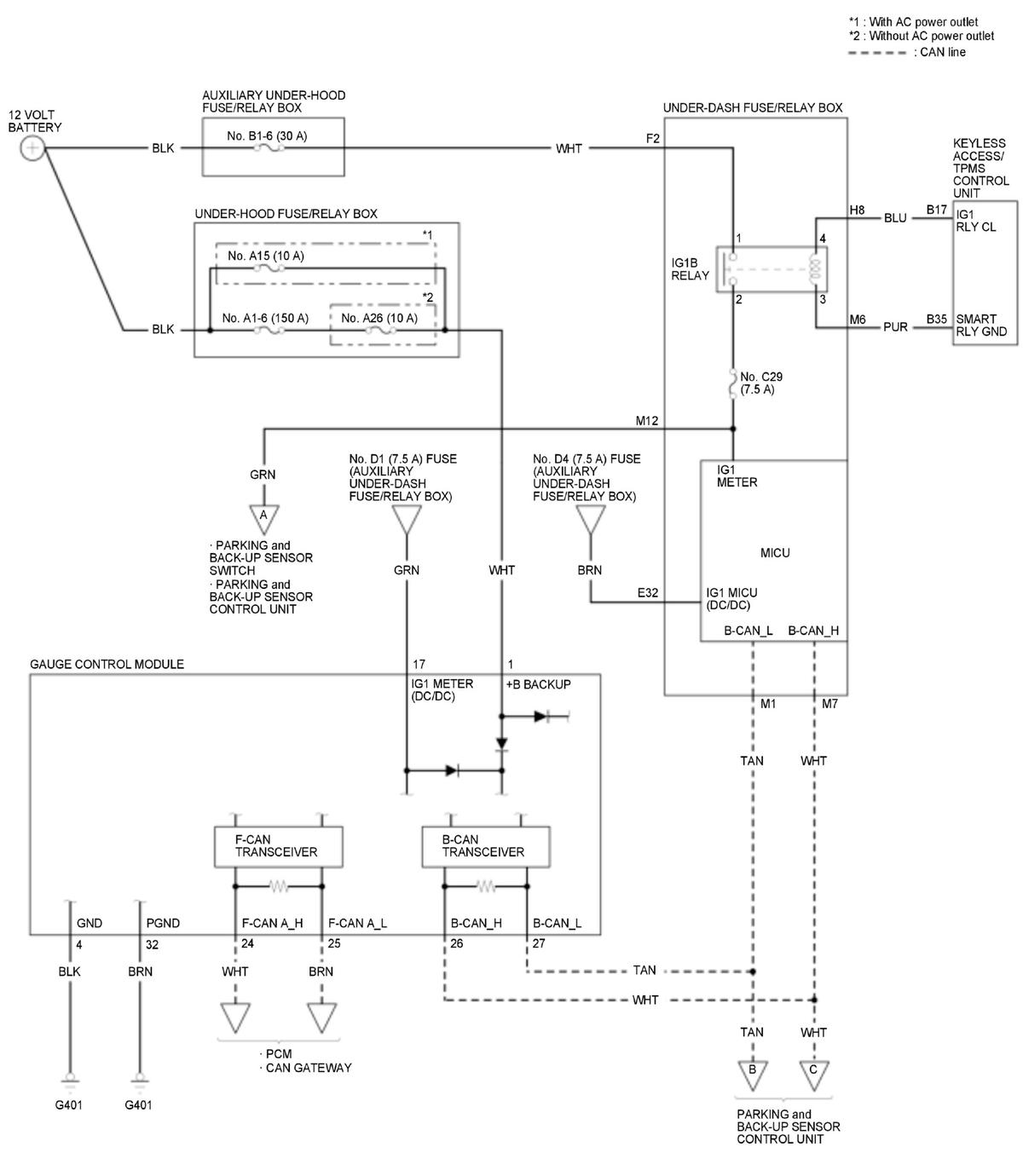

Parking and Back-Up Sensor System Circuit Diagram (2020 2021 2022 2023)
Parking and Back-Up Sensor System Circuit Diagram (2020 2021 2022 2023)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
