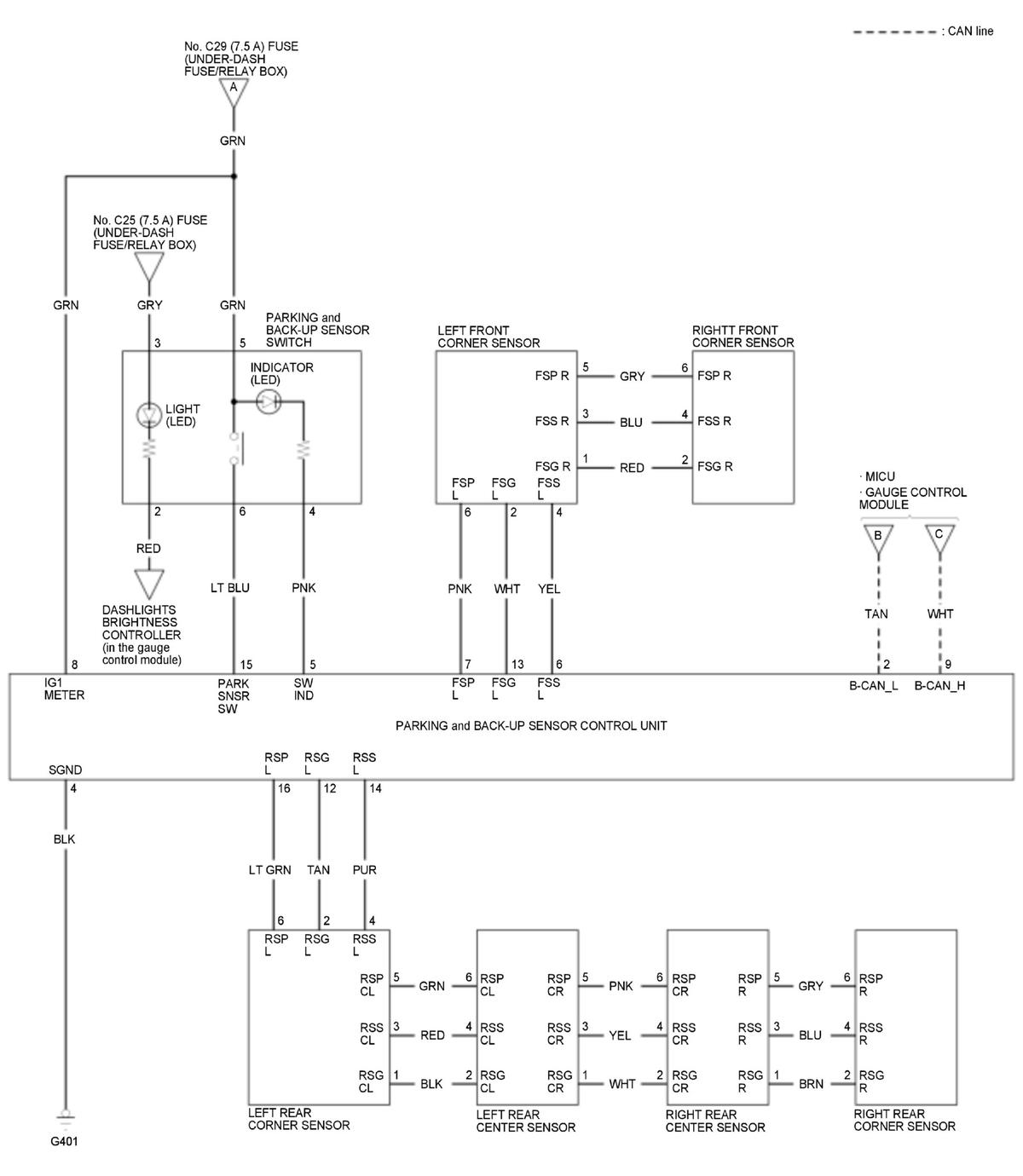

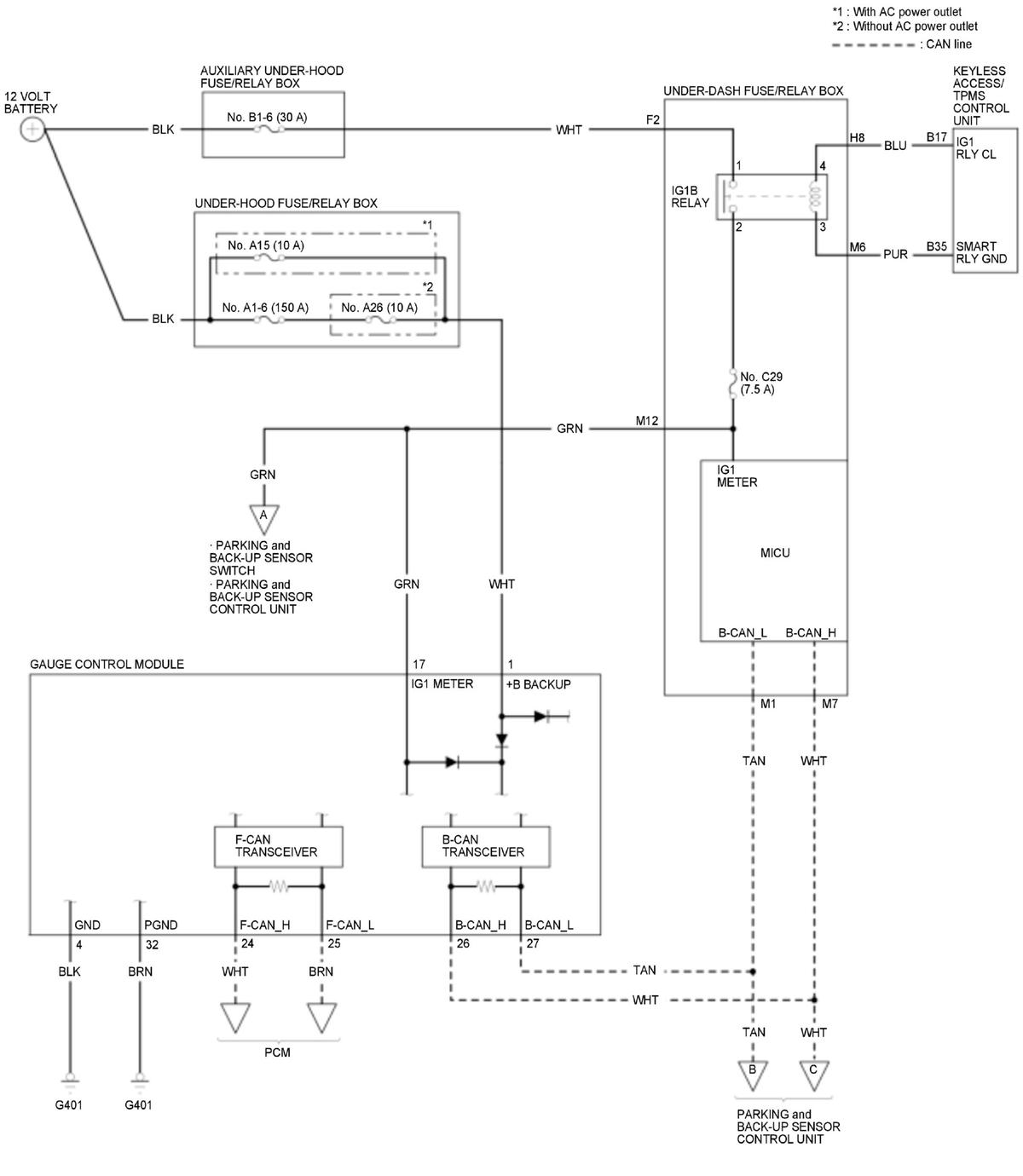

Parking and Back-Up Sensor System Circuit Diagram (2017 2018)
Parking and Back-Up Sensor System Circuit Diagram (2017 2018)
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
