Gauges Circuit Diagram (2020 2021 2022 2023)

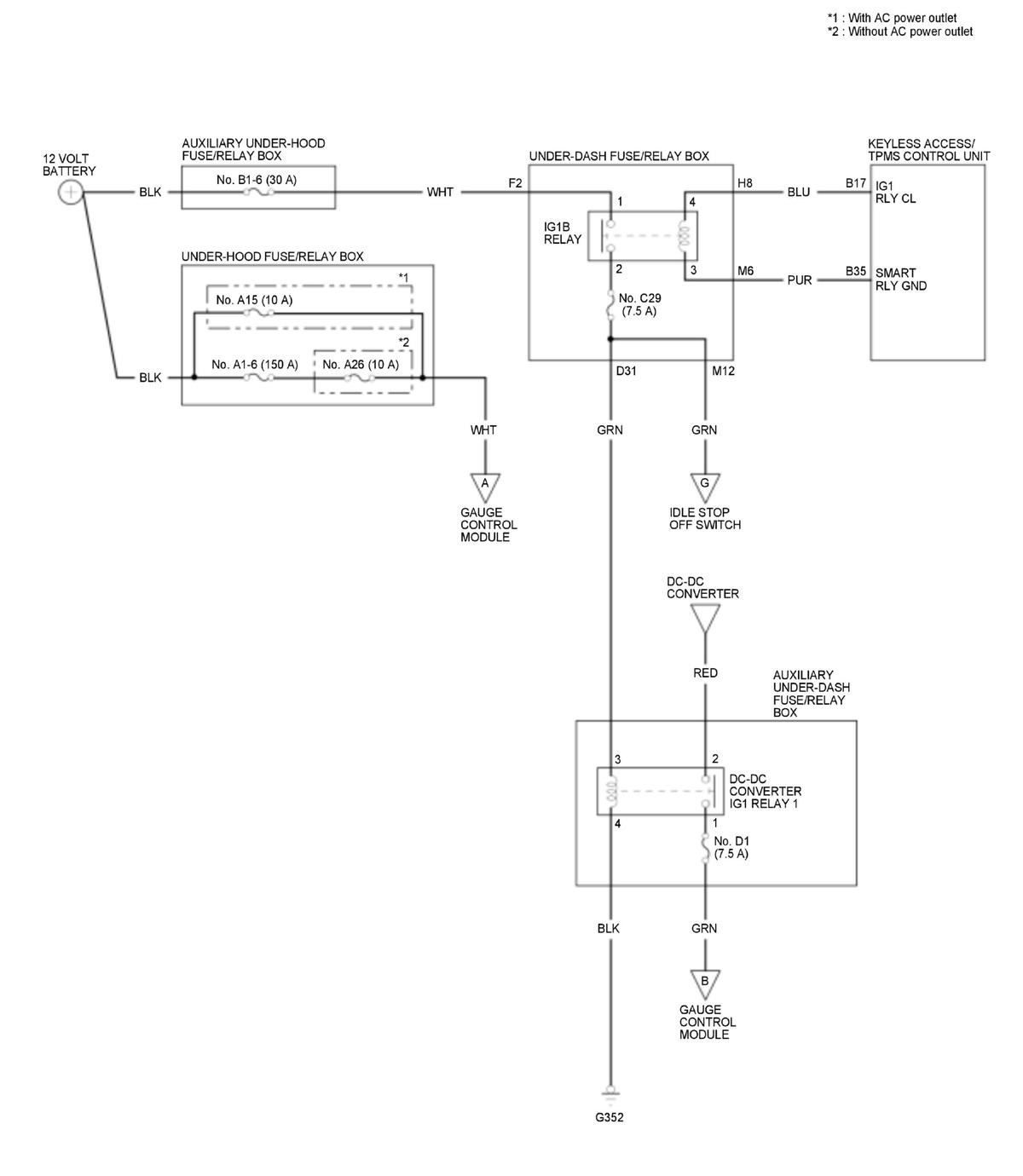

GHH456370

Courtesy of HONDA, U.S.A., INC.

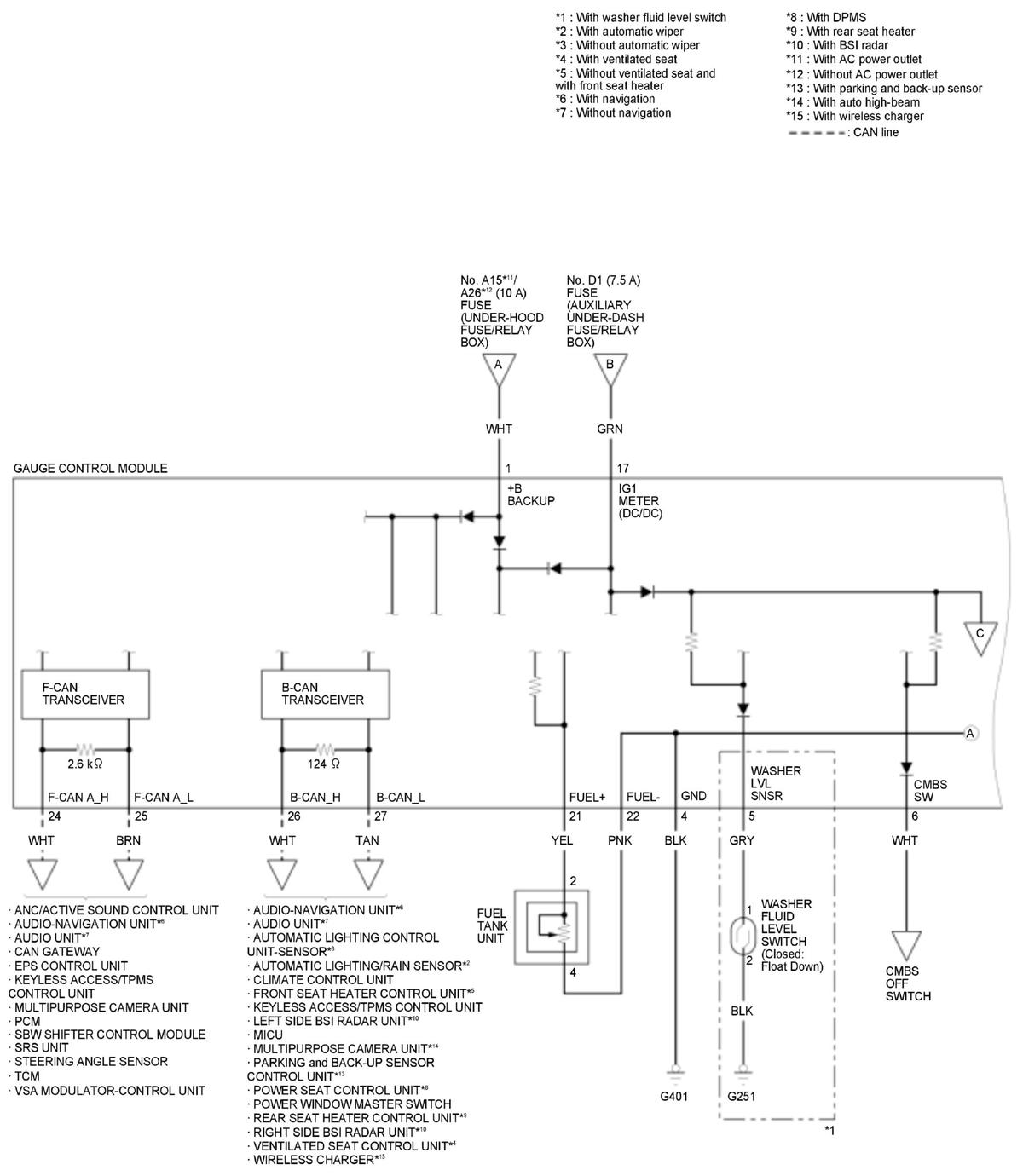

GHH456371

Courtesy of HONDA, U.S.A., INC.

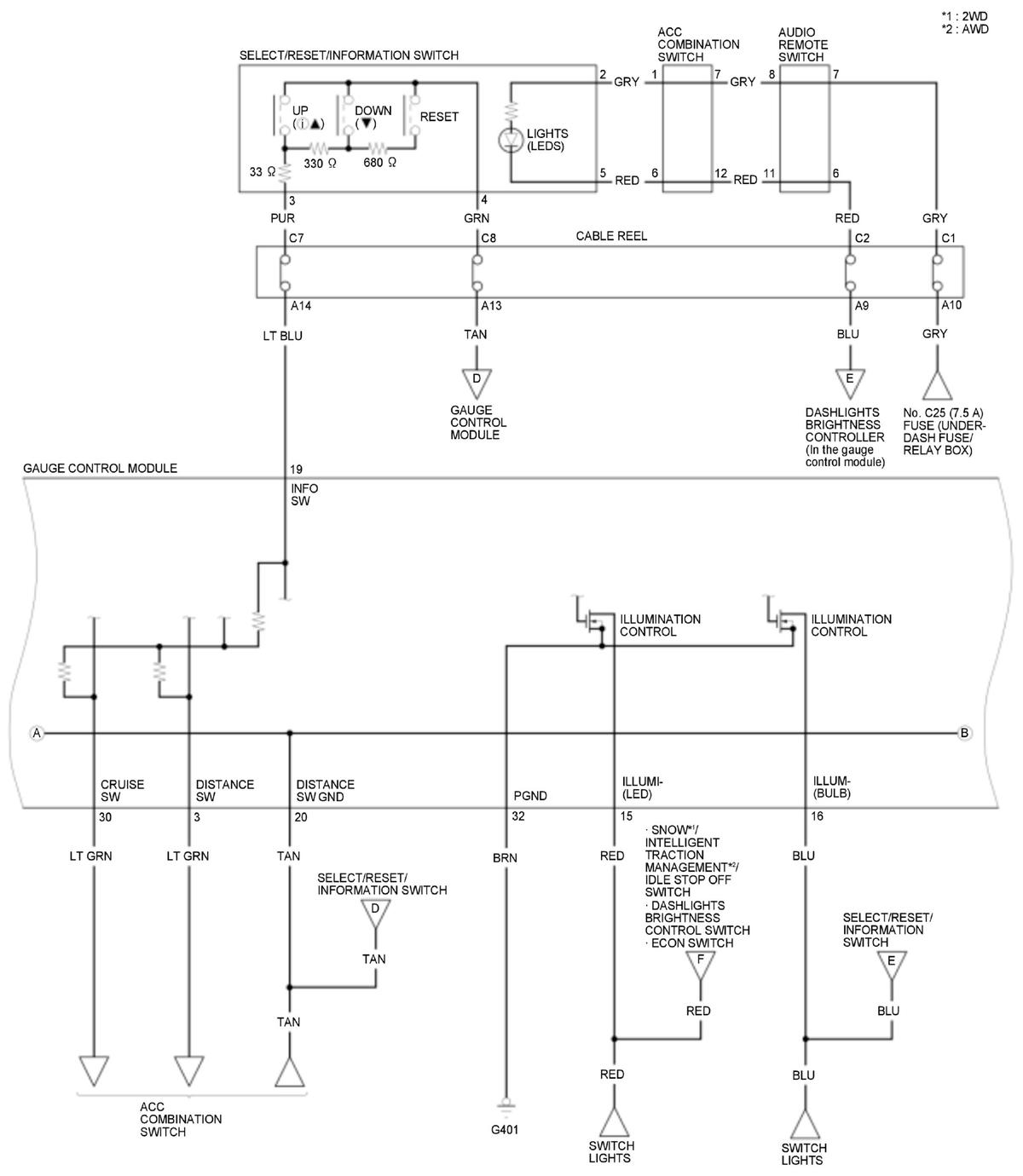

GHH456372

Courtesy of HONDA, U.S.A., INC.

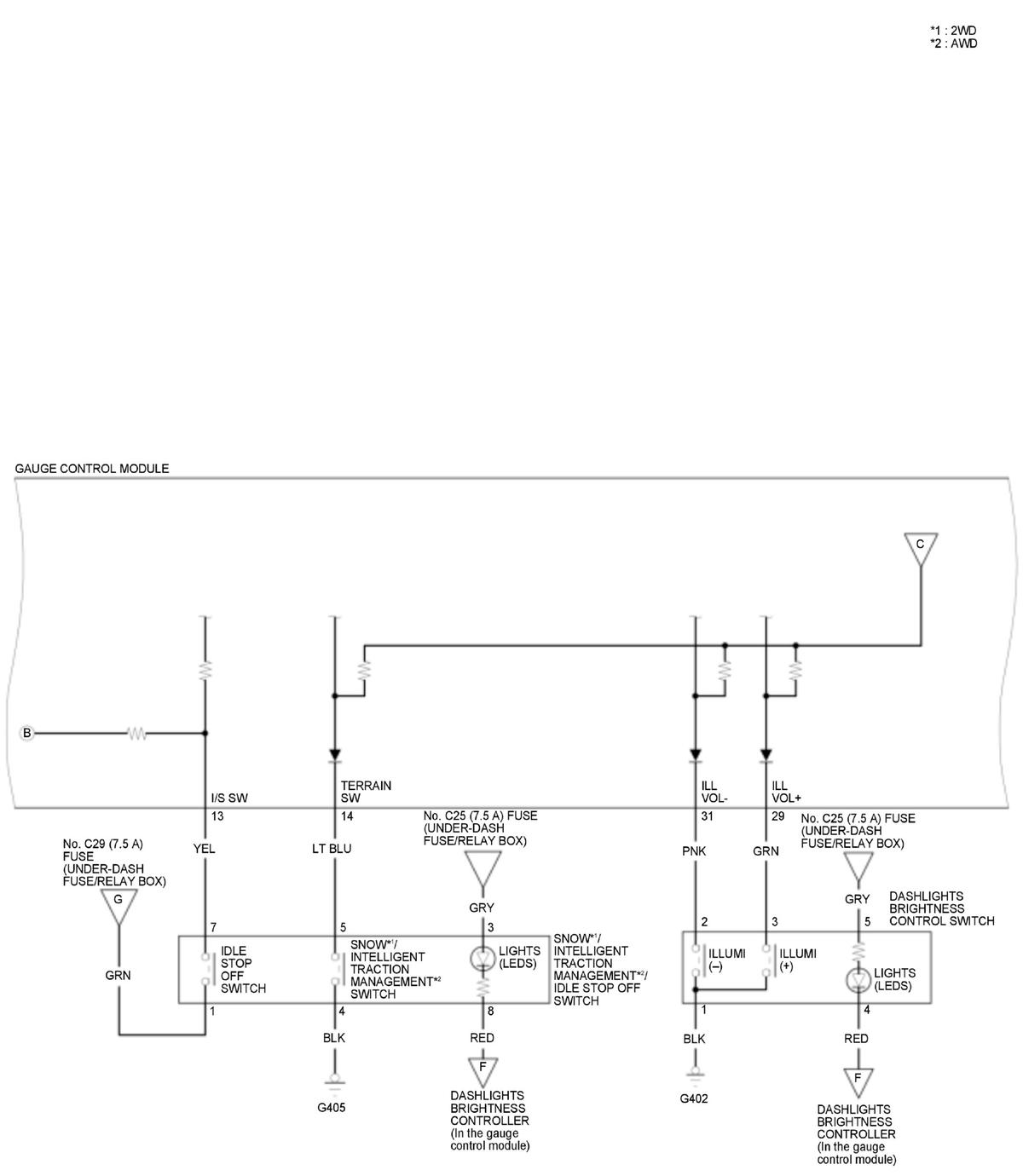

GHH456373

Courtesy of HONDA, U.S.A., INC.

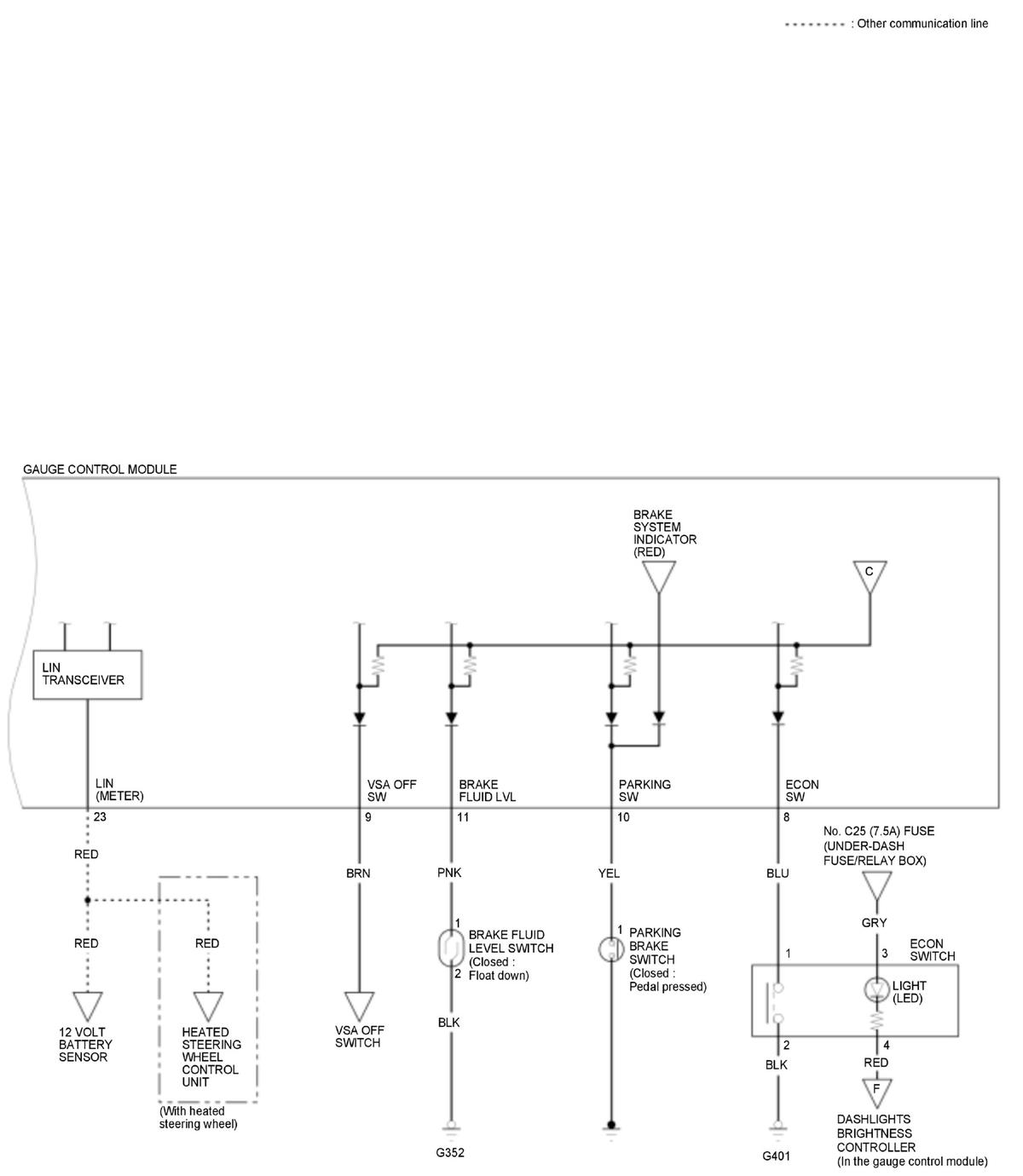

GHH456374

Courtesy of HONDA, U.S.A., INC.
