Snow Switch Removal, Installation, and Test (2017 2018 2019): Test

Snow Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

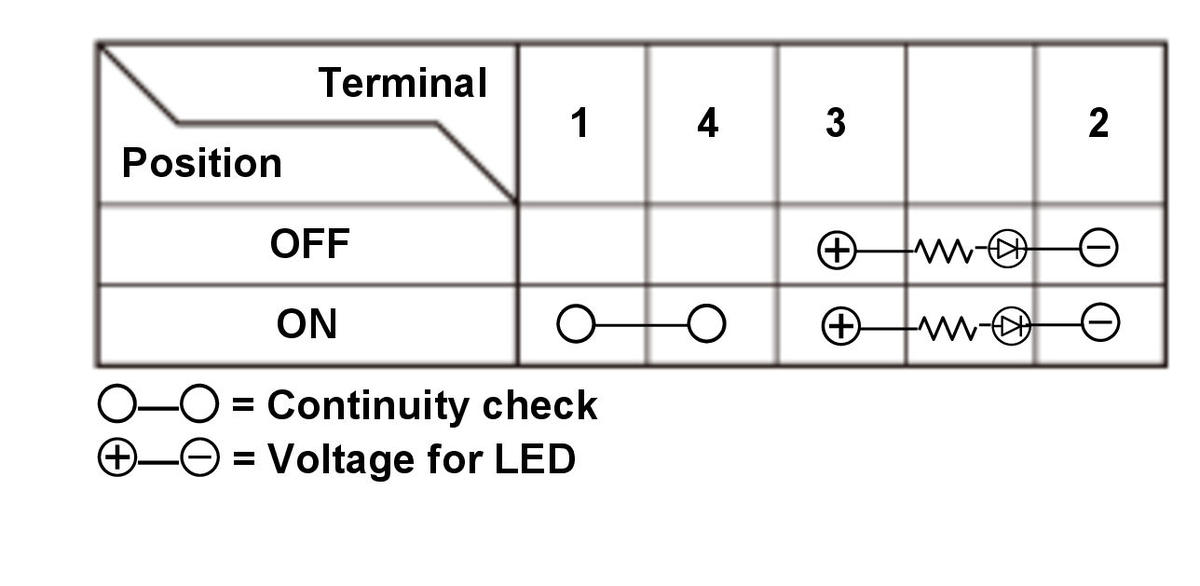

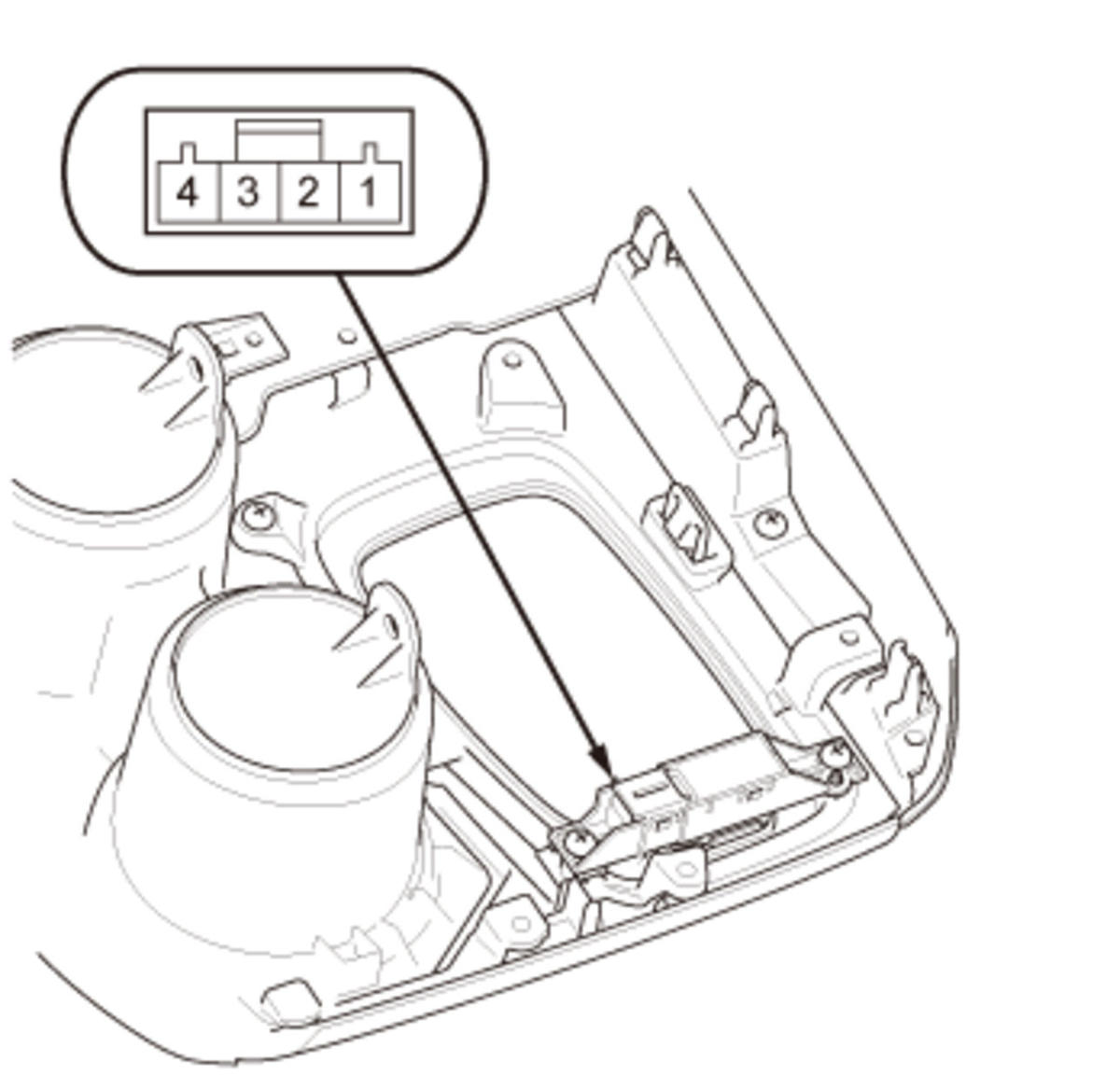

1. Check for continuity between the terminals in each switch position according to the table.

NOTE:

Make sure the correct test lead (+ or -) is placed on the terminal.
When checking for continuity across the diode, use the diode setting ( ) on the digital volt/ohm meter to check the diode bias.
Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the continuity is not as specified, replace the snow switch.
