Intelligent Traction Management Switch Removal, Installation, and Test (2020 2021 2022 2023 2024 2025): Test

Intelligent Traction Management Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

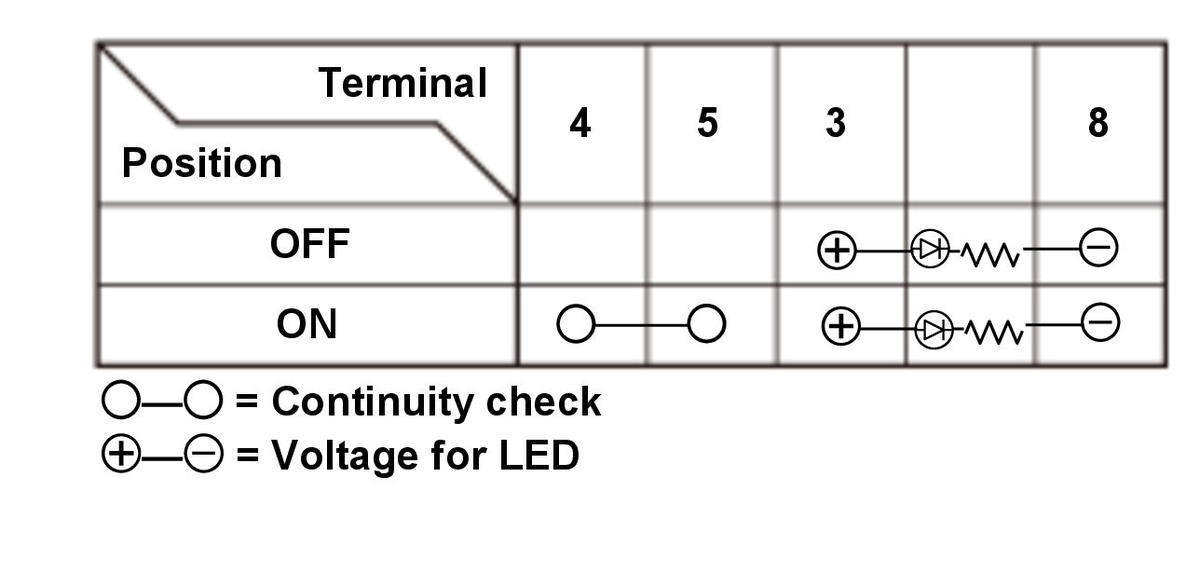

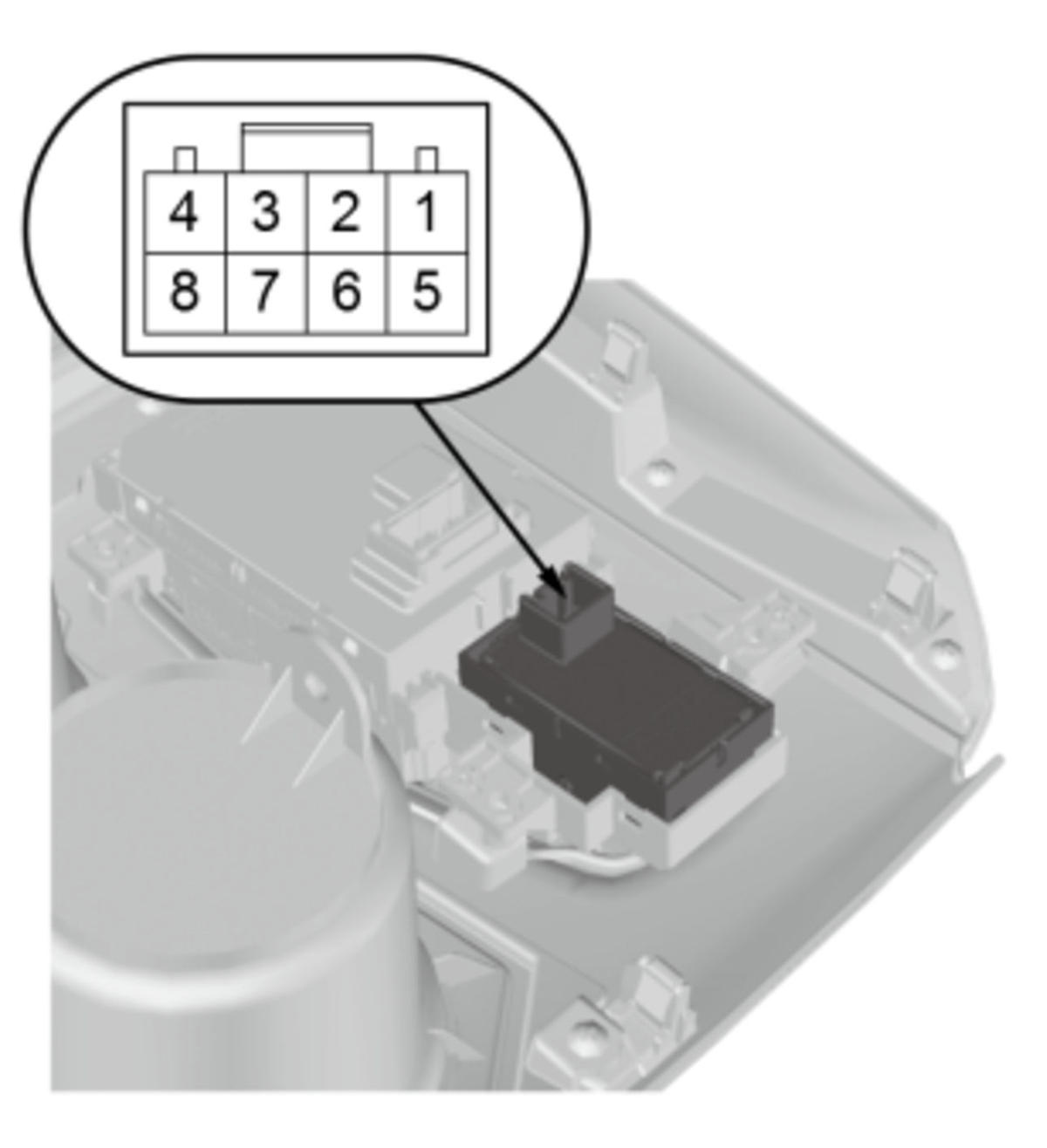

1. Check for continuity between the terminals in each switch position according to the table.
NOTE:

Make sure the correct test lead (+ or -) is placed on the terminal.
When checking for continuity across the diode, use the diode setting ( ) on the digital volt/ohm meter to check the diode bias.
Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

2. If the continuity is not as specified, replace the intelligent traction management switch.
