DTC B2618, B261B

DTC B2618  : Front 1st sensor data failure

DTC B261B  : Front 4th sensor data failure

DTC (Parking and Back-Up Sensor Control Unit)

NOTE:

• If you are troubleshooting multiple DTCs, be sure to follow the instructions in B-CAN System Diagnosis Test Mode A .
• Before you troubleshoot, resetting the parking and back-up sensor control unit .
• The connection order of the sensor is 1st (left corner sensor) -> 4th (right corner sensor) from the side near the control unit.

1. Problem verification

   -1. Clear the DTCs with the HDS.

   Clear DTCs

   -2. Turn the vehicle to the OFF (LOCK) mode and then the ON mode.

   -3. Wait for at least 6 seconds.

   -4. Check for DTCs with the HDS.

   DTC Description	DTC
   B2618 Front 1st sensor data failure
   B261B Front 4th sensor data failure

   Is DTC B2618 and/or B261B indicated?

   YES

   Go to step 2.

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

2. DTC check

   -1. Check for DTCs with the HDS.

   DTC Description	DTC
   B2618 Front 1st sensor data failure
   B261B Front 4th sensor data failure
   B2646 Front sensor power failure
   B2648 Front sensor signal short to ground

   Is DTC B2618, B261B, B2646, and/or B2648 indicated?

   YES

   Go to step 3.

   YES

   Go to step  4.

   YES

   Go to parking and back-up sensor system DTC B2646 troubleshooting .

   YES

   Go to parking and back-up sensor system DTC B2648 troubleshooting .

   NO

   Intermittent failure, the system is OK at this time. Check for loose or poor connections.

3. Open wire check (FSG L, FSP L, FSS L lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

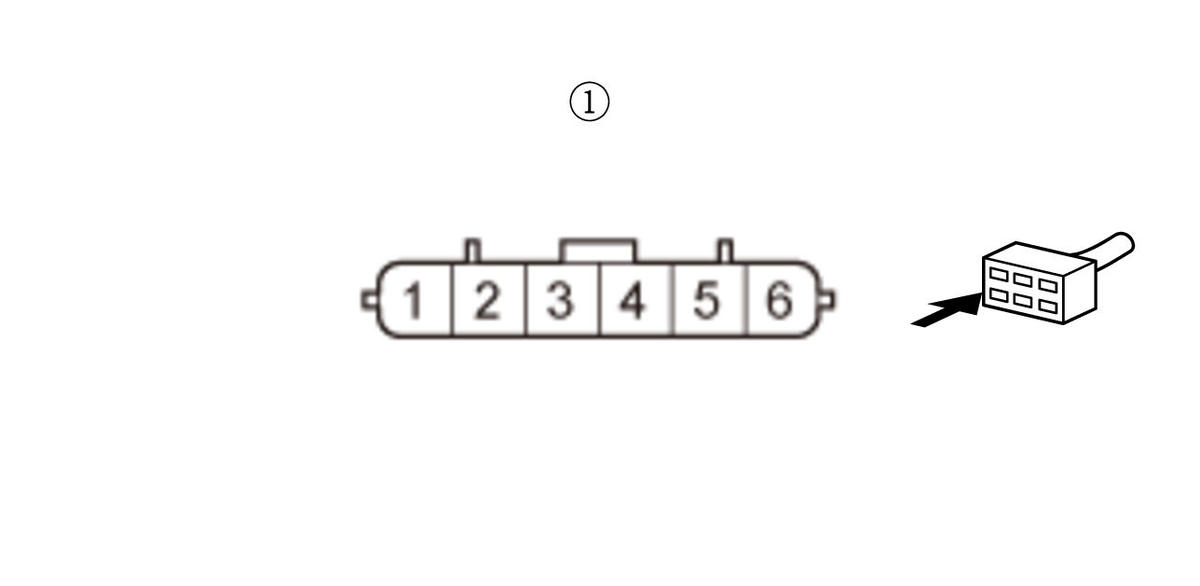

   Parking and back-up sensor control unit 16P connector Left front corner sensor 6P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Parking and back-up sensor control unit 16P connector: disconnected Left front corner sensor 6P connector: disconnected
   Test point 1	Parking and back-up sensor control unit 16P connector No. 13
   Test point 2	Left front corner sensor 6P connector (female terminals) No. 2:

   Test point 1

   Parking and back-up sensor control unit 16P connector No. 7

   Test point 2

   Left front corner sensor 6P connector (female terminals) No. 6:

   Test point 1	Parking and back-up sensor control unit 16P connector No. 6
   Test point 2	Left front corner sensor 6P connector (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the left front corner sensor .

   NO

   Repair an open or high resistance in the wire(s).

4. Open wire check (FSG R, FSP R, FSS R lines)

   -1. Turn the vehicle to the OFF (LOCK) mode.

   -2. Disconnect the following connectors.

   Left front corner sensor 6P connector Right front corner sensor 6P connector

   -3. Check for continuity between test points 1 and 2.

   Test condition	Vehicle OFF (LOCK) mode Left front corner sensor 6P connector: disconnected Right front corner sensor 6P connector: disconnected
   Test point 1	Left front corner sensor 6P connector (female terminals) No. 1:
   Test point 2	Right front corner sensor 6P connector (female terminals) No. 2:

   Test point 1	Left front corner sensor 6P connector (female terminals) No. 5:
   Test point 2	Right front corner sensor 6P connector (female terminals) No. 6:

   Test point 1	Left front corner sensor 6P connector (female terminals) No. 3:
   Test point 2	Right front corner sensor 6P connector (female terminals) No. 4:

   Courtesy of HONDA, U.S.A., INC.

   Courtesy of HONDA, U.S.A., INC.

   Is there continuity?

   YES

   Replace the right front corner sensor .

   NO

   Repair an open or high resistance in the wire(s).
