Fuel Pump Circuit (2019 2020 2021)

If you suspect a problem with the fuel pump, check that the fuel pump actually runs; when it is on, you will hear some noise if you listen to the fuel fill port with the fuel fill cap removed. The fuel pump should run for 2 seconds when the vehicle is turned to ON mode. If the fuel pump does not make noise, check as follows:

  1. Under-dash fuse/relay box internal circuit check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Remove PGM-FI main relay 2. Relay and Control Unit Locations (2019 2020 2021)

    - 3. Turn the vehicle to the ON mode.

    - 4. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
    PGM-FI main relay 2: disconnected
    Test point 1 PGM-FI main relay 2 4P socket (female terminals) No. 3: (1)
    Test point 2 Body ground
    GHH309417Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 3.

    NO

    Go to step 2.

  2. Open wire check (IGP line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Disconnect the following connectors.

    Relay circuit board connector B (16P)

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A Relay circuit board connector B (16P) No. 9
    Terminal B Body ground

    - 4. Check for continuity between test points 1 and 2.

    Test condition

         		 Vehicle OFF (LOCK) mode
    PGM-FI main relay 2: disconnected
    Relay circuit board connector B (16P): jumped to body ground
    Test point 1 PGM-FI main relay 2 4P socket (female terminals) No. 3: (1)
    Test point 2 Body ground
    GHH309418Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    Test the Relay Circuit Board .

    If needed, replace the Relay Circuit Board .

    NO

    Repair an open in the IGP wire between the relay circuit board and PGM-FI main relay 2.

  3. Open wire check (IG1 FUEL PUMP line)

    -1. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
    PGM-FI main relay 2: disconnected
    Test point 1 PGM-FI main relay 2 4P socket (female terminals) No. 2: (1)
    Test point 2 Body ground
    GHH309419Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 4.

    NO

  4. Open wire check (IMOFLR line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Jump the SCS line with the HDS, and wait more than 1 minute.

    - 3. Disconnect the following connector.

    PCM connector A (50P)

    - 4. Connect terminals A and B with a jumper wire.

    Terminal A PGM-FI main relay 2 4P socket (female terminals) No. 4: (1)
    Terminal B Body ground
    GHH309420Courtesy of HONDA, U.S.A., INC.

    - 5. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    PGM-FI main relay 2: disconnected
    PGM-FI main relay 2 4P socket No. 4: jumped to body ground
    PCM connector A (50P): disconnected
    Test point 1 PCM connector A (50P) No. 40 - Go to: PCM Connector for Inputs and Outputs (2019 2020 2021)
    Test point 2 Body ground

    Is there continuity?

    YES

    The IMOFLR wire is OK. Go to step 5.

    NO

    Repair an open in the IMOFLR wire between PGM-FI main relay 2 and the PCM (A40).

  5. Determine possible failure area (PGM-FI main relay 2, others)

    -1. Remove the jumper wire from the PGM-FI main relay 2 4P socket.

    - 2. Reinstall PGM-FI main relay 2.

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A PCM connector A (50P) No. 22 - Go to: PCM Connector for Inputs and Outputs (2019 2020 2021)
    Terminal B Body ground

    - 4. Turn the vehicle to the ON mode.

    - 5. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
    PCM connector A (50P): disconnected
    PCM connector A (50P) terminal No. 22: jumped to body ground
    Test point 1 PCM connector A (50P) No. 40 - Go to: PCM Connector for Inputs and Outputs (2019 2020 2021)
    Test point 2 Body ground

    Is there battery voltage?

    YES

    Go to step 6.

    NO

    Replace PGM-FI main relay 2.

  6. PCM operation check

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Remove PGM-FI main relay 2. Relay and Control Unit Locations (2019 2020 2021)

    - 3. Remove the jumper wire from PCM connector A (50P).

    - 4. Reconnect PCM connector A (50P).

    - 5. Exit the SCS mode with the HDS.

    - 6. Turn the vehicle to the ON mode, and measure the voltage between test points 1 and 2.

    Test condition Within 2 seconds after turning vehicle to ON mode
    PGM-FI main relay 2: disconnected
    Test point 1 PGM-FI main relay 2 4P socket (female terminals) No. 3: (1)
    Test point 2 PGM-FI main relay 2 4P socket (female terminals) No. 4: (1)
    GHH309421Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Check for any authorized service information related to the DTCs or symptoms you are troubleshooting or substitute a known-good PCM - Refer to:

    PCM - Removal and Installation (9-Speed A/T) (2019 2020 2021)

    NO

    Go to step 7.

  7. Determine possible failure area (+B FUEL PUMP line, PGND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Reinstall PGM-FI main relay 2.

    - 3. Disconnect the following connector.

    Fuel tank unit 4P connector

    - 4. Turn the vehicle to the ON mode, and measure the voltage between test points 1 and 2.

    Test condition Within 2 seconds after turning vehicle to ON mode
    Fuel tank unit 4P connector: disconnected
    Test point 1 Fuel tank unit 4P connector (female terminals) No. 1: (1)
    Test point 2 Body ground
    GHH309422Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    Go to step 9.

    NO

    Go to step 8.

  8. Open wire check (+B FUEL PUMP line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Remove PGM-FI main relay 2. Relay and Control Unit Locations (2019 2020 2021)

    - 3. Connect terminals A and B with a jumper wire.

    Terminal A PGM-FI main relay 2 4P socket (female terminals) No. 1: (1)
    Terminal B PGM-FI main relay 2 4P socket (female terminals) No. 2: (1)

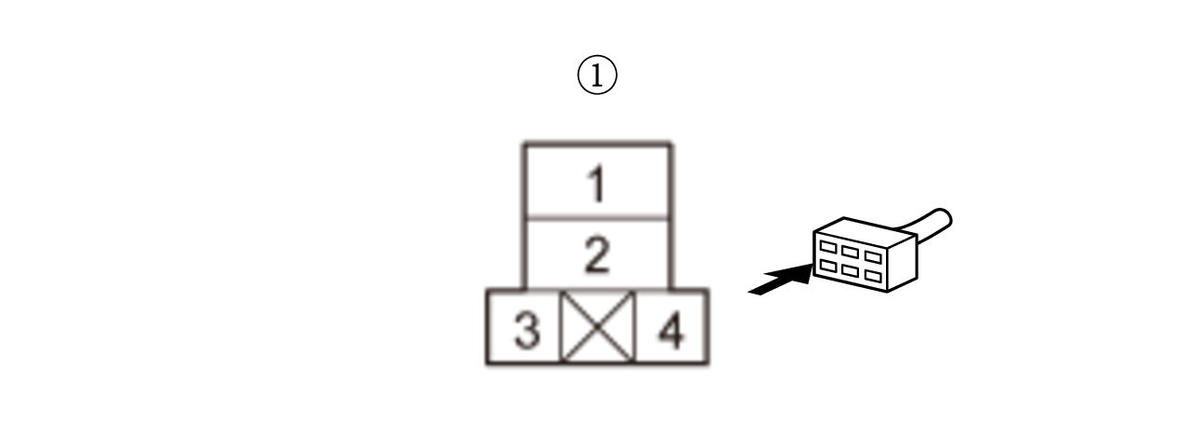

    GHH309423Courtesy of HONDA, U.S.A., INC.

    - 4. Turn the vehicle to the ON mode.

    - 5. Measure the voltage between test points 1 and 2.

    Test condition Vehicle ON mode
    Fuel tank unit 4P connector: disconnected
    PGM-FI main relay 2 : disconnected
    PGM-FI main relay 2 4P socket No. 1 and No. 2: jumped
    Test point 1 Fuel tank unit 4P connector (female terminals) No. 1: (1)
    Test point 2 Body ground

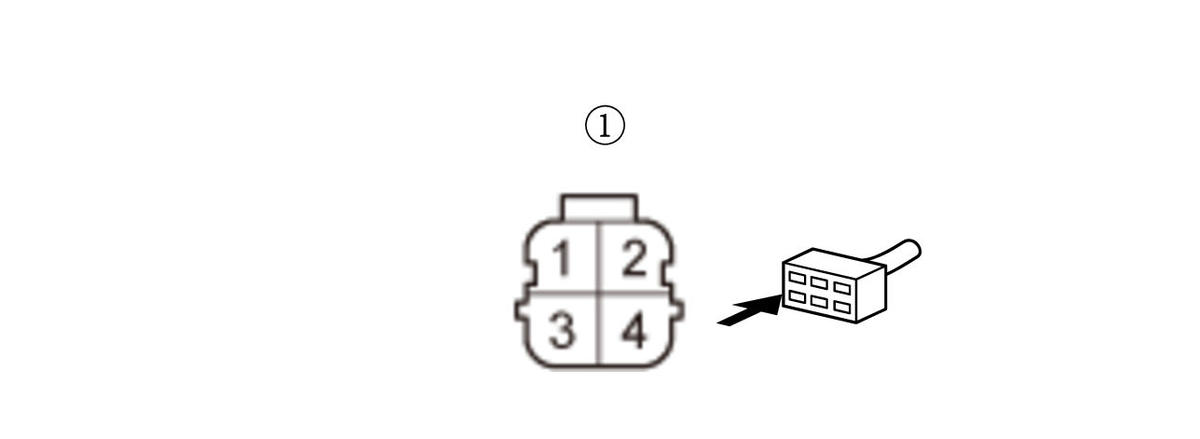

    GHH309424Courtesy of HONDA, U.S.A., INC.

    Is there battery voltage?

    YES

    The +B FUEL PUMP wire is OK. Replace PGM-FI main relay 2.

    NO

    Repair an open in the +B FUEL PUMP wire between PGM-FI main relay and the fuel tank unit.

  9. Open wire check (PGND line)

    -1. Turn the vehicle to the OFF (LOCK) mode.

    - 2. Check for continuity between test points 1 and 2.

    Test condition Vehicle OFF (LOCK) mode
    Fuel tank unit 4P connector: disconnected
    Test point 1 Fuel tank unit 4P connector (female terminals) No. 3: (1)
    Test point 2 Body ground
    GHH309425Courtesy of HONDA, U.S.A., INC.

    Is there continuity?

    YES

    The PGND wire is OK. Replace the fuel pump. Fuel Tank Unit - Removal and Installation .

    NO

    Repair an open in the PGND wire between the fuel tank unit and G602.
