CMBS Off Switch (2016 2017 2018): Test

CMBS OFF Switch - Test

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

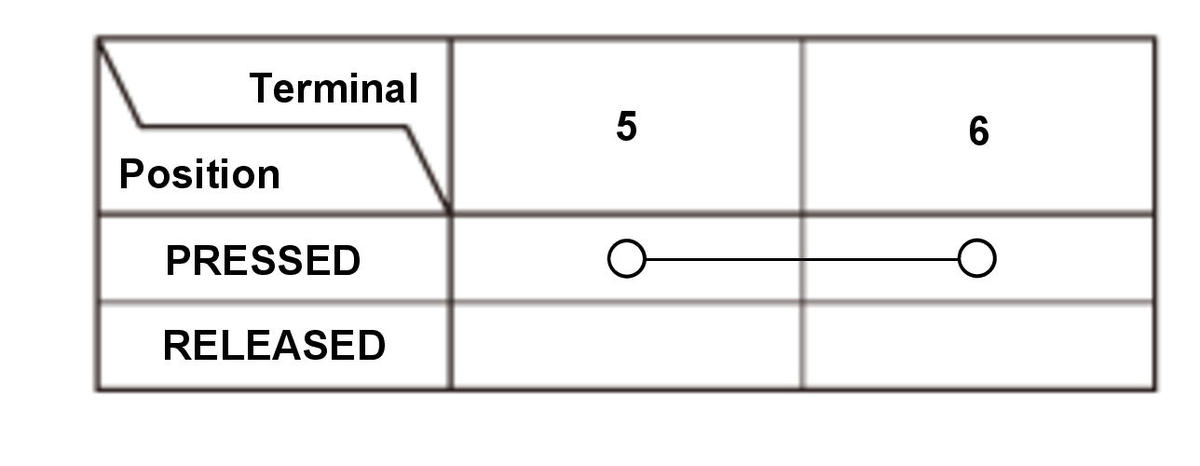

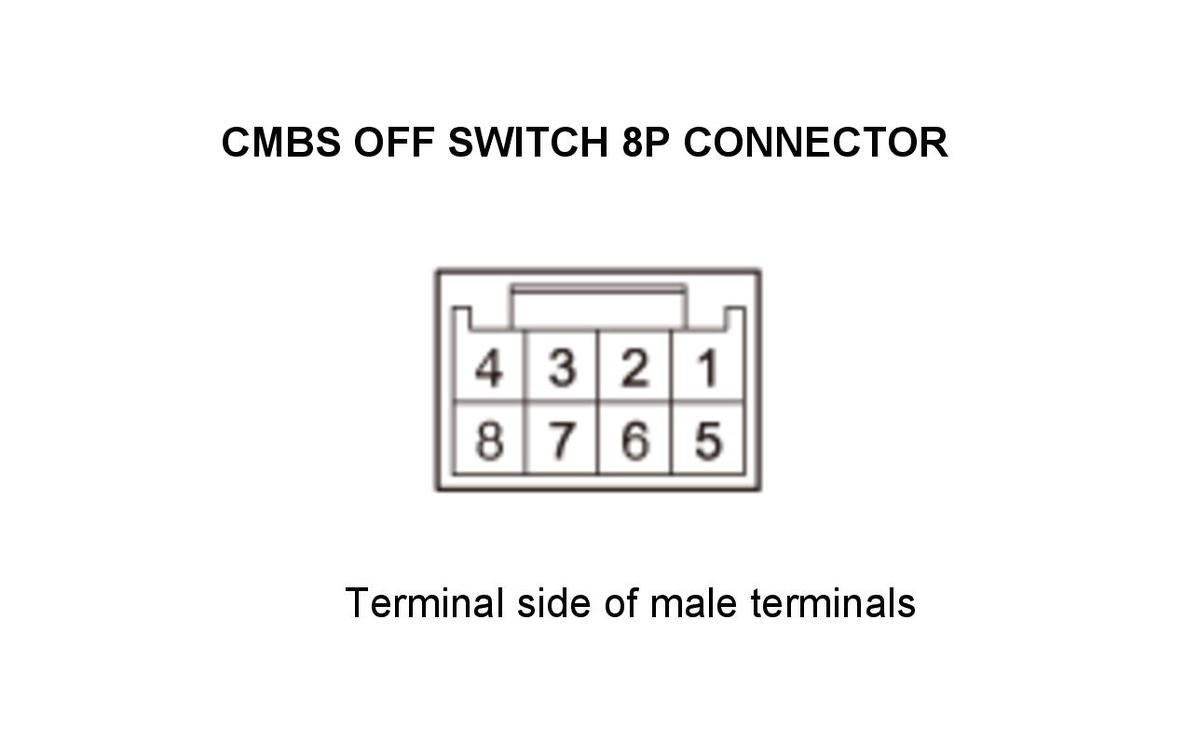

1. On the switch side, check for continuity between the connector terminal in each switch position according to the table.

2. If the switch does not work as described in the table, replace the switch.

Courtesy of HONDA, U.S.A., INC.

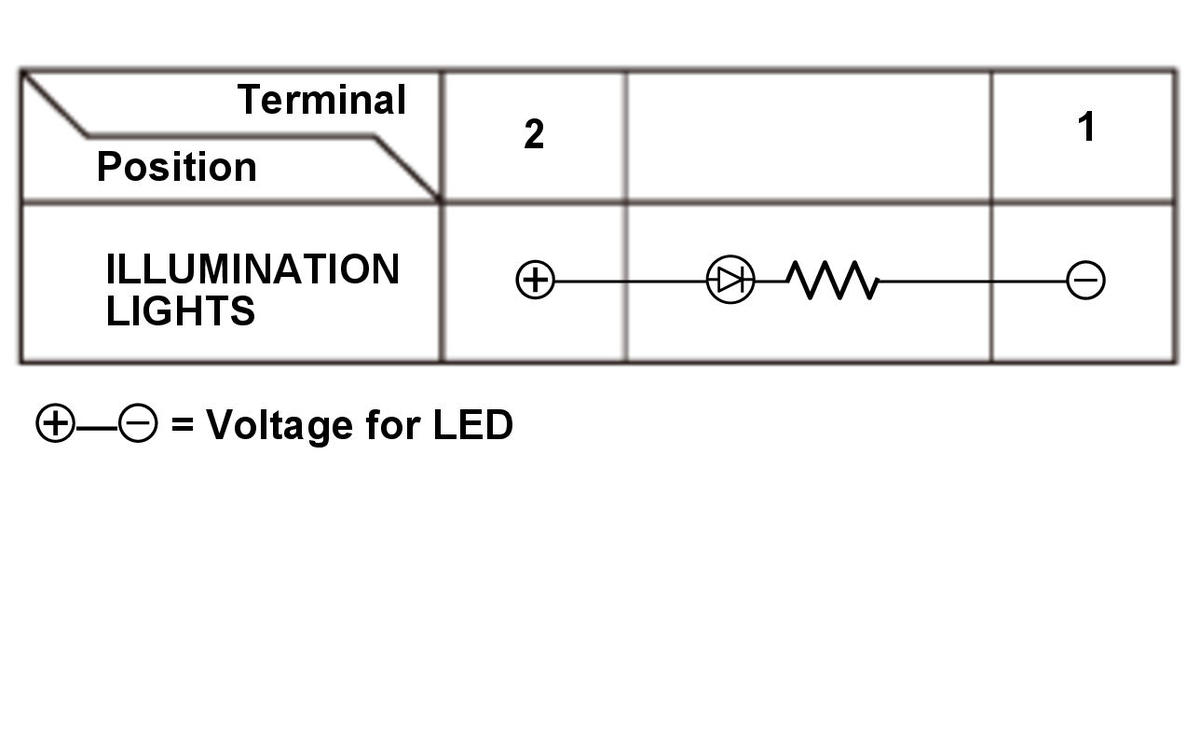

3. Check the LED for illumination by applying power and ground to the terminals according to the table.

NOTE: Important operating characteristic; diode bias cause a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

If the results are not as specified, replace the CMBS OFF switch.
