DTC B2973 (7)
DTC B2973 or DTC indicator 7 : A Short in the Mode Control Motor B Circuit (Front)
If other short circuit DTCs are indicated at the same time, there may be an open or short to body ground in the power (5 V) circuit.
| DTC Description | DTC |
|---|---|
| B2973 A short in the mode control motor B circuit (front) |
DTC (AC)
- Problem verification
- 1. Clear the DTC with the HDS.
- 2. Turn the vehicle to the OFF (LOCK) mode then the ON mode.
- 3. Do the Self-Diagnostic Function with the HDS or the HVAC control unit.
- 4. Wait for at least 8 seconds.
- 5. Check for DTCs.
DTC Description DTC B2973 A short in the mode control motor B circuit (front) Is DTC B2973 or 7 indicated?
YES
Go to step 2.
NO
Intermittent failure. Check for loose wires or poor connections on the mode control motor B circuit.
- Determine possible failure area (SENSOR 5V line, others)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.

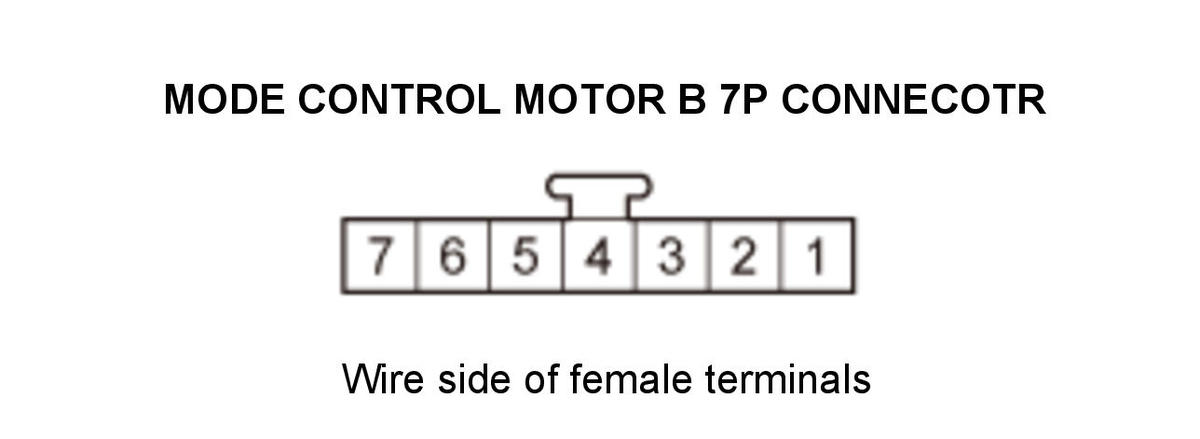

Mode control motor B 7P connector - 3. Turn the vehicle to the ON mode.
- 4. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Mode control motor B 7P connector: disconnected Test point 1 Mode control motor B 7P connector No. 1 Test point 2 Body ground Is there about 5 V?
YES
The SENSOR 5V wire is OK. Go to step 3.
NO
Go to step 6.
- Mode control motor B check (MOD-P HD line)
- 1. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Mode control motor B 7P connector: disconnected Test point 1 Mode control motor B 7P connector No. 2 Test point 2 Body ground Is there about 5 V?
YES
The MOD-P HD wire is OK. Replace the mode control motor B .
NO
Go to step 4.
- Shorted wire check (MOD-P HD line)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.
HVAC control unit connector C (12P) - 3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode HVAC control unit connector C (12P): disconnected Mode control motor B 7P connector: disconnected Test point 1 HVAC control unit connector C (12P) No. 4 Test point 2 Body ground Is there continuity?
YES
Repair a short to body ground in the wire between the HVAC control unit and the mode control motor B.
NO
The MOD-P HD wire is not shorted. Go to step 5.
- Shorted wire check (MOD-P HD line to SENSOR(COM) line)
- 1. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode HVAC control unit connector C (12P): disconnected Mode control motor B 7P connector: disconnected Test point 1 Mode control motor B 7P connector No. 2 Test point 2 Mode control motor B 7P connector No. 3 Is there continuity?
YES
Repair a short in the wires between the HVAC control unit and the mode control motor B.
NO
The MOD-P HD wire to SENSOR(COM) wire are OK. Replace the HVAC control unit .
- Open wire check (SENSOR 5V line)
- 1. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Mode control motor B 7P connector: disconnected Test point 1 HVAC control unit connector A (32P) No. 5 Test point 2 Body ground Is there about 5 V?
YES
Repair an open in the wire between the HVAC control unit and the mode control motor B.
NO
The SENSOR 5V wire is not open. Go to step 7.
- Shorted wire check (SENSOR 5V line)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.
HVAC control unit connector A (32P) - 3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode HVAC control unit connector A (32P): disconnected Mode control motor B 7P connector: disconnected Test point 1 HVAC control unit connector A (32P) No. 5 Test point 2 Body ground Is there continuity?
YES
Repair a short to body ground in the wire between the HVAC control unit and the mode control motor B.
NO
The SENSOR 5V wire is OK. Replace the HVAC control unit .
