DTC B1220 (5)
DTC B1220 or DTC indicator 5 : A Short in the Recirculation Control Motor Circuit
If other short circuit DTCs are indicated at the same time, there may be an open or short to body ground in the power (5 V) circuit.
| DTC Description | DTC |
|---|---|
| B1220 A Short in the recirculation control motor circuit |
DTC (AC)
- Problem verification
- 1. Clear the DTC with the HDS.
- 2. Turn the vehicle to the OFF (LOCK) mode then the ON mode.
- 3. Do the Self-Diagnostic Function with the HDS or the HVAC control unit.
- 4. Wait for at least 8 seconds.
- 5. Check for DTCs.
DTC Description DTC B1220 A short in the recirculation control motor circuit Is DTC B1220 or 5 indicated?
YES
Go to step 2.
NO
Intermittent failure. Check for loose wires or poor connections on the recirculation control motor circuit.
- Determine possible failure area (SENSOR 5V line, others)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.

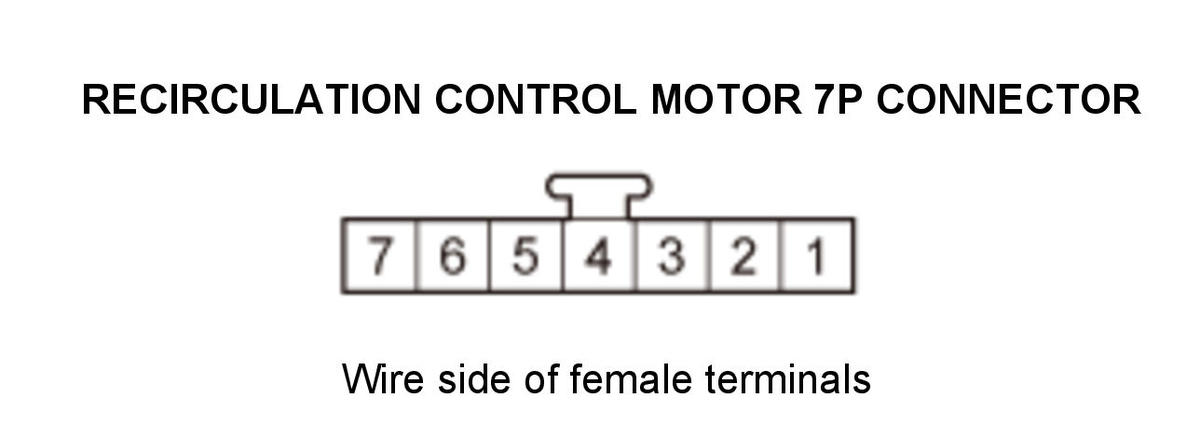

Recirculation control motor 7P connector - 3. Turn the vehicle to the ON mode.
- 4. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Recirculation control motor 7P connector: disconnected Test point 1 Recirculation control motor 7P connector No. 1 Test point 2 Body ground Is there about 5 V?
YES
The SENSOR 5V wire is OK. Go to step 3.
NO
Go to step 6.
- Recirculation control motor check (FRS REC-P line)
- 1. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Recirculation control motor 7P connector: disconnected Test point 1 Recirculation control motor 7P connector No. 2 Test point 2 Body ground Is there about 5 V?
YES
The FRS REC-P wire is OK. Replace the recirculation control motor .
NO
Go to step 4.
- Shorted wire check (FRS REC-P line)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.
HVAC control unit connector C (12P) - 3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode HVAC control unit connector C (12P): disconnected Recirculation control motor 7P connector: disconnected Test point 1 HVAC control unit connector C (12P) No. 5 Test point 2 Body ground Is there continuity?
YES
Repair a short to body ground in the wire between the HVAC control unit and the recirculation control motor.
NO
The FRS REC-P wire is not shorted. Go to step 5.
- Shorted wire check (FRS REC-P line to SENSOR(COM) line)
- 1. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode HVAC control unit connector C (12P): disconnected Recirculation control motor 7P connector: disconnected Test point 1 Recirculation control motor 7P connector No. 2 Test point 2 Recirculation control motor 7P connector No. 3 Is there continuity?
YES
Repair a short in the wires between the HVAC control unit and the recirculation control motor.
NO
The FRS REC-P wire to SENSOR(COM) wire are OK. Replace the HVAC control unit .
- Open wire check (SENSOR 5V line)
- 1. Measure the voltage between test points 1 and 2.
Test condition Vehicle ON mode Recirculation control motor 7P connector: disconnected Test point 1 HVAC control unit connector A (32P) No. 5 Test point 2 Body ground Is there about 5 V?
YES
Repair an open in the wire between the HVAC control unit and the recirculation control motor.
NO
The SENSOR 5V wire is not open. Go to step 7.
- Shorted wire check (SENSOR 5V line)
- 1. Turn the vehicle to the OFF (LOCK) mode.
- 2. Disconnect the following connector.
HVAC control unit connector A (32P) - 3. Check for continuity between test points 1 and 2.
Test condition Vehicle OFF (LOCK) mode HVAC control unit connector A (32P): disconnected Recirculation control motor 7P connector: disconnected Test point 1 HVAC control unit connector A (32P) No. 5 Test point 2 Body ground Is there continuity?
YES
Repair a short to body ground in the wire between the HVAC control unit and the recirculation control motor.
NO
The SENSOR 5V wire is OK. Replace the HVAC control unit .
